ASSEMBLY
A
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Do not remove the long plastic tape inside the
Right Handrail until told to. Note: The underside of the treadmill walking belt is coated with high-performance lu-
bricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the ship-
p
ing carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe
off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

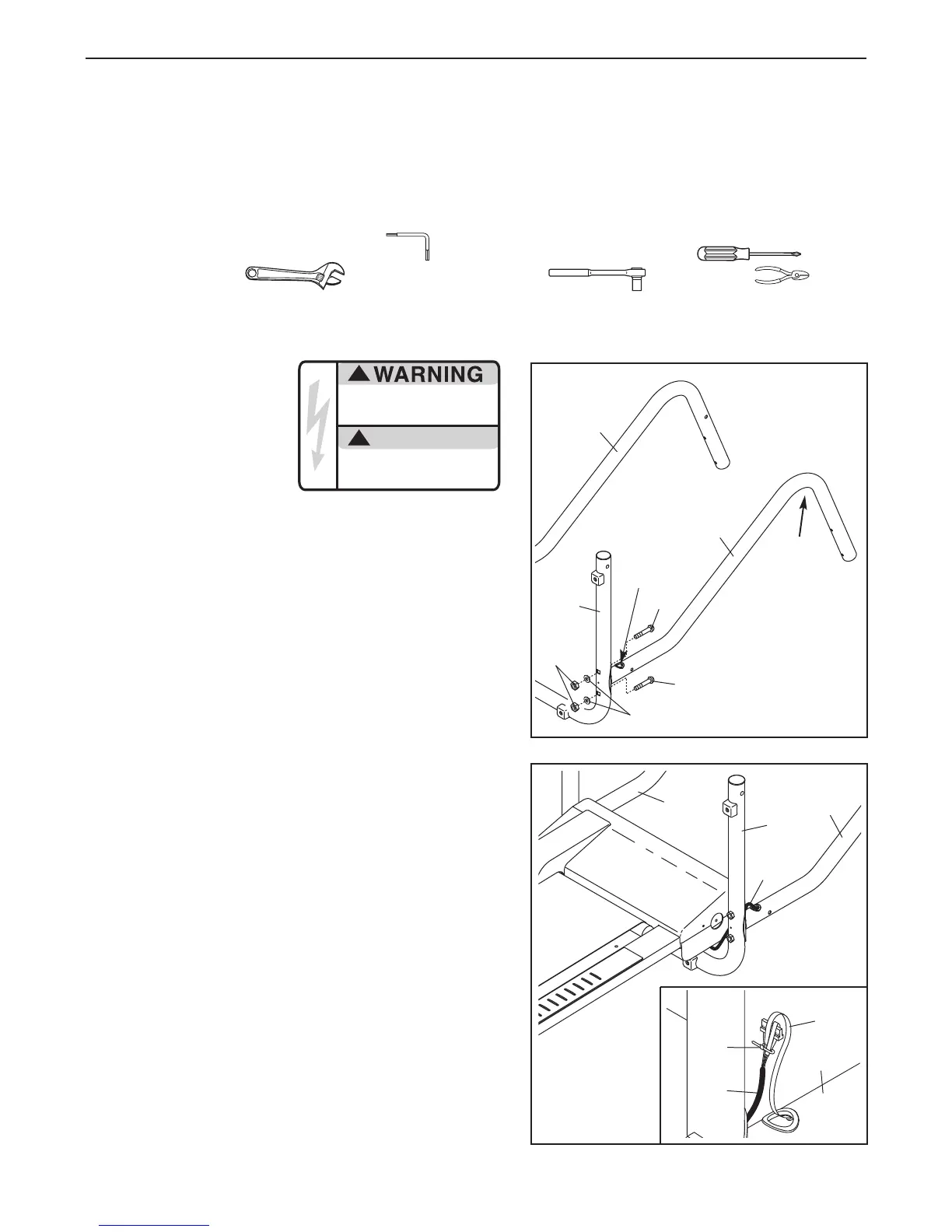

Assembly requires the included allen wrench and your own phillips screwdriver ,
adjustable wrenches , and 9/16” socket wrench , wire cutters .
Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of
this manual.
1. Hold the Base (71) in
the position shown.
Identify the Right
Handrail (6), which has
a large hole near the
lower end. Hold the
Right Handrail with
the bend in the posi-
tion shown.
Using a 9/16” socket wrench and the included allen
wrench, attach the Right Handrail (6) to the Base (71) with
two Handrail Bolts (12), two Formed Washers (31), and
two Nuts (17). Do not tighten the Handrail Nuts yet.
Attach the Left Handrail (7) to the Base (71) in the
same way.
1
31
6
17
Large
Hole
71
12
12
7
Bend
!
!
• Tension Dangereuse
• Risque de Choc Électrique
• Débranchez le tapis roulant Avant
l’Assemblage/Désassemblage
•
Hazardous Voltage
• Risk of Electric Shock
• Unplug Treadmill before
Assembly/ Disassembly
ATTENTION
5
2. Position the treadmill near the Handrails (6, 7) as shown. A
long plastic tape is inside the Right Handrail (6). Secure
the end of the plastic tape to the Wire Harness (22) with
the included plastic tie. Pull on the other end of the tape
to pull the Wire Harness through the Right Handrail and
out of the top.
With the help of a second person, raise the Handrails (6,
7) so that the Base (71) is resting flat on the floor.
7
22
71
6
2
22
6
Tie
Tape
To Next Page
