9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the
floor or carpet, place a mat under the treadmill.

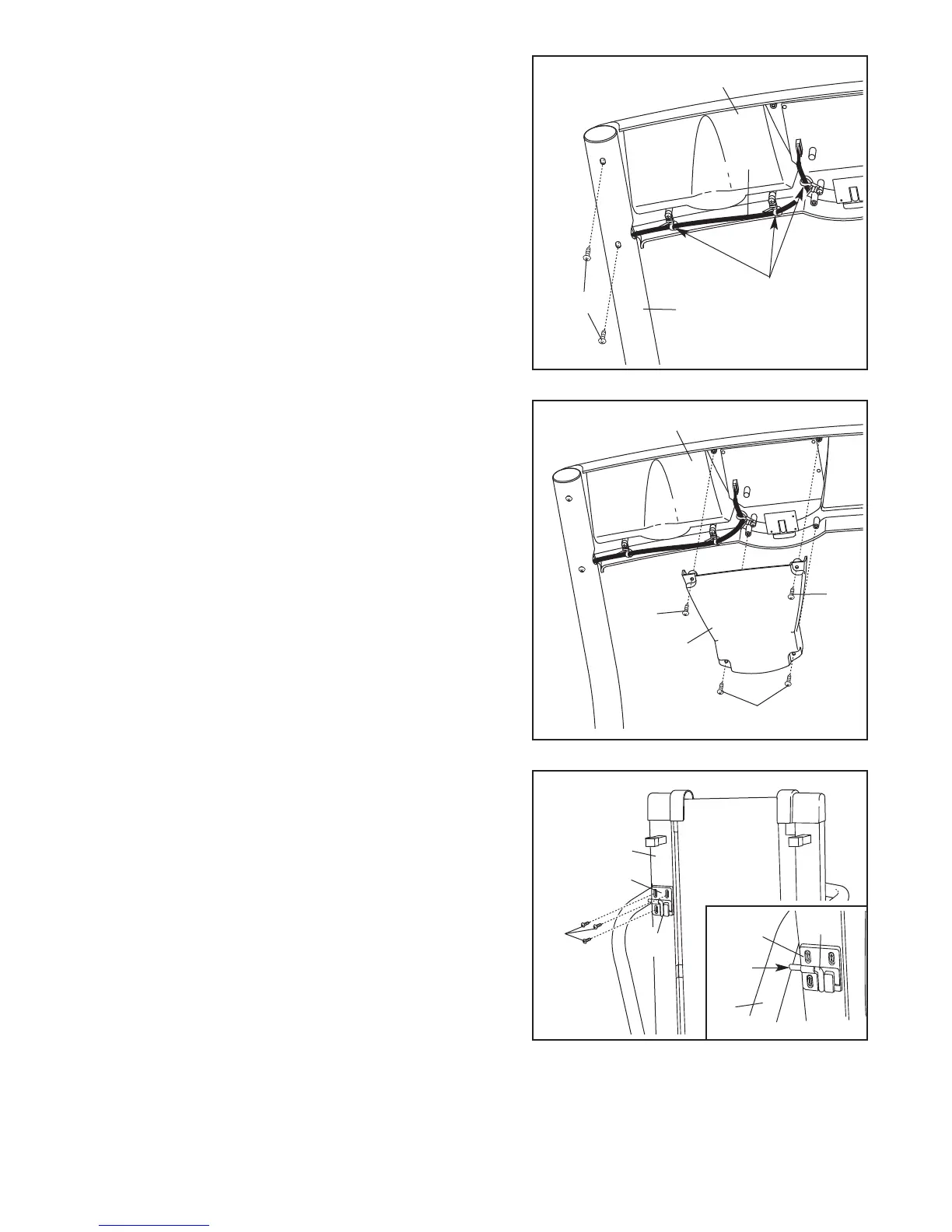

8. Have a second person raise the Frame to the vertical po-
sition (55). Make sure that the Latch Pin (69) is in the
Storage Latch (41) as shown. Attach the Storage Latch to
the Frame (55) with three Latch Screws (73). Do not
tighten the Screws yet.
See the inset drawing. Position the Storage Latch (69) so
the Latch Pin (69) is aligned with the hole in the Left
Handrail (7). Slide the Latch Pin into the hole, as shown.
Tighten the three Latch Screws (73).
Lower the Frame (55). (See HOW TO LOWER THE
TREADMILL FOR USE on page 11.)
41
55
73
41
Hole
69
7
69
7. Attach the Console Back (4) to the Console (1) with four
Console Back Screws (58). Make sure that no wires are
pinched.
See step 1. Tighten the four Nuts (17).
1
58
4
58
58
6. Set the Console (1) on the Right Handrail (6) and the Left
Handrail (not shown). Start four Console Screws (70)
(only two are shown) into the Console. After you have
s
tarted all four Console Screws, tighten them.
I
nsert the excess Wire Harness (22) down into the Right
Handrail (6). Tighten the three plastic ties around the Wire
Harness, and then cut off the ends of the plastic ties.
22
Plastic
Ties
1
6
70
6
7
8
