Weslo CADENCE LX 15 User Manual

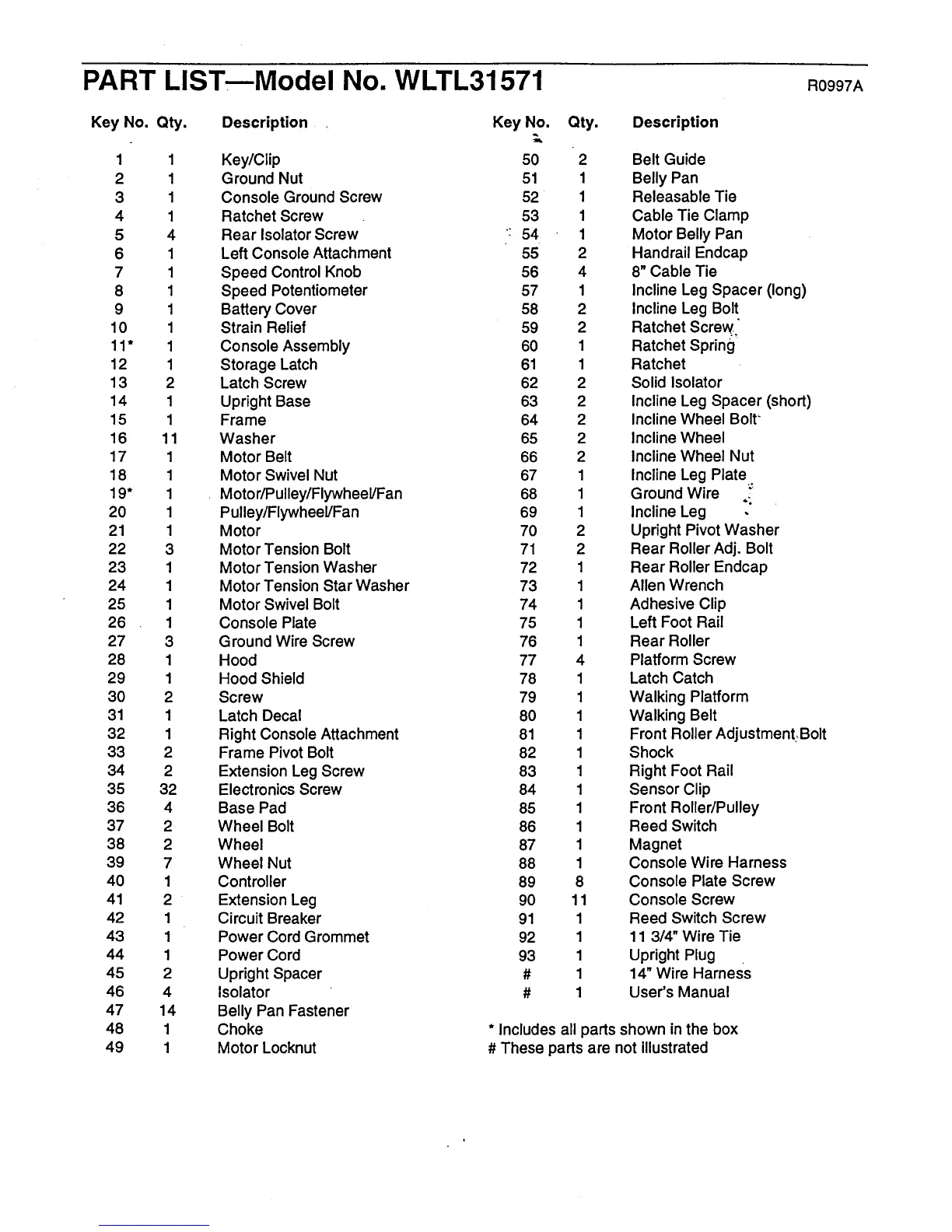

PART LISTmModel No. WLTL31571 R0997A
Key No. Qty. Description . Key No.
1 1 Key/Clip 50
2 1 Ground Nut 51
3 1 Console Ground Screw 52
4 1 Ratchet Screw 53
5 4 Rear Isolator Screw : 54
6 1 Left Console Attachment 55
7 1 Speed Control Knob 56
8 1 Speed Potentiometer 57
9 1 Battery Cover 58
10 1 Strain Relief 59
11* 1 Console Assembly 60
12 1 Storage Latch 61
13 2 Latch Screw 62
14 1 Upright Base 63
15 1 Frame 64
16 11 Washer 65
17 1 Motor Belt 66
18 1 Motor Swivel Nut 67
19* 1 . Motor/Pulley/FlywheeVFan 68
20 1 Pulley/Flywheel/Fan 69
21 1 Motor 70
22 3 Motor Tension Bolt 71
23 1 Motor Tension Washer 72
24 1 Motor Tension Star Washer 73
25 1 Motor Swivel Bolt 74
26 1 Console Plate 75
27 3 Ground Wire Screw 76
28 1 Hood 77
29 1 Hood Shield 78
30 2 Screw 79
31 1 Latch Decal 80
32 1 Right Console Attachment 81
33 2 Frame Pivot Bolt 82
34 2 Extension Leg Screw 83
35 32 Electronics Screw 84
36 4 Base Pad 85
37 2 Wheel Bolt 86
38 2 Wheel 87
39 7 Wheel Nut 88
40 1 Controller 89
41 2 Extension Leg 90
42 1 Circuit Breaker 91
43 1 Power Cord Grommet 92
44 1 Power Cord 93
45 2 Upright Spacer #
46 4 Isolator #
47 14 Belly Pan Fastener
48 1 Choke
49 1 Motor Locknut
Qty.
2
1
1
1
1
2
4
1
2
2
1
1
2
2
2
2
2
1
1
1
2
2
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
8
11
1
1
1
1
1
Description
Belt Guide
Belly Pan
Releasable Tie
Cable Tie Clamp
Motor Belly Pan
Handrail Endcap
8" Cable Tie
Incline Leg Spacer (long)
Incline Leg Bolt
Ratchet Screw._
Ratchet Spring
Ratchet
Solid Isolator
Incline Leg Spacer (short)
Incline Wheel Bolt'
Incline Wheel
Incline Wheel Nut
Incline Leg Plate
Ground Wire .:
Incline Leg
Upright Pivot Washer
Rear Roller Adj. Bolt
Rear Roller Endcap
Allen Wrench
Adhesive Clip
Left Foot Rail
Rear Roller
Platform Screw
Latch Catch
Walking Platform
Walking Belt
Front Roller AdjustmentBolt
Shock
Right Foot Rail
Sensor Clip
Front Roller/Pulley
Reed Switch
Magnet
Console Wire Harness
Console Plate Screw
Console Screw
Reed Switch Screw
11 3/4" Wire Tie
Upright Plug
14" Wire Harness
User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
