ASSEMBLY
A
ssembly requires two persons.
S
et the treadmill in a cleared area and remove all packing materials;
d
o not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
In addition to the included hex key , assembly requires a phillips screwdriver , a
spanner , and wire cutters .
Note: To identify small parts during assembly, see the PART IDENTIFICATION CHART in the center of this
manual. Some parts may be preassembled.

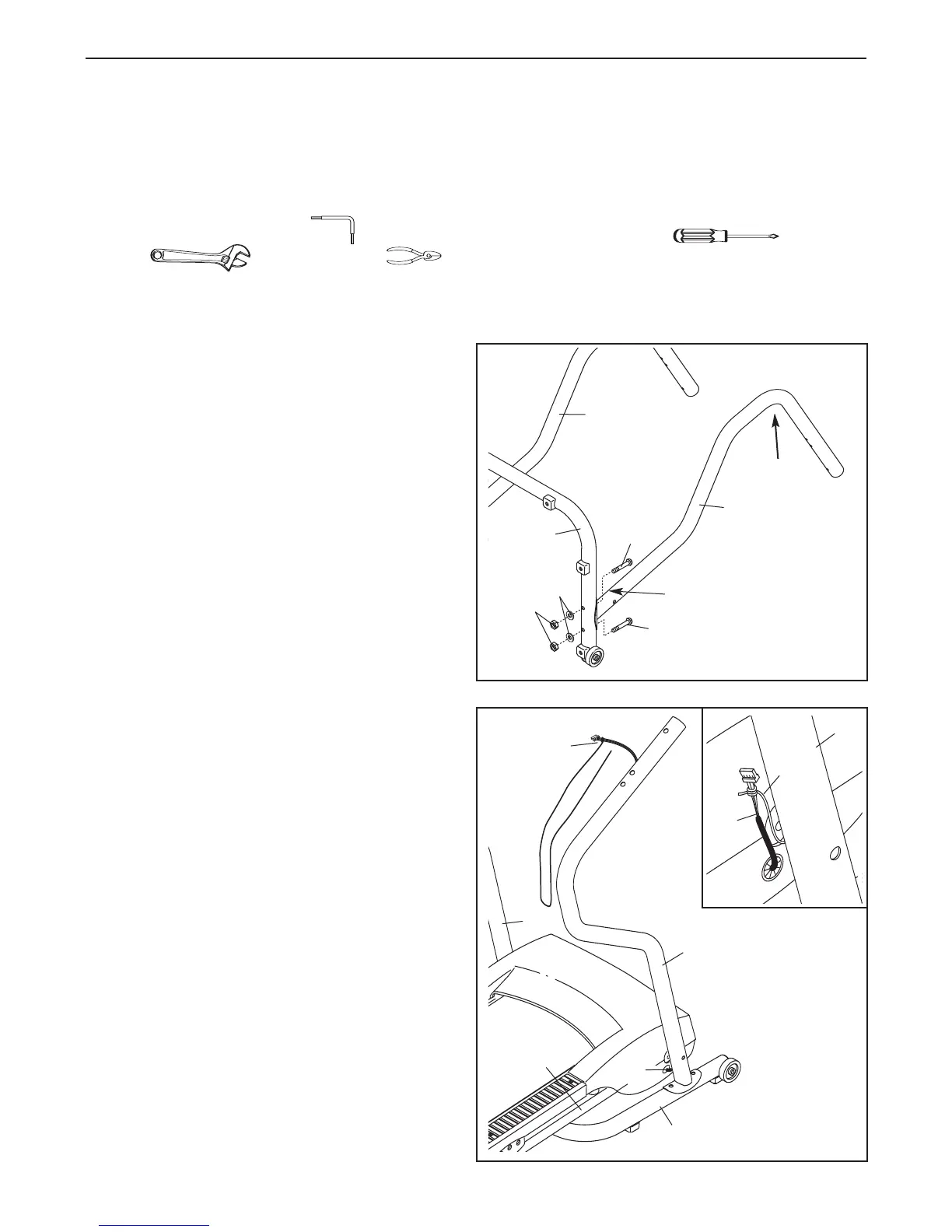

1. Make sure that the power cord is unplugged.
Have a second person hold the Base (52) in the
position shown.
Identify the Right Handrail (54), which has a large
hole near the lower end.
Hold the Right Handrail
so the bend is in the position shown. Attach
the Right Handrail to the Base (52) with two
Handrail Bolts (2), two Handrail Washers (14) and
two Nuts (16). Do not tighten the Handrail Bolts
yet.
Attach the Left Handrail (53) to the Base (52)
in the same way.
1
54
16
Large
Hole
52
2
2
14
53
Bend
2. With the help of a second person, raise the
Handrails (53, 54) so the Base (52) is flat on the
floor as shown.
Position the front end of the treadmill Frame (51)
between the Handrails (53, 54) as shown. Next,
locate the long wire inside the lower end of the
Right Handrail (see the inset drawing). Securely
tie the end of the wire to the end of the Wire
Harness (98).
Then, pull the opposite end of the wire until the
Wire Harness (98) is extending from the upper
end of the Right Handrail (54).
2
52
54
51
53
98
98
54
Wire
98
