7. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.
6
28
33
32
34
4
62
59
59
28
28
60
5
23
Batteries

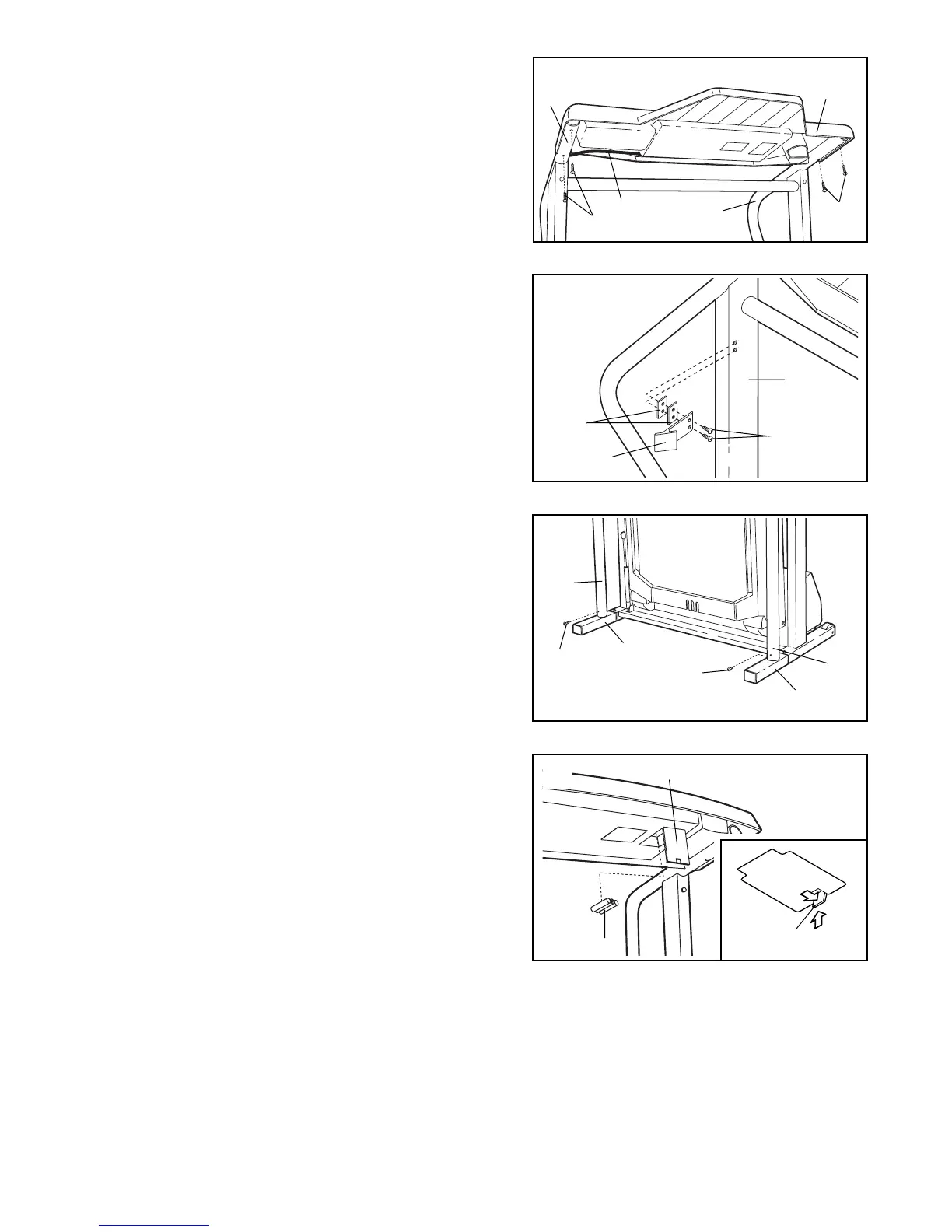

4. Attach the Storage Latch (34) and the two Latch
Spacers (33) to the left Upright (32) with two Screws
(28). Be careful not to overtighten the Screws.
Note: If it is difficult to fold or lower the treadmill, re-
move one or both of the Latch Spacers (33).
Fold the treadmill to the storage position (see HOW TO
FOLD THE TREADMILL FOR STORAGE on page 10).
5. Attach the lower end of the Right Handrail (62) to the
right Extension Leg (59) with a Screw (28).
Attach the lower end of the Left Handrail (60) in the
same way.
Tighten all parts used in this step and in step 2.
6. The console requires two or three "AA" batteries (not in-
cluded). Alkaline batteries are recommended. To install
batteries, first touch the Handrail (6) to discharge any
static. Next, open the Battery Cover (23). Press the bat-
teries into the battery compartment, with the negative (Ð)
ends of the batteries touching the springs. Close the
battery cover, push up on the tab, and then push the tab
forward as shown in the inset drawing. Be sure that the
tab locks into place.
6
3. Set the Console Base (46) on the Handrails (60, 62).
Route the Wire Harness (35) under the Console Base
as shown and then press the Wire Harness up into the
Console Base. Insert any slack into the Right Handrail
(62).
Attach the Console Base (46) to the Handrails (60, 62)
with the four Long Console Screws (24).
35
62
60
46
24
24
3
Battery
Cover Tab
