6. Refer to HOW TO FOLD THE TREADMILL FOR
STORAGE on page 11. Follow the instructions in step 2
to fold the treadmill.
Attach the lower end of the Right Handrail (62) to the
right Extension Leg (59) with a Screw (33). Attach the
lower end of the Left Handrail (60) in the same way.
Tighten all parts used in steps 3, 4, 5 and 6.
7. Remove the backing from the Adhesive Clip (101).
Press the Adhesive Clip onto the base of the right
Upright (32) as shown. Press the Allen Wrench (102)
into the Adhesive Clip.
7
5. Make sure that the Console Base (46) is on the
Handrails (60, 62). Route the Console Wire Harness
(90) along the Console Base as shown. Then, insert
any slack into the Right Handrail (62).
Attach the Console Base (46) to the Handrails (60, 62)
with four Long Screws (79).
90
62
60
46
79
79
5
8. Make sure that all parts are tightened before you
use the treadmill. To protect the floor or carpet, place
a mat under the treadmill.

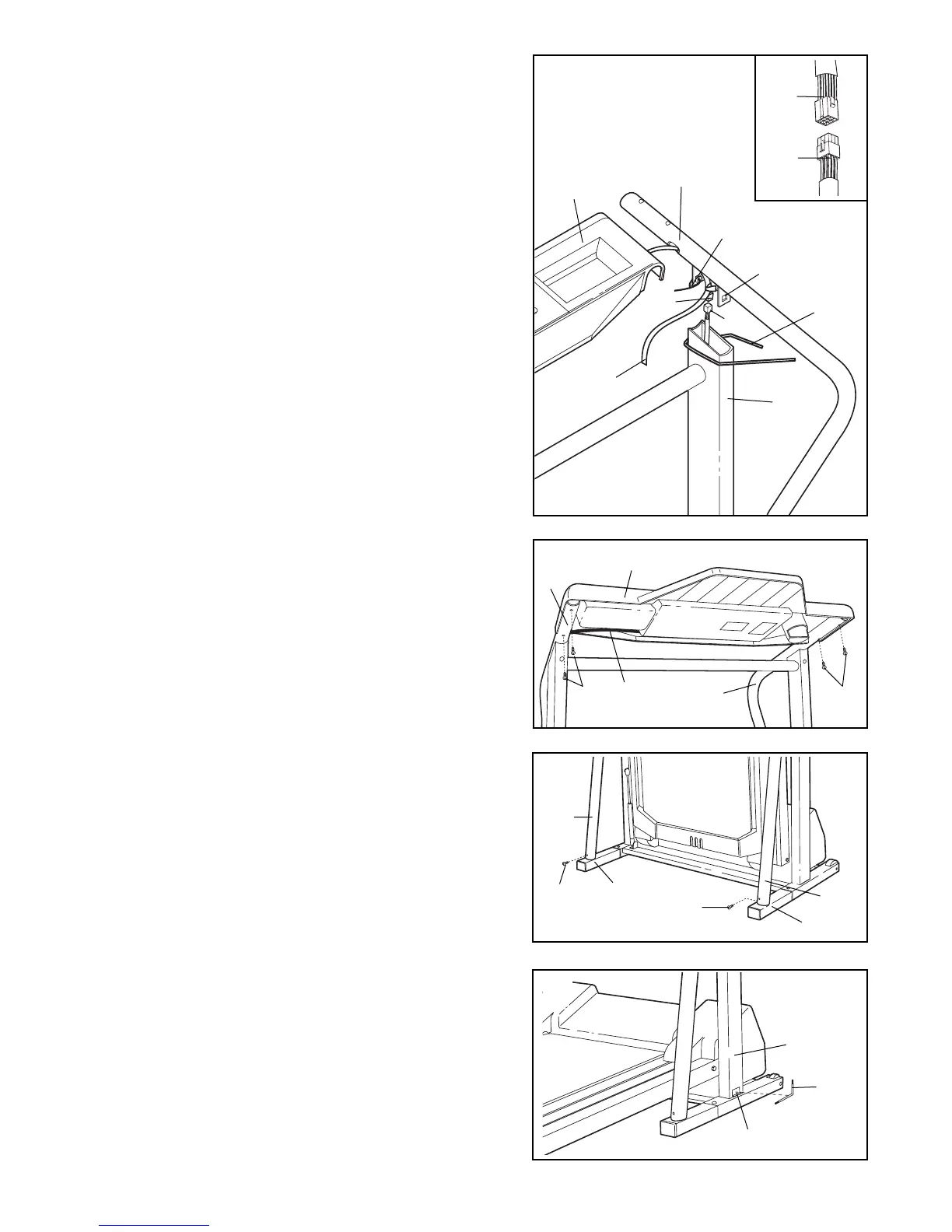

4. Cut the indicated plastic tie from the Right Handrail (62).
Next, feed the large wire tie and the Console Wire
Harness (90) into the Right Handrail and out through the
indicated bracket. Pull as much of the Console Wire
Harness through the Right Handrail as possible. Note: It
may be helpful to turn the Console over on a flat surface
as you do this.
Next, rest the left side of the Console Base (46) on the
Left Handrail (not shown). While a second person holds
the Console Base and the Right Handrail (62) in the posi-
tion shown, cut the plastic tie holding the Wire Harness
(35) in the right Upright (32). Note: Be careful not to
drop the Wire Harness into the right Upright.
Next, connect the Wire Harness (35) to the Console Wire
Harness (90) (refer to the inset drawing). The latch on the
Wire Harness should snap onto the Console Wire
Harness. If the Wire Harnesses do not fit together eas-
ily, turn them; do not force them together. Remove the
large wire tie from the Console Wire Harness (90) and in-
sert the slack Wire Harness into the Right Upright (32).
Refer to step 3 on page 5 and attach the Right Handrail
(62) as described. Be careful to avoid damaging the
wires in the Right Handrail.
62
90
46
35
32
Bracket
Plastic
Tie
Plastic
Tie
Wire
Tie
4
90
35
