8
10. Make sure that all parts of the elliptical glider are properly tightened. Place a mat under the elliptical glider
to protect the floor or carpet from damage.
9
57
5
47
Console
Wire
28
29
2

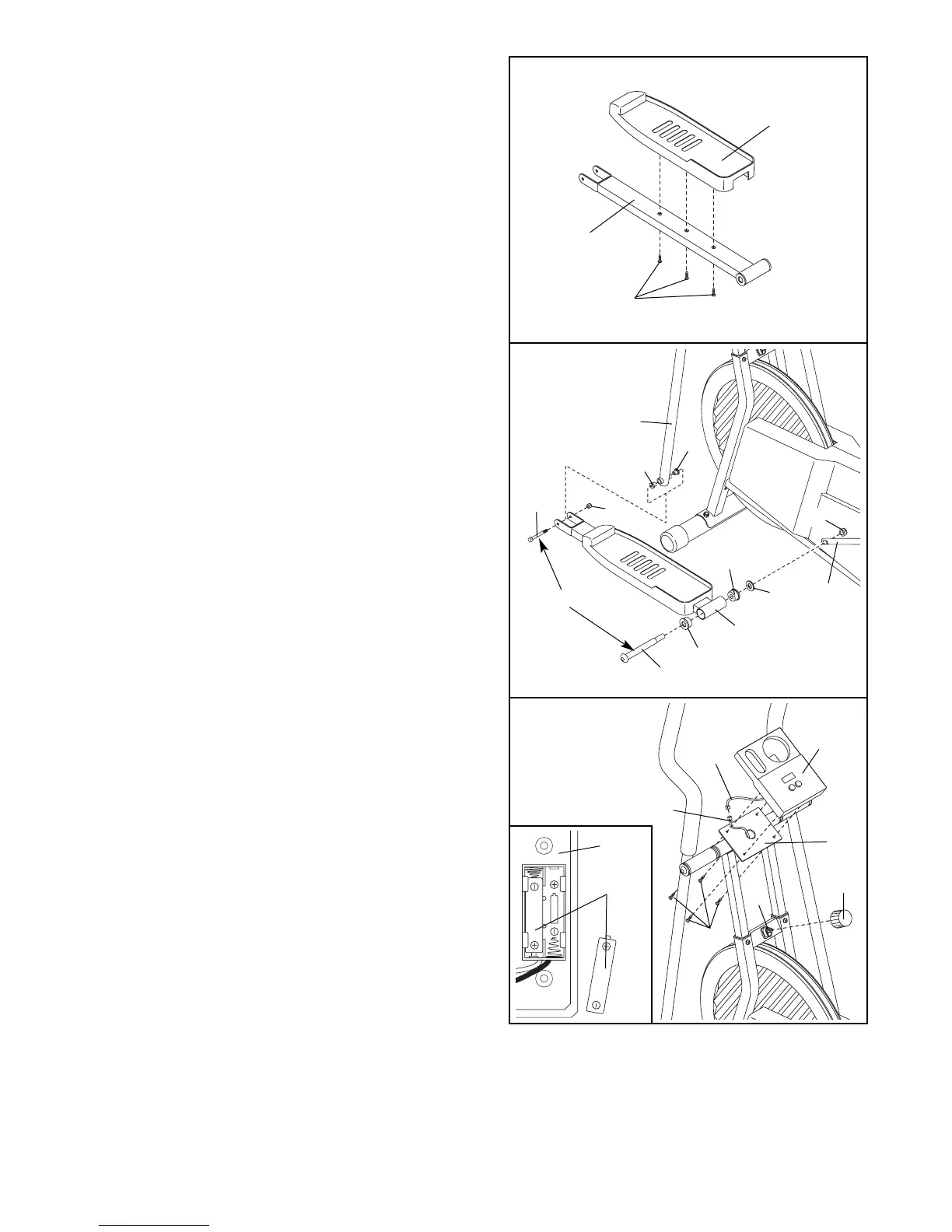

9. The Console (5) requires two 1,5V “AA” batteries (not
included). Alkaline batteries are recommended.
To install batteries, look under the Console and locate
the battery compartment. Insert two batteries into the
battery compartment; make sure that the batteries
are turned so the negative ends (marked “–”) are
touching the springs in the battery compartment.
Connect the console wire to the Extension Wire (47).
Attach the Console (5) to the Upright (2) with four M4
x 12mm Button Screws (57).
Push the Resistance Knob (28) firmly onto the
Resistance Cable (29).
8. Identify the Left Pedal Arm (14), which is marked with
a sticker that has an “L” on it. Make sure that there are
two Pedal Arm Bushing (33) in the Left Pedal Arm.
Apply a thin film of the included grease to a Pedal
Axle (34). Insert the Pedal Axle into the Left Pedal
Arm, and slide a Pedal Washer (32) onto the Pedal
Axle. Firmly tighten the Pedal Axle into the Crank (30).
Tighten a 1/2” Nylon Locknut (35) onto the end of the
Pedal Axle protruding from the Crank.
Make sure that there are two Small Pivot Bushing
(42) in the Left Pivot Arm (6). Apply a thin film of the
included grease to an M8 x 60mm Bolt (56). Attach
the Left Pivot Arm to the Left Pedal Arm (14) with the
Bolt and an M8 Nylon Locknut (50).
Attach the Right Pedal Arm (not shown) in the same
manner.
8
7. Identify the Left Pedal Arm (14), which is marked with
a sticker that has an “L” on it. Next, identify the Left
Pedal (16), which has an “L” molded into the bottom.
Attach the Left Pedal to the Left Pedal Arm with three
M4 x 19mm Flange Screws (55).
Attach the Right Pedal to the Right Pedal Arm (not
shown) in the same manner.
7
34
33
33
35
42
42
50
56
14
14
55
16
32
30
6
Batteries
5
Grease
To Next Page
