8

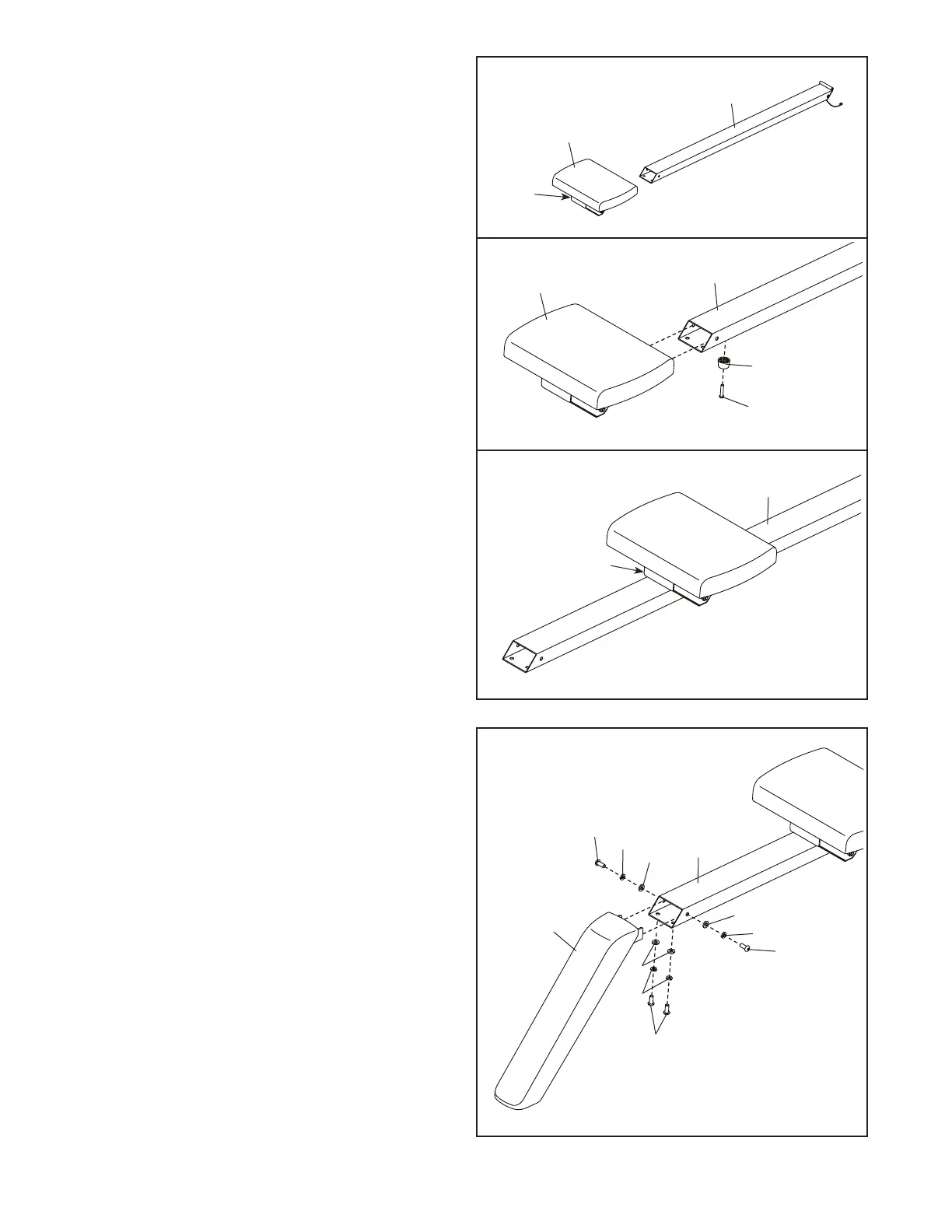

3. See the upper drawing. Orient the Rail (4) and
the Seat (5) with the Seat Knob (23) on the side
shown.
See the middle drawing. Slide the Seat (5) onto
the Rail (4). Then, attach the Bumper (6) to the
Rail with an M6 x 16mm Screw (7).
See the lower drawing. Tighten the Seat Knob
(23) into one of the adjustment holes in the
Rail (4).
4
4
4
6
7
5
5
23
23
3
4. Attach the Leg (8) to the Rail (4) with four
M8 x 20mm Screws (9), four M8 Split Washers
(25), and four M8 Washers (24); start all the
Screws, and then tighten them.
4
M8 Split
Washer (A)
M8 Washer
(24)
4
9
9
9
24
24
24
25
25
25
8
To Next Page
