8
50
27

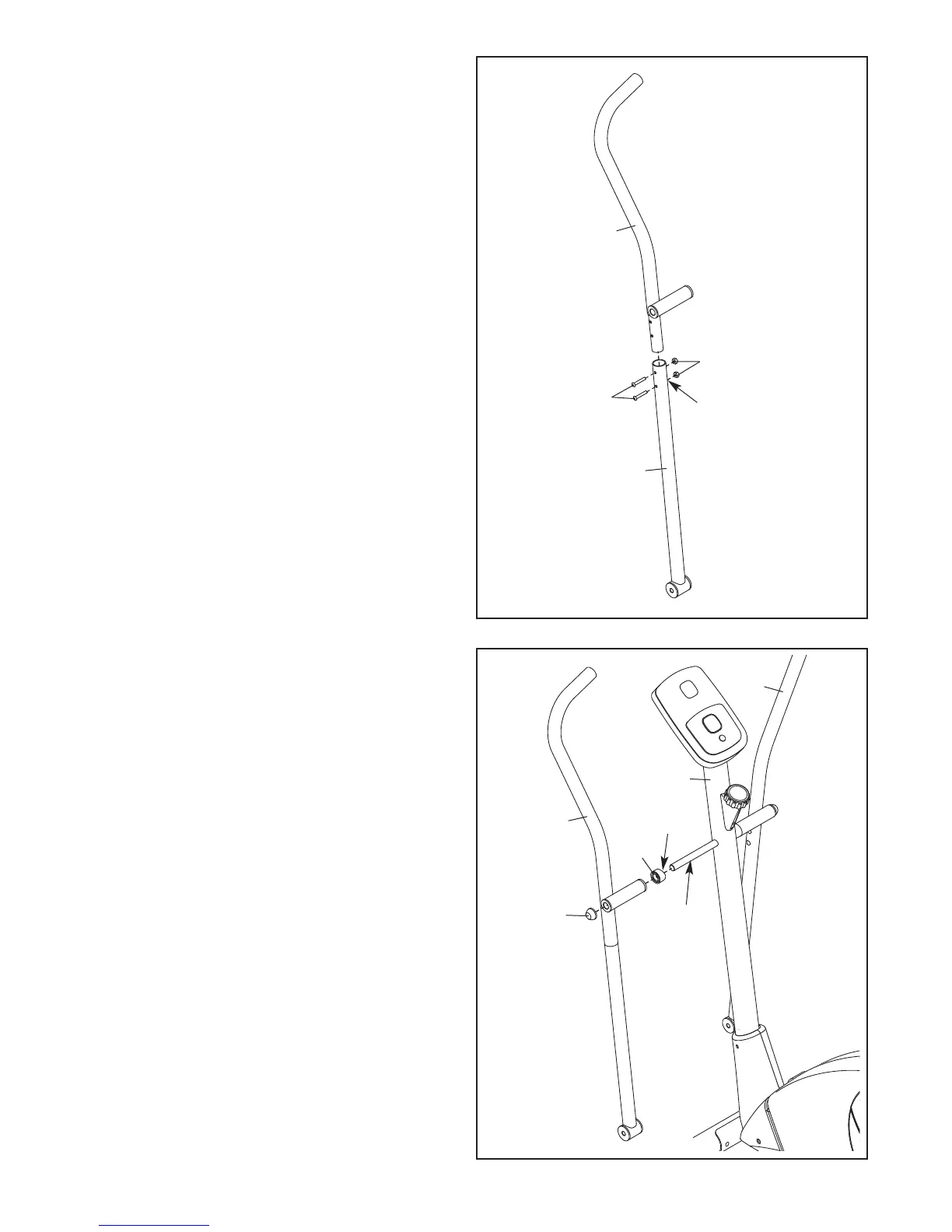

6. Identify the Left Upper Body Arm (6), which is
marked with a “Left” sticker.
Insert the Left Upper Body Arm (6) into an
Upper Body Leg (5); make sure that the
h
exagonal holes are in the indicated
location.
Attach the Left Upper Body Arm (6) to the Upper
Body Leg (5) with two M6 x 38mm Button Bolts
(50) and two M6 Locknuts (27). Make sure that
the Locknuts are inside the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Repeat this step for the Right Upper Body
Arm (not shown) and the other Upper Body
Leg (not shown).
7. Apply some of the included grease to the axle
on the left side of the Upright (2).
Slide an Arm Spacer (47) and the Left Upper
Body Arm (6) onto the left side of the Upright
(2). Make sure that curved side of the Arm
Spacer is facing the Upright.
Then, press an Axle Cap (14) onto the end of
the axle.
Repeat this step for the Right Upper Body
Arm (8).
6
5
6
Hexagonal
Holes
8
Curved
Side
Grease
7
47
14
2
6
To Next Page
