9
10. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.

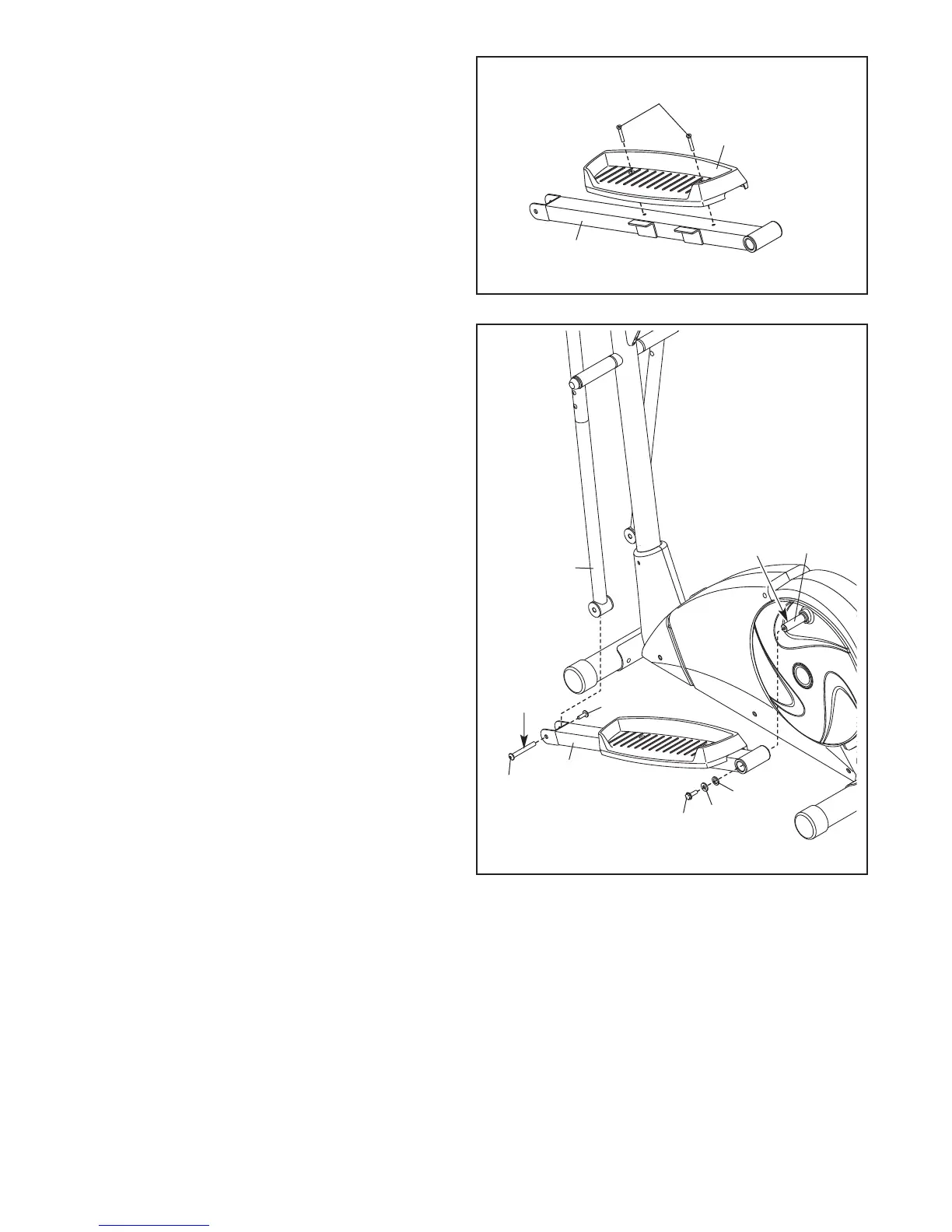

9. Apply grease to the axle on the left Disc
Crossbar (16) and to a Pedal Arm Bolt Set (40).
Slide the Left Pedal Arm (11) and a Wave
Washer (59) onto left Disc Crossbar (16).
Next, tighten an M10 x 25mm Patch Screw (22),
and an M10 Washer (35) into the axle.
Then, hold the lower end of the left Upper Body
Leg (5) inside the bracket on the Left Pedal Arm
(11).
Attach the Left Pedal Arm (11) to the left Upper
Body Leg (5) with the Pedal Arm Bolt Set (40).
Do not overtighten the Bolt Set; the Upper
Body Leg must pivot freely.
Repeat this step on the other side of the
elliptical.
See step 5. Tighten the M10 x 15mm Patch
Screws (48) and the M10 Locknut (33).
See step 6. Tighten the M6 x 38mm Button
Bolts (50).
Grease
Grease
22
35
11
5
9
16
40
40
59
8
36
11
13
8. Identify the Left Pedal Arm (11), which is
marked with a “Left” sticker.
A
ttach a Pedal (13) to the Left Pedal Arm (11)
with two M6 x 45mm Flat Head Screws (36).
Repeat this step for the other Pedal (not
shown) and the Right Pedal Arm (not
shown).
