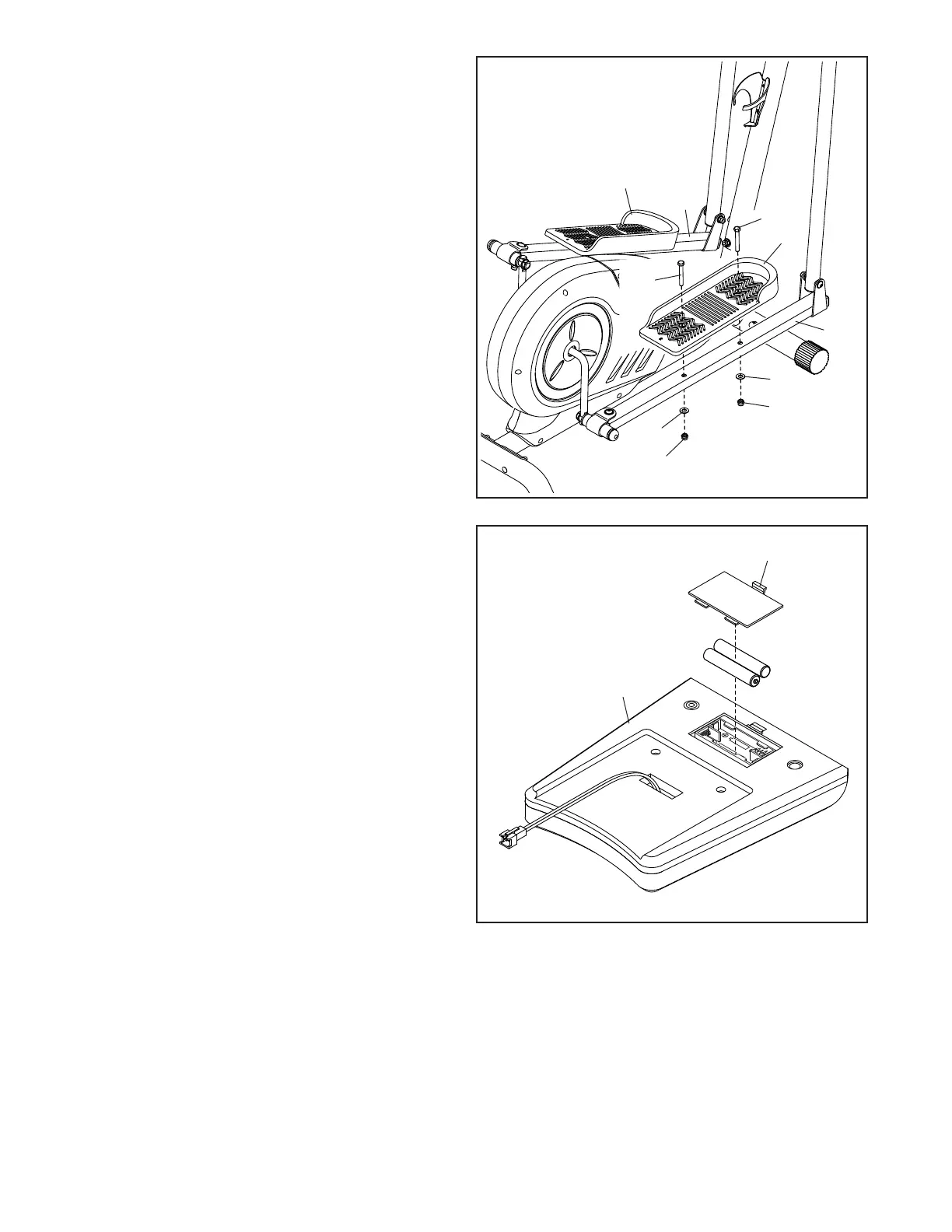

11. Orient the Right Pedal (33) as shown, and
attach it to the Right Pedal Arm (15) with two
M10 x 45mm Bolts (76), two M10 Washers (72),
and two M10 Locknuts (83); start both Bolts,
and then tighten the Locknuts.
Attach the Left Pedal (32) to the Left Pedal
Arm (14) in the same way.
15
12
12. The Console (5) can use two AAA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console displays or other electronic
components.
Remove the battery cover (B) from the back of
the Console (5), and insert batteries into the
battery compartment; make sure to orient the
batteries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
5
B
