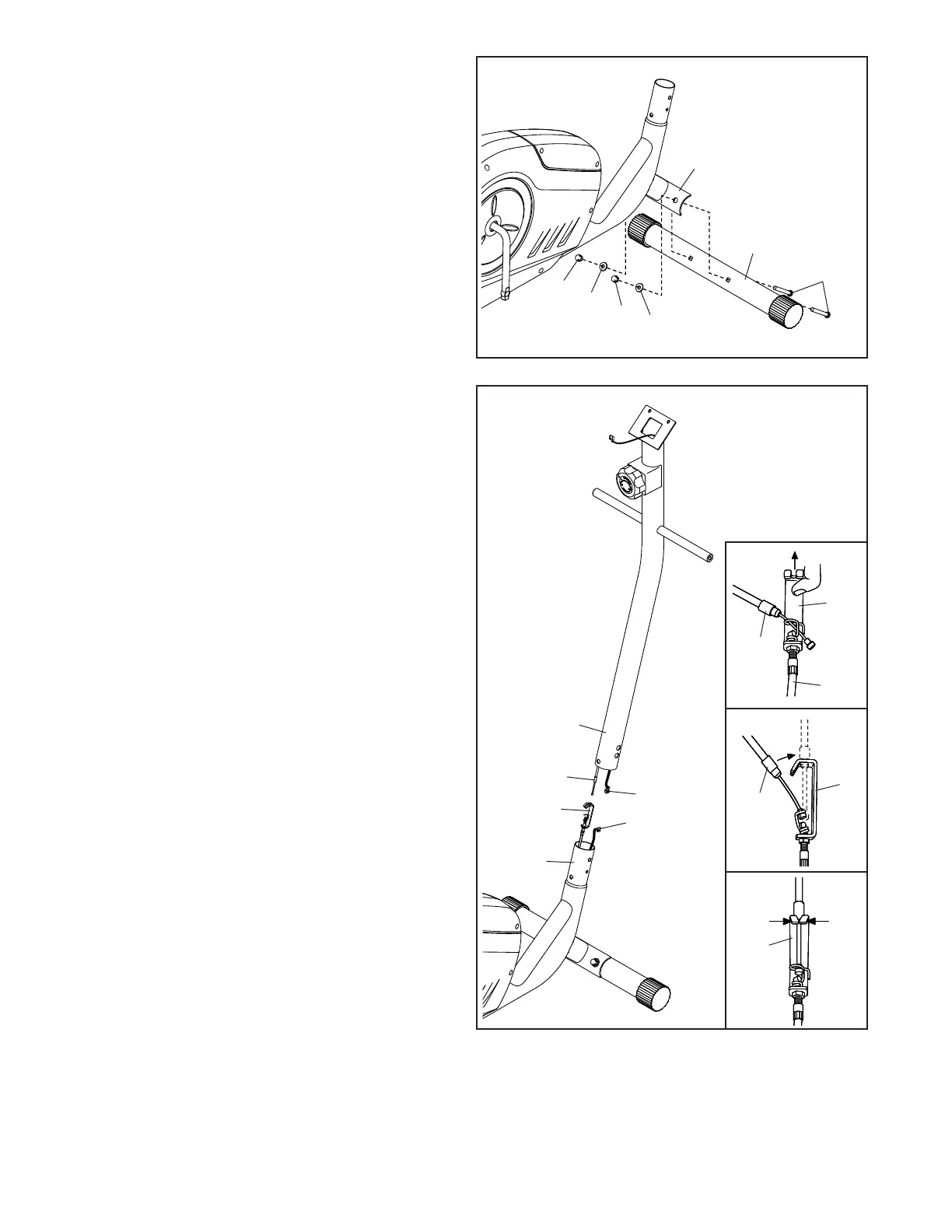

3. Attach the Front Stabilizer (3) to the Frame (1)
with two M8 x 65mm Carriage Bolts (73), two
M8 Curved Washers (65), and two M8 Acorn
Nuts (82); start both Carriage Bolts, and then
tighten the Acorn Nuts.
4. While a second person holds the Upright (2)
near the Frame (1), connect the Upright Wire
(49) to the Reed Switch Wire (7).
Next, connect the Resistance Cable (20) to the
Lower Resistance Cable (21) in the following
way:
See drawing A. Pull upward on the metal
bracket (A) on the Lower Resistance Cable (21),
and insert the tip of the Resistance Cable (20)
into the wire clip inside the metal bracket.
See drawing B. Firmly pull the Resistance
Cable (20) upward and slide it into the top of the
metal bracket (A).
See drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket (A)
together.
2
21
20
7
1
49
A
B
C
21
20
20
A
A
A
