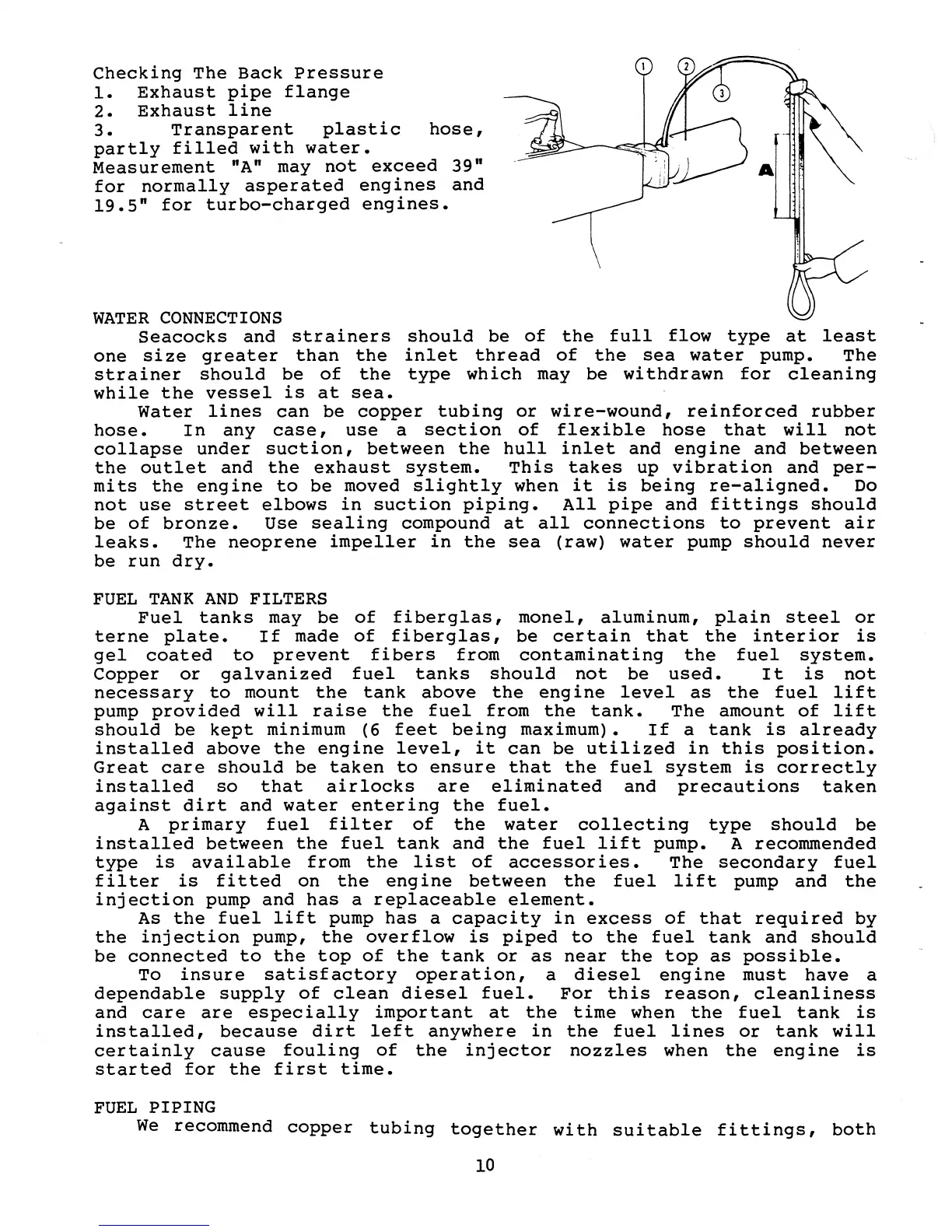

Checking
The
Back
Pressure
1.
Exhaust
pipe
flange
2.
Exhaust
line
3.
Transparent
plastic
hose,
partly
filled
with
water.
Measurement
"A" may
not
exceed
39"
for
normally
asperated
engines
and
19.5"
for
turbo-charged
engines.
WATER
CONNECTIONS
Seacocks
and
strainers
should
be
of
the
full
flow
type
at
least
one
size
greater
than
the
inlet
thread
of
the
sea
water
pump.
The
strainer
should
be
of
the
type
which
may
be
withdrawn
for
cleaning
while
the
vessel
is
at
sea.
Water
lines
can
be
copper
tubing
or
wire-wound,
reinforced
rubber
hose.
In
any
case,
use
a
section
of
flexible
hose
that
will
not
collapse
under
suction,
between
the
hull
inlet
and
engine
and
between
the
outlet
and
the
exhaust
system.
This
takes
up
vibration
and
per-
mits
the
engine
to
be
moved
slightly
when
it
is
being
re-a1igned.
Do
not
use
street
elbows
in
suction
piping.
All
pipe
and
fittings
should
be
of
bronze.
Use
sealing
compound
at
all
connections
to
prevent
air
leaks.
The
neoprene
impeller
in
the
sea
(raw)
water
pump
should
never
be
run
dry.
FUEL
TANK
AND
FILTERS
Fuel
tanks
may
be
of
fiberglas,
monel,
aluminum,
plain
steel
or
terne
plate.
If
made
of
fiberglas,
be
certain
that
the
interior
is
gel
coated
to
prevent
fibers
from
contaminating
the
fuel
system.
Copper
or
galvanized
fuel
tanks
should
not
be
used.
It
is
not
necessary
to
mount
the
tank
above
the
eng
ine
level
as
the
fuel
lift
pump
provided
will
raise
the
fuel
from
the
tank.
The
amount
of
lift
should
be
kept
minimum
(6
feet
being
maximum).
If
a
tank
is
already
installed
above
the
engine
level,
it
can
be
utilized
in
this
position.
Great
care
should
be
taken
to
ensure
that
the
fuel
system
is
correctly
installed
so
that
air10cks
are
eliminated
and
precautions
taken
against
dirt
and
water
entering
the
fuel.
A
primary
fuel
filter
of
the
water
collecting
type
should
be
installed
between
the
fuel
tank
and
the
fuel
lift
pump.
A
recommended
type
is
available
from
the
list
of
accessor
ies.
The
secondary
fuel
filter
is
fitted
on
the
engine
between
the
fuel
lift
pump
and
the
injection
pump
and
has
a
replaceable
element.
As
the
fuel
lift
pump
has
a
capacity
in
excess
of
that
required
by
the
injection
pump,
the
overflow
is
piped
to
the
fuel
tank
and
should
be
connected
to
the
top
of
the
tank
or
as
near
the
top
as
possible.
To
insure
satisfactory
operation,
a
diesel
engine
must
have
a
dependable
supply
of
clean
diesel
fuel.
For
this
reason,
cleanliness
and
care
are
especially
important
at
the
time
when
the
fuel
tank
is
installed,
because
dirt
left
anywhere
in
the
fuel
lines
or
tank
will
certainly
cause
fouling
of
the
injector
nozzles
when
the
engine
is
started
for
the
first
time.
FUEL
PIPING
We
recommend
copper
tubing
together
with
suitable
fittings,
both
10
