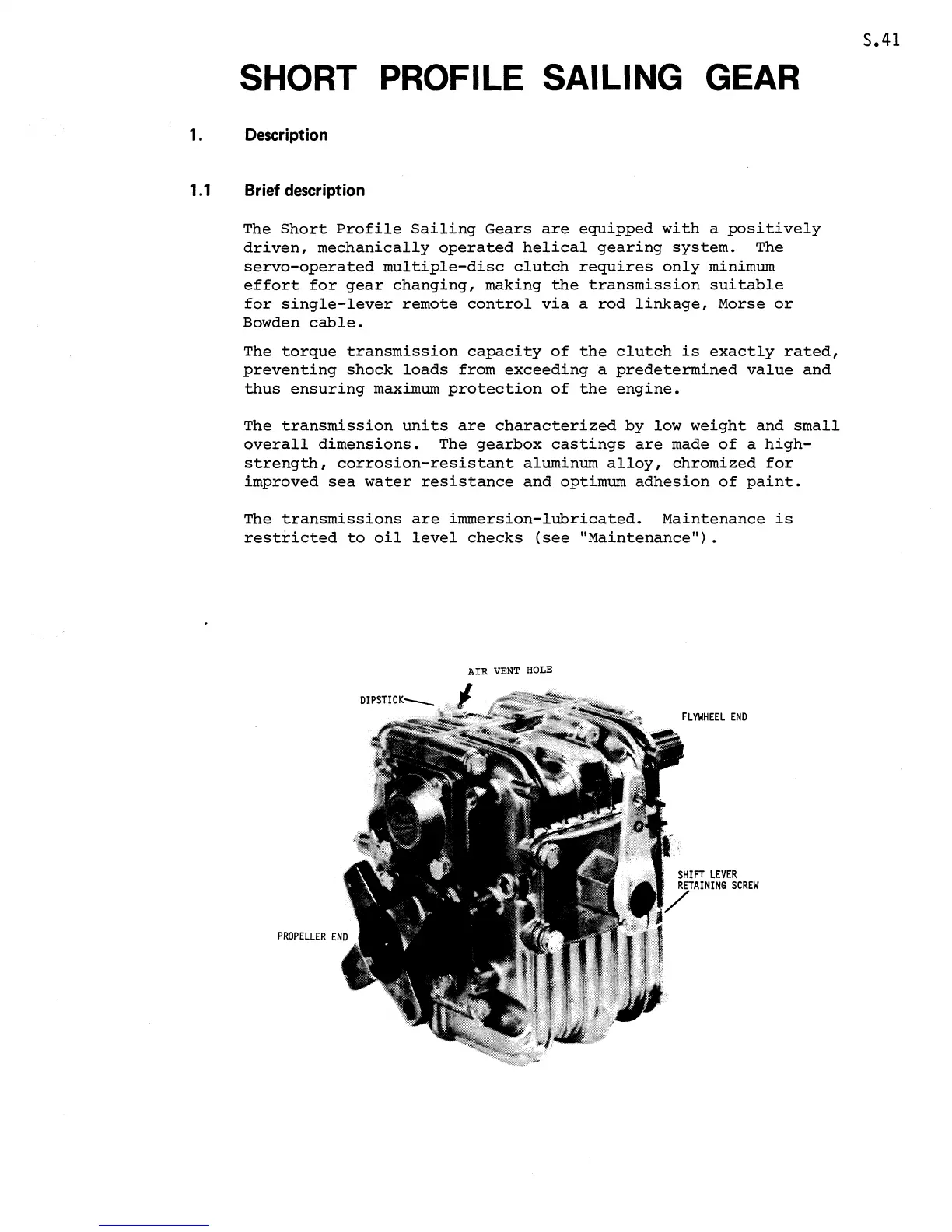

SHORT PROFILE SAILING GEAR
1. Description
1.1 Brief description
The Short Profile Sailing Gears are equipped with a positively
driven, mechanically operated helical gearing system. The
servo-operated multiple-disc clutch requires only minimum
effort for gear changing, making the transmission suitable
for single-lever remote control via a rod linkage, Morse or
Bowden cable.
The torque transmission capacity of the clutch is exactly rated,
preventing shock loads from exceeding a predetermined value and
thus ensuring maximum protection of the engine.
The transmission units are characterized by low weight and small
overall dimensions. The gearbox castings are made of a high-
strength, corrosion-resistant aluminum alloy, chromized for
improved sea water resistance and optimum adhesion of paint.
The transmissions are immersion-lubricated. Maintenance is
restricted to oil level checks (see "Maintenance").
AIR VENT HOLE
LEVER
NING SCREW
S.41
