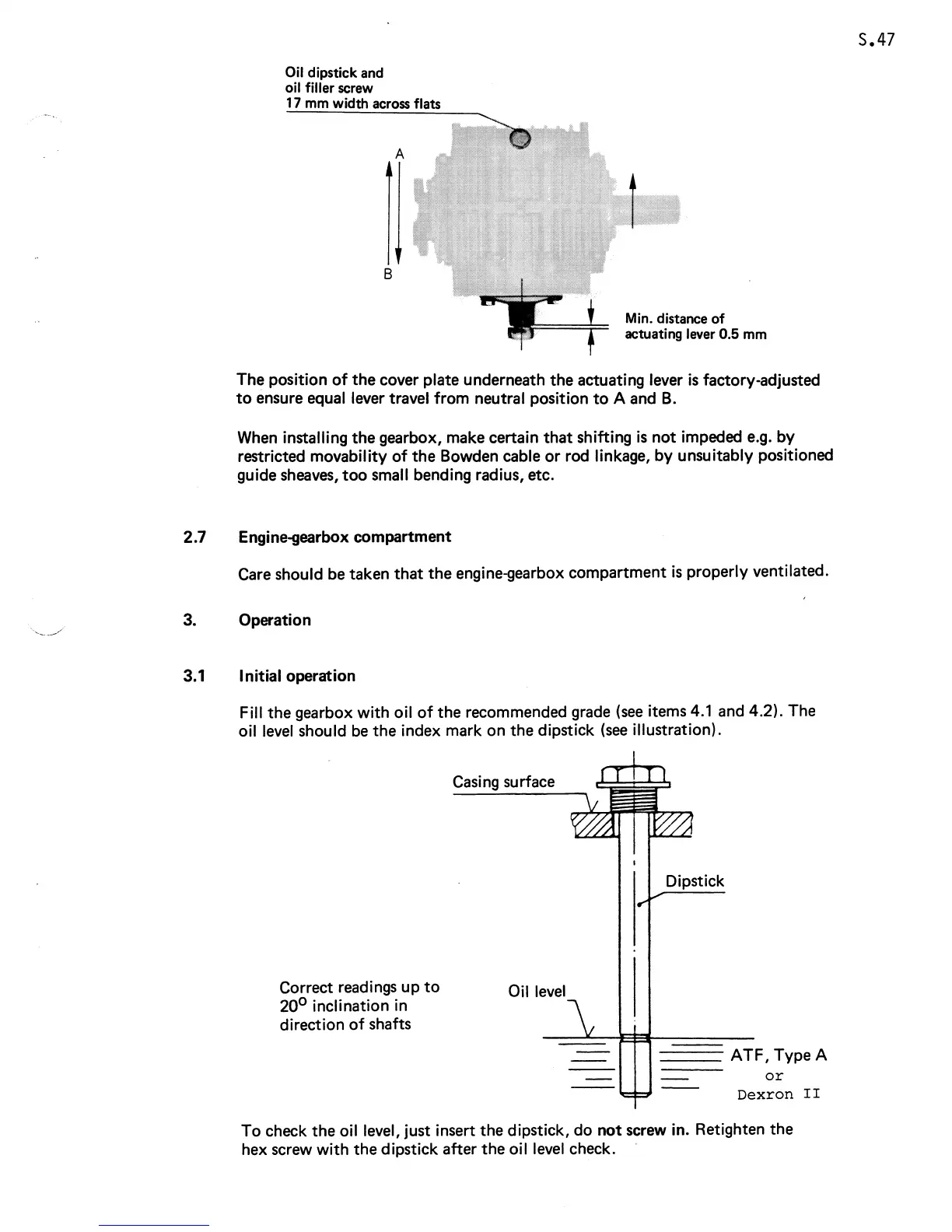

Oil dipstick and
oil filler screw
17 mm width across flats
A
8
Min.
distance
of
actuating lever 0.5 mm
The position
of
the cover plate underneath the actuating lever
is
factory-adjusted
to
ensure equal lever travel
from
neutral position
to
A and
B.
When
installing the gearbox, make certain
that
shifting
is
not
impeded
e.g.
by
restricted movability
of
the Bowden cable
or
rod linkage,
by
unsuitably positioned
guide
sheaves,
too
small bending radius, etc.
2.7 Engine-gearbox compartment
Care
should
be
taken
that
the engine-gearbox compartment
is
properly ventilated.
3.
Operation
3.1
Initial operation
Fill the gearbox
with
oil
of
the recommended grade
(see
items
4.1
and 4.2). The
oil
level
should
be
the index mark on the dipstick
(see
illustration).
Correct readings up
to
20
0
inclination in
direction
of
shafts
Casi
ng
su
rface
Dipstick
Oil
level
--::~~~~Jlrr~~~~A~TF'
Type A
or
Dexron
II
To
check the oil level, just insert the dipstick, do
not
screw in. Retighten the
hex screw
with
the dipstick after the oil level check.
