V4

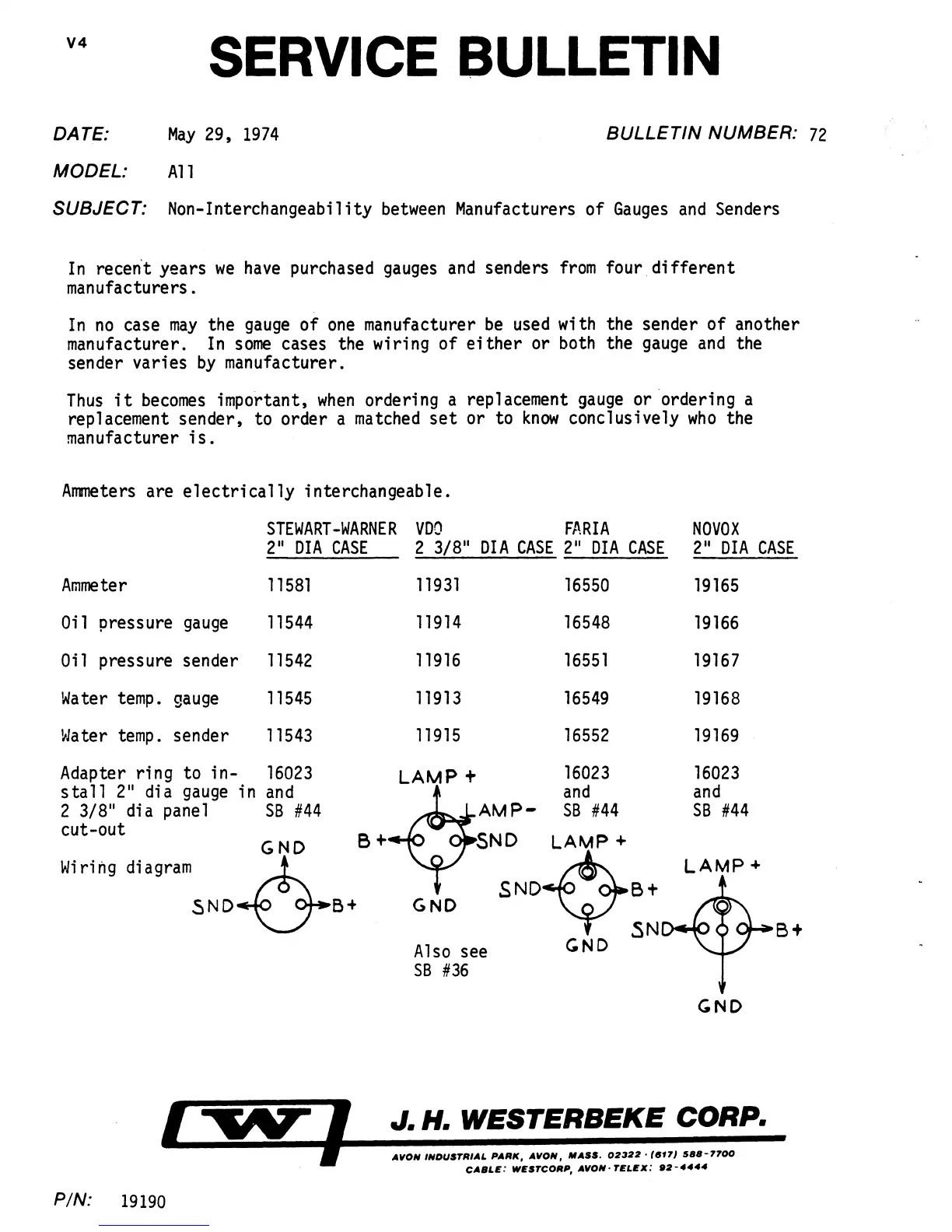

SERVICE BULLETIN
DATE: May 29, 1974
BULLETIN NUMBER: 72
MODEL: All
SUBJECT: Non-Interchangeabil ity between Manufacturers of Gauges and Senders
In recen't years we have purchased gauges and senders from four di fferent
manufacturers.
In no case may the gauge of one manufacturer be used with the sender of another
manufacturer.
In some cases the wiring of either or both the gauge and the
sender varies
by manufacturer.
Thus it becomes important, when ordering a replacement gauge or ordering a
replacement sender, to order a
matched set or to know conclusively who the
manufacturer
is.
Ammeters are electrically interchangeable.
STEWART-WARNER VOO FARIA NOVOX
2" OIA CASE 2 3/8" OIA CASE 2" OIA CASE 2" OIA CASE
Ammeter 11581
Oil pressure gauge 11544
Oil pressure sender 11542
Water temp. gauge 11545
~Ja ter temp. sender 11543
Adapter ri ng to i n- 16023
stall 2" dia gauge in and
2 3/8" dia panel S8 #44
cut-out
GND
Wiring diagram ~
SND~B+
PIN: 19190
B+
11931
11914
11916
11913
11915
LAMP ...
16550
16548
16551
16549
16552
16023
and
__ -. ..... __ AMP- S8 #44
SND LAMP'"
19165
19166
19167
19168
19169
16023
and
S8 #44
LAMP+
GND
SND~B'"
~ SN .... _·,...
Also see
S8 #36
(;ND
(;ND
J. H. WESTERBEKE CORP.
AIION INDUSTRIAL PARK, AIION, MAS.S. 02322· (517} 588-7700
CABLE: WESTCORP, AIION· TELEX: .2-4444
B+
