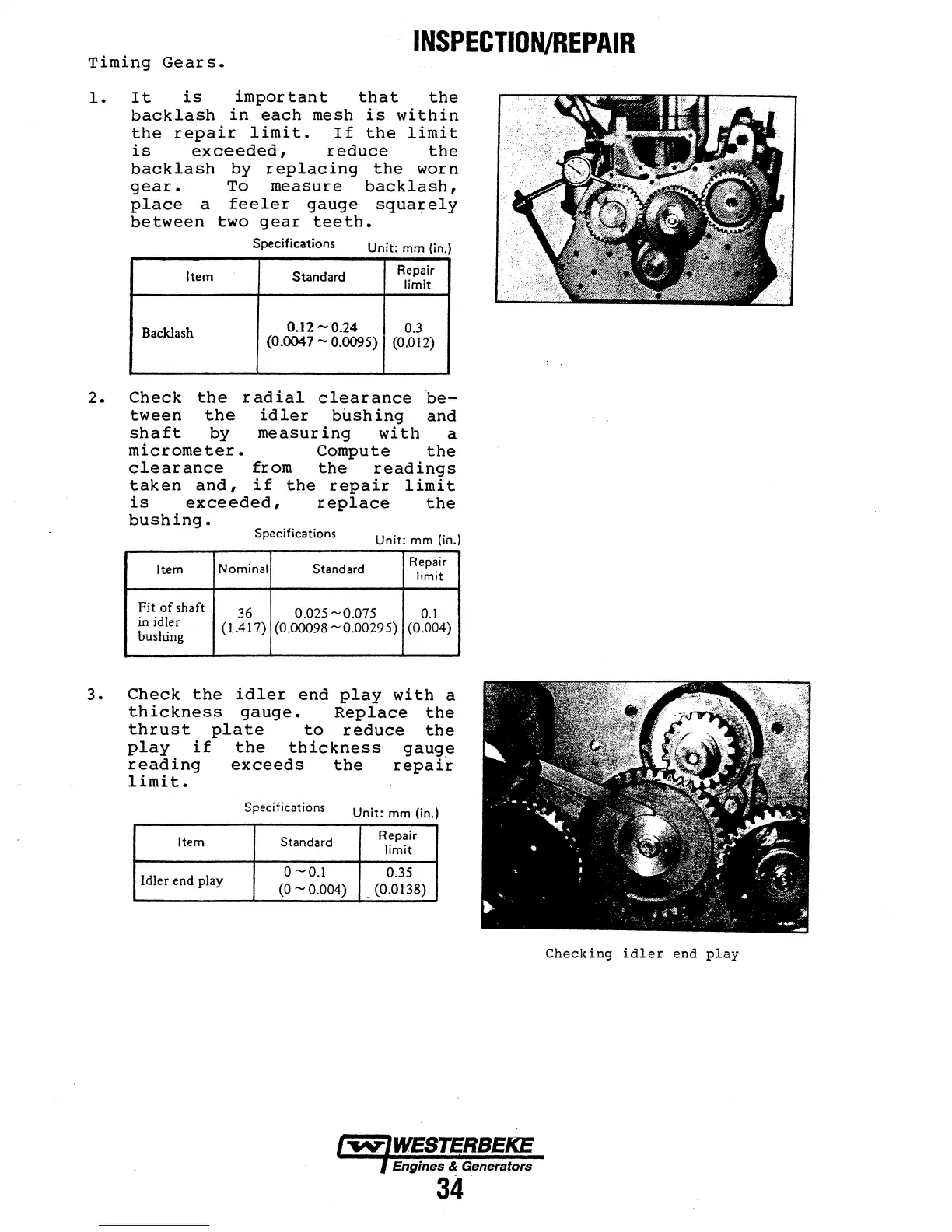

INSPECTION/REPAIR
Timing Gears.
1. It is important that the
backlash in each mesh is within
the repair limit. If the limit
is exceeded, reduce the
backlash by replacing the worn
gear. To measure backlash,
place a feeler gauge squarely
between two gear teeth.
2.
3.
Specifications
Unit: mm (in.)
Item
Standard
Repair
limit
Backlash
0.12-0.24
0.3
(0.0047- 0.0095)
(0.012)
Check the radial clearance be-
tween the idler bushing and
shaft by measuring with a
micrometer. Compute the
clearance from the readings
taken and, if the repair limit
is exceeded, replace the
bushing.
Specifications
Unit: mm (in.)
Item
Nominal
Standard
Repair
limit
Fit of shaft
36
O.D25 ~oms
0.1
in idler
(1.417) (0.00098 ~ 0.0029 5) (0.004)
bushing
Check the idler end play with a
thickness gauge. Replace the
thrust plate to reduce the
play if the thickness gauge
reading exceeds the repair
limit.
Specifications Unit: mm (in.)
Item Standard
Repair
limit
Idler end play
0-0.1
0.35
(0 -0.004)
. (0.0138)
Engines & Generators
34
Checking idler end play
