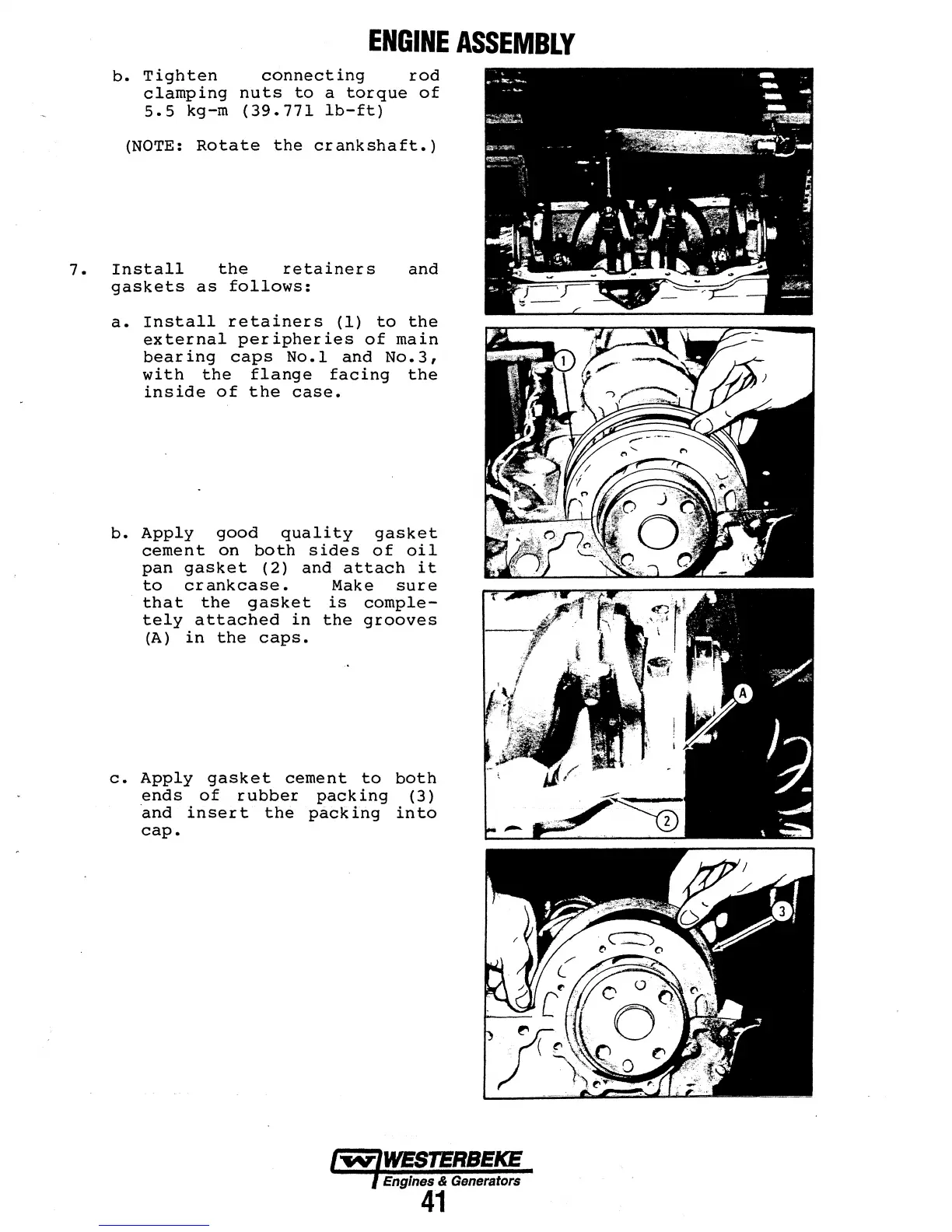

ENGINE ASSEMBLY
b. Tighten connecting rod
clamping nuts to a torque of
s.s kg-m (39.771 lb-ft)
(NOTE: Rotate the crankshaft.)
7. Install the retainers and
gaskets as follows:
a. Install retainers (l) to the
external peripheries of main
bearing caps No.1 and No. 3,
with the flange facing the
inside of the case.
b. Apply good quality gasket
cement on both sides of oil
pan gasket (2) and attach it
to crankcase. Make sure
that the gasket is comple-
tely attached in the grooves
(A) in the caps.
c. Apply gasket cement to both
ends of rubber packing (3)
·and insert the packing into
cap.
