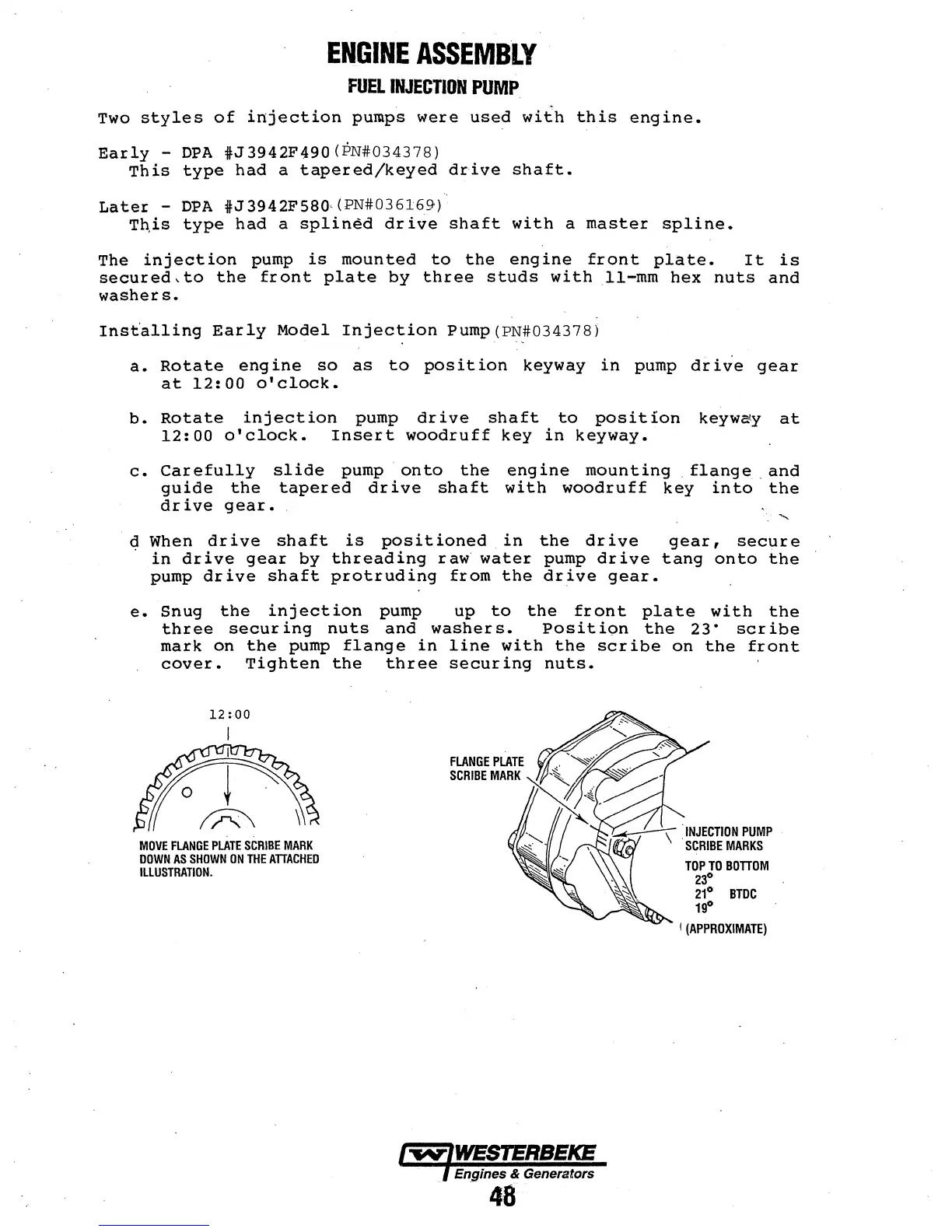

ENGINE
ASSEMBLY
FUa
INJECTION
PUMP
Two
styles
of
injection
pumps
were
used
with
this
engine.
Early
-
DPA
iJ3942F490(PN#034378)
This
type
had
a
tapered/keyed
drive
shaft.
Later
-
DPA
#J
3942F580·
(PN#036169)
T~is
type
had
a
splined
drive
shaft
with
a
master
spline.
The
injection
pump
is
mounted
to
the
engine
front
plate.
It
is
secured,to
the
front
plate
by
three
studs
with
.11-mm
hex
nuts
and
washers.
Inst'alling
Early
Model
Injection
Pump
(PN#034378)
.
..
a.
Rotate
engine
so
as
to
position
keyway
in
pump
drive
gear
at
12:00
o'clock.
b.
Rotate
injection
pump
drive
shaft
to
position
keyway
at
12:00
o'clock.
Insert
woodruff
key
in
keyway.
c.
Carefully
slide
pump
onto
the
engine
mounting
.
flange
.
and
guide
the
tapered
drive
shaft
with
woodruff
key
into
the
drive
gear.
q When
drive
shaft
is
positioned
in
the
drive
gear,
secure
in
drive
gear
by
threading
raw·
water
pump
drive
tang
onto
the
pump
drive
shaft
protruding
from
the
drive
gear.
e.
Snug
the
injection
pump
up
to
the
front
plate
with
the
three
securing
nuts
and
washers.
Posit
ion
the
23
scribe
mark
on
the
pump
flange
in
line
with
the
scribe
on
the
front
cover.
Tighten
the
three
securing
nuts.
12:00
I
MOVE
FLANGE
PLATE
SCRIBE
MARK
DOWN
AS
SHOWN
ON
THE
ATTACHED
ILLUSTRATION.
