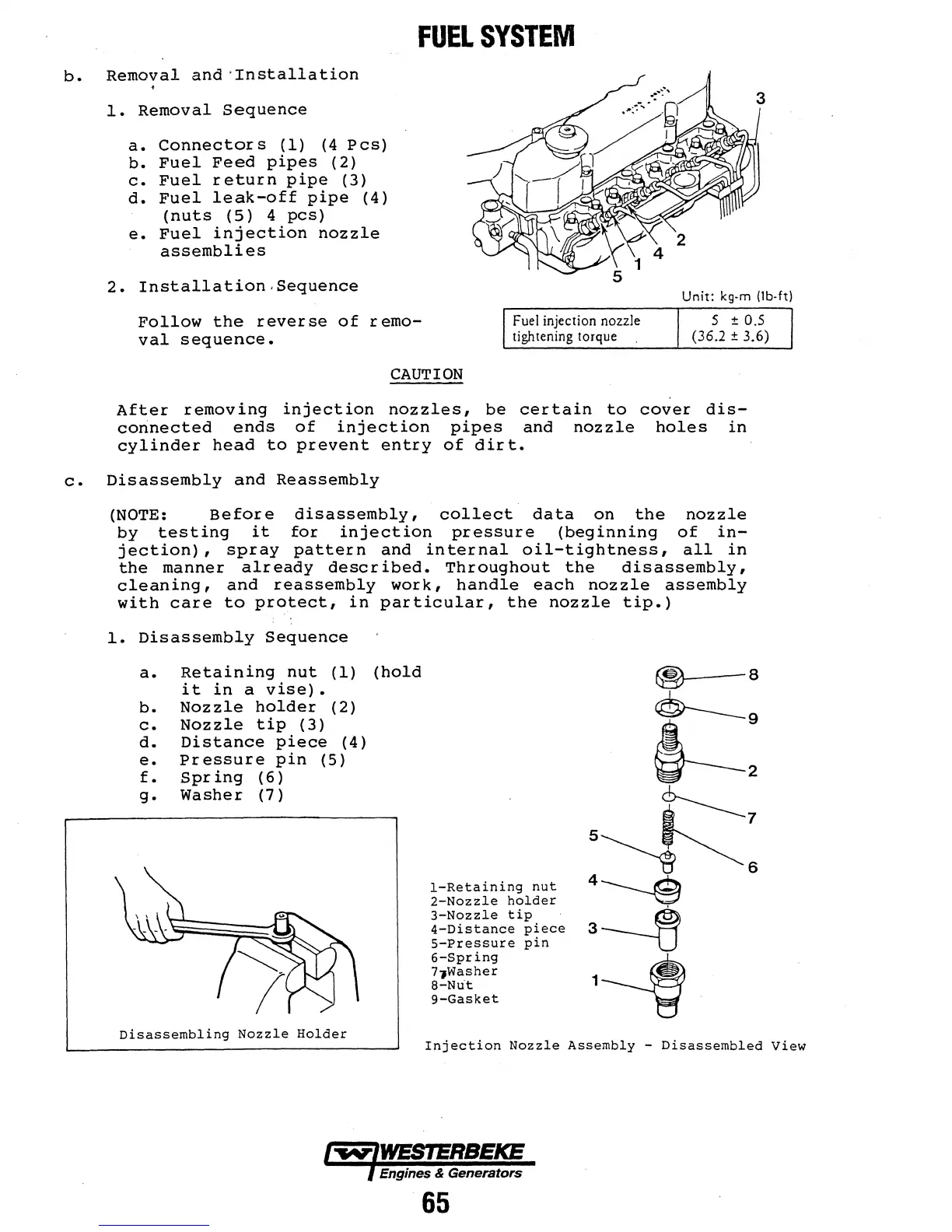

b. Removal and·Installation
•
1. Removal Sequence
a. Connectors (1) (4 Pes)
b. Fuel Feed pipes (2)
c. Fuel return pipe (3)
d. Fuel leak-off pipe (4)
(nuts (5) 4 pes)
e. Fuel injection nozzle
assemblies
FUEL SYSTEM
2. Installation,Sequence
Unit: kg·m (lb-ft)
Follow the reverse of remo-
val sequence.
Fuel injection nozzle
tightening torque .
5 ± 0.5
(36.2 ± 3.6)
CAUTION
After removing injection nozzles, be certain to cover dis-
connected ends of injection pipes and nozzle holes in
cylinder head to prevent entry of dirt.
c. Disassembly and Reassembly
(NOTE: Before disassembly, collect data on the nozzle
by testing it for injection pressure (beginning of in-
jection), spray pattern and internal oil-tightness, all in
the manner already described. Throughout the disassembly,
cleaning, and reassembly work, handle each nozzle assembly
with care to protect, in particular, the nozzle tip.)
l.
Disassembly Sequence
a.
Retaining nut
(1)
(hold
it in a vise) •
@---8
b.
Nozzle
holder
(2)
c.
Nozzle
tip
(3)
d.
Distance piece ( 4)
e.
Pressure pin (5)
f. Spring (6)
g. Washer
(7)
Disassembling Nozzle Holder
!-Retaining nut
2-Nozzle holder
3-Nozzle tip
4-Distance piece
5-Pressure pin
6-Spring
7"JWasher
8-Nu·t
9-Gasket
5
i==:
1----_7
6
Injection Nozzle Assembly - Disassembled View
