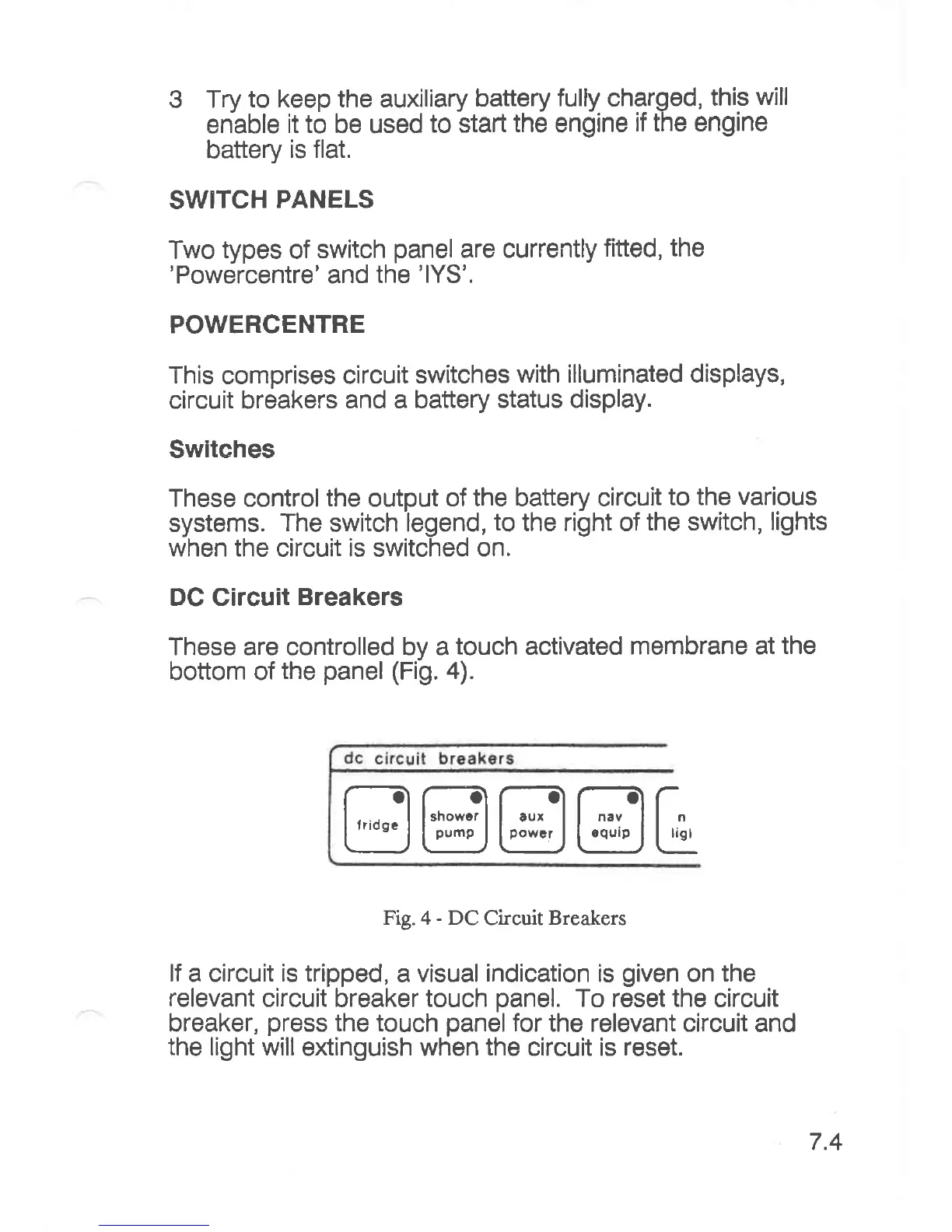

3
Try
to keep the auxiliary
battery
fully
charged,
this
will
en-able
it to be
used
to staft
the
engine
if the engine
battery
is flat.
SWITCH
PANELS
Two
types
of
switch
panel
are currently
fitted,
the
'Powercentre'
and
the'lYS'.
POWERCENTRE
This
comprises circuit
switches
with illuminated displays,
circuit breakers
and a battery
status display.
Switches
These control
the
output
of the battery circuit
to the
various
systems.
The
switch
legend,
to
the right of
the switch,
lights
when the
circuit
is
switched
on.
DC Circuit
Breakers
These are controlled by a
touch
activated
membrane at
the
bottom of
the
panel
(Fig.
4).
Fig.4
-
DC
Circuit
Breakers
lf
a circuit
is tripped,
a
visual
indication
is
given
on
the
relevant
circuit
breaker
touch
panel.
To reset the
circuit
breaker,
press
the touch
panel
for
the relevant circuit
and
the
light will
extinguish when
the
circuit is
reset.
7.4
