Cooling
The router should be mounted in a
clean and dry location, protected from
water, excessive dust, corrosive fumes,
extremes of temperature and direct
sunlight. Allow sufficient ventilation to
ensure adequate cooling of the router.
10mm 10mm
Mounting

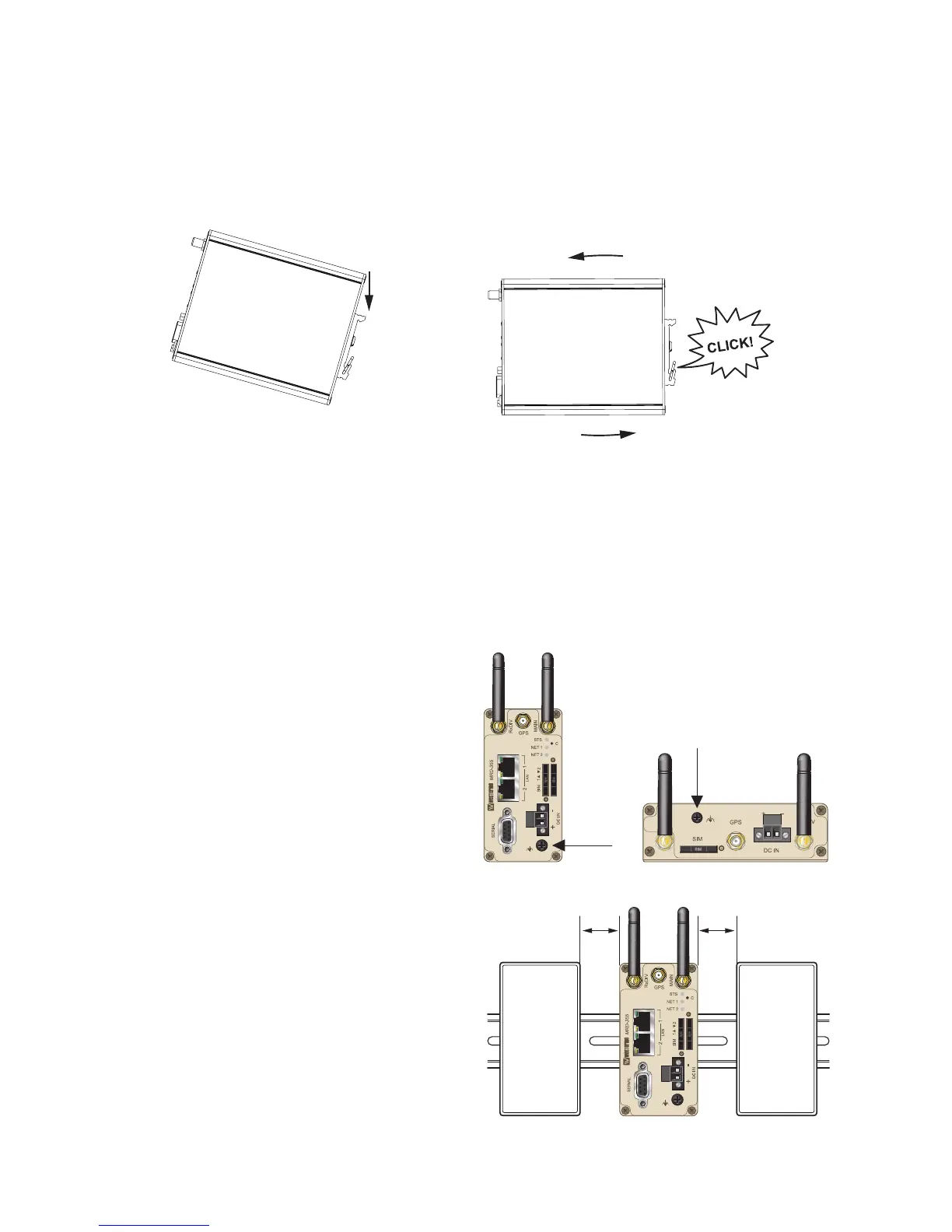

The MRD-355 and MRD-455 should be mounted on 35 mm DIN-rail, which is
horizontally mounted inside an apparatus cabinet or similar. Snap on mounting, see figure.
Mount the MRD-355 and MRD-455 with integrated DIN-clip:
The MRD-315 includes integrated mounting flanges and can be attached to a panel or
tray by means of screws, using the slots provided. Alternatively the MRD-315 can be DIN
rail mounted, using the DIN rail mounting kit.
Earth connection
For correct function, the ground
connection on the unit needs to be
properly connected to a solid ground.
See figure.
