OPERATING INSTRUCTIONS
Return to Table of Contents
SEAL REPLACEMENT
It is recommended to replace the bearings anytime these seals are replaced, as they are relatively inexpensive
versus the cost of downtime and labor� The paddle shaft should be thoroughly inspected for grooves� Paddle
shafts with a groove 1/8” or deeper should be replaced�
Disconnect the gearbox from the shaft coupler and remove the engine and gearbox from the engine
compartment� Remove the bolts holding the drum’s pillow block bearings to the frame and remove the
drum from the frame� Remove the paddles from the paddle shaft if the shaft is to be replaced� Remove the
pillow black bearings from the shaft� Removing the ange mount bearing exposes the seal and grease ring
assemblies� For seal installation, put a small amount of grease on the rubber seals so they will slip on the

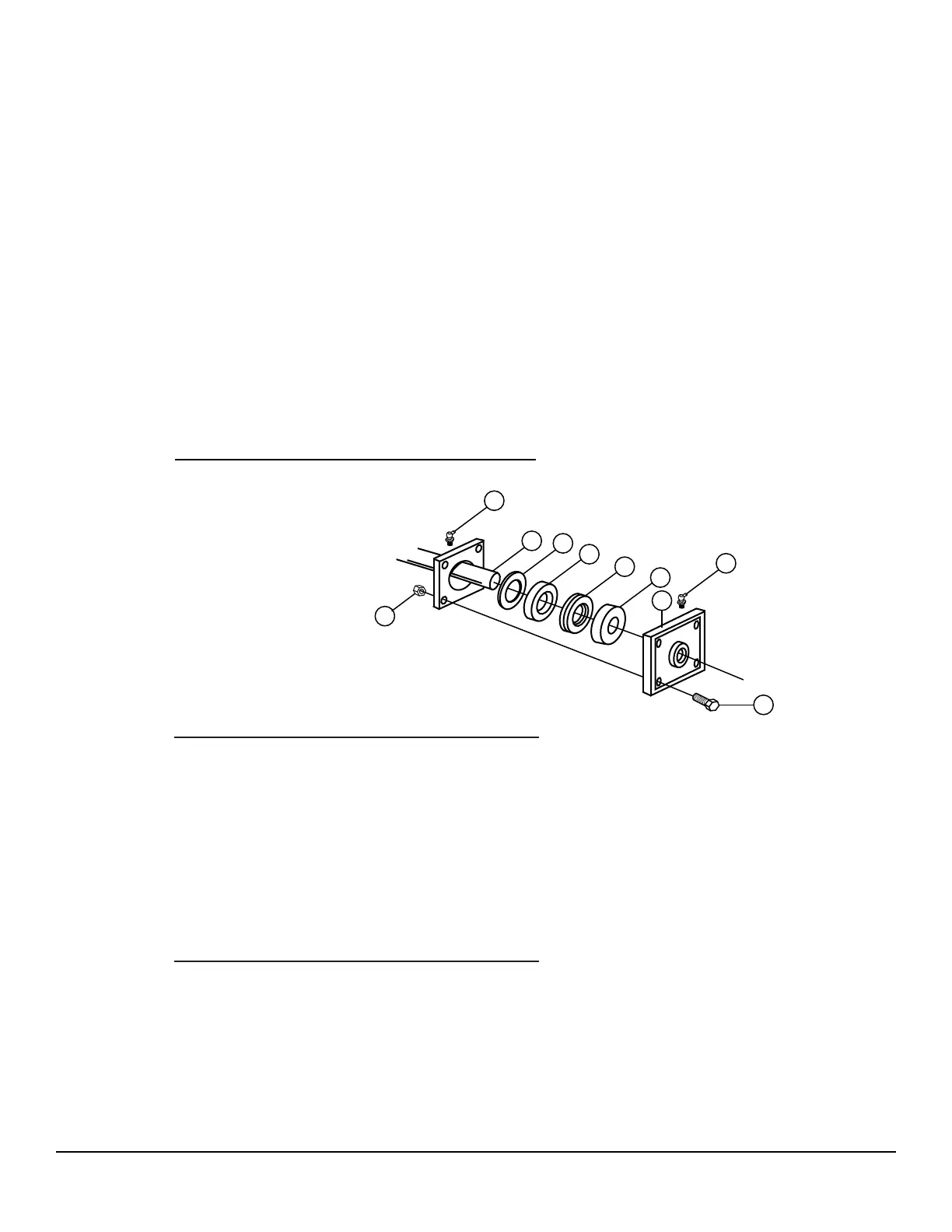

shaft� The seals are purposely undersized to allow wear� Assemble as indicated on the illustration� Completely
ll the seal cavity with waterproof grease�
1
2
3
3
3
4
5
6
7
8
A
GREASE FITTING
PADDLE SHAFT
PADDLE SHAFT SEAL
PADDLE SEAL SPACER
GREASE RING
FLANGE BEARING GOLD
FLANGE BEARING STD
GREASE FITTING
NUT LOCK
HEX BOLT
1
2
3
3A
4
5
5A
6
7
8
1200-350-040
1200-100-100
1200-100-060
1200-100-080
1200-100-070
1200-100-050
1200-100-051
1200-200-230
1200-030-150
1200-100-020
Ref
DESCRIPTION PART #
