ACCESSORIES

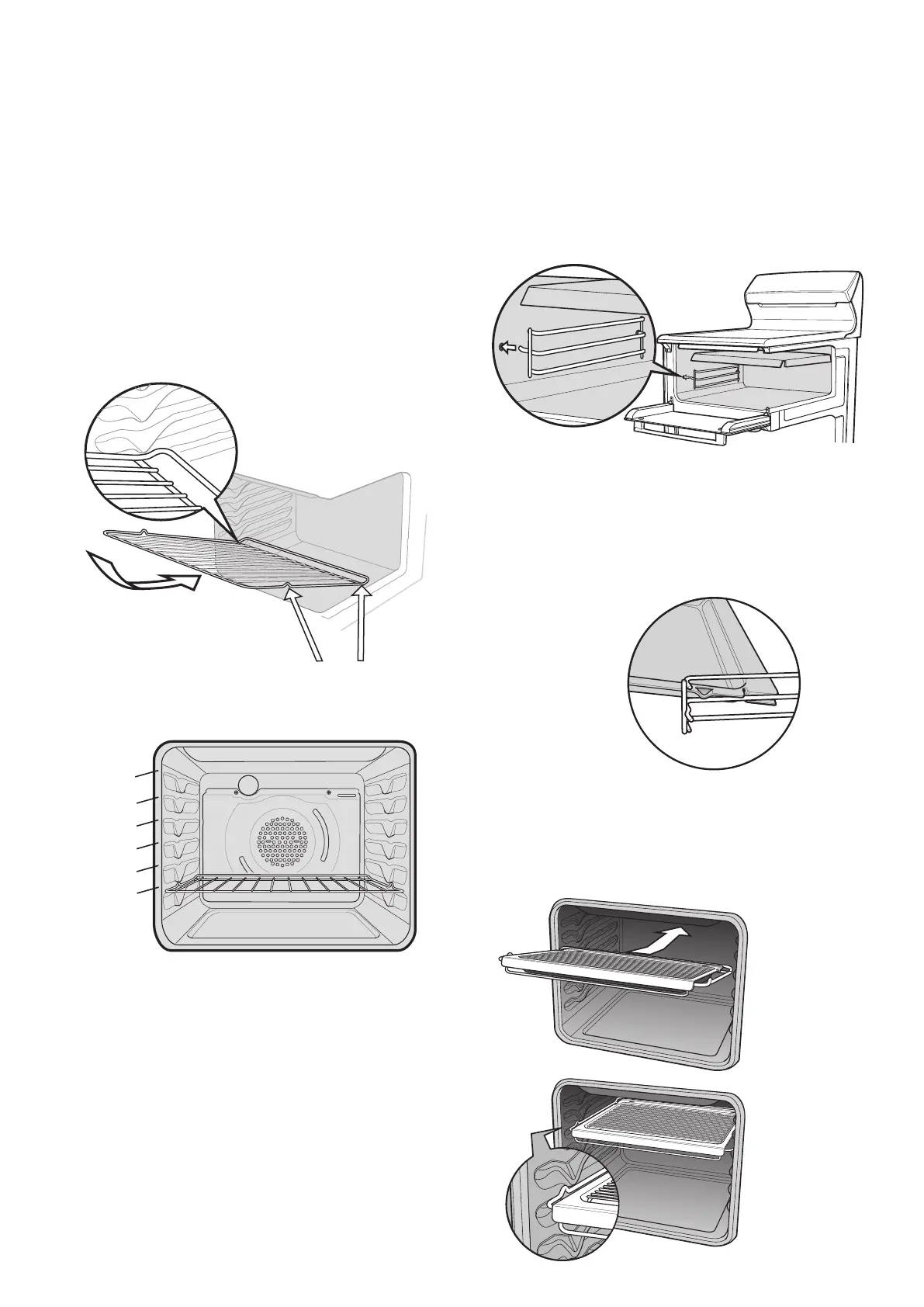

FITTING OVEN SHELVES
1. Ensure shelf orientation is correct (refer to diagram below).
2.
Slide oven shelves onto oven supports (side runners) at
an angle until raised back of shelf is past the stop on oven
supports (side runners).
3.
Lower front of shelf and push in until stop is reached.
4.
To remove oven shelves, withdraw to the stop and raise
the front of shelf to clear the stop.
Note the orientation of
the side and rear features
Oven shelf location
5 shelf
positions
1
2
3
4
5
Not a shelf
position
NOTE: the top ledge is not a shelf position.
There are no stops for shelf withdrawal.
Fitting the grill dish supports
• Insert the rear hook into the rear hole.
• Align the front peg to the front hole and push in firmly.
FITTING THE GRILL DISH
Separate grill
Ensure rear of the dish is engaged with the side support
before sliding backwards. To remove, simply pull forwards
and upwards.
Engagement of
rear of dish
Engagement of rear of dish
Grill in oven
(refer to Fitting Oven Shelves)
The grill dish with wire insert can be used in any of the
two upper height positions (shelf positions 4 and 5) between
the runners.
NOTE: You must remove the grill dish when baking in the oven.
Grill dish
insertion
Grill dish
final position
INSTALLING OVEN ACCESSORIES
To Next Page
