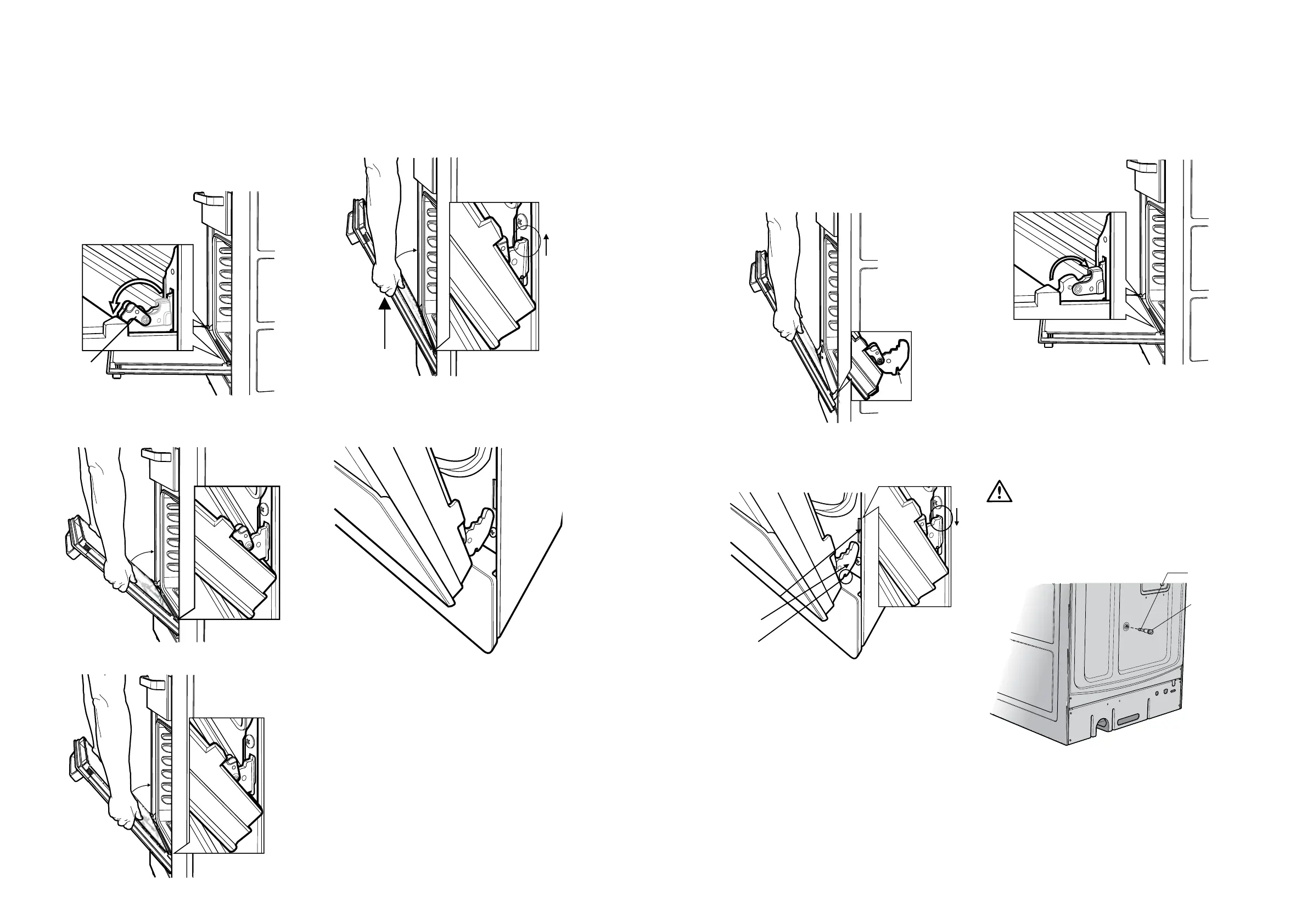

Removing the oven door
(To be done by qualified personnel only)
1. With door fully open, rotate the two stirrups
to its rest position.
Stirrup
2. Close the door until it stops against the stirrups.
3. Close the door further.
4. Lift the door slightly and evenly while continuing to
slowly close the door.
5. Remove the door by lowering gently and pull away
from the frame of the oven. Care should be taken not
to damage kick panel and other parts of the cooker.
INSTALLATION
INSTALLATION
Replacing the oven door
(To be done by qualified personnel only)
1. Hold door with both hands.
2. Locate both hinges into the frame slots
at the same time.
3. Ensure that the location notch drops into frame slot.
Care should be taken not to damage other parts of
the cooker.
Hinge
Notch
Frame slot
4. Open door fully and rotate stirrups away from you,
and back to their original position.
5. Close the door fully.
Service fuse location – models with powerpoint only
This product is fitted with a power outlet at each end
of the control panel. The outlets are protected by a
replaceable high breaking capacity 15 amp fuse located at
the rear of the product.
WARNING
Before servicing the fuse, ensure that all power to
product is switched off.
To access fuse, unscrew fuse housing and remove from
appliance. (See diagram).
Fuse
Fuse housing
