Open the main door of the Easy 6000 - disconnect the
power supply by turning the main switch off.
Remove the drawer by pulling gently to overcome the
positioning spring locking action.
Pull the drawer out as far as the stop permits.
Empty the drum of any products that are contained in it.
Remove the drum from its lodging

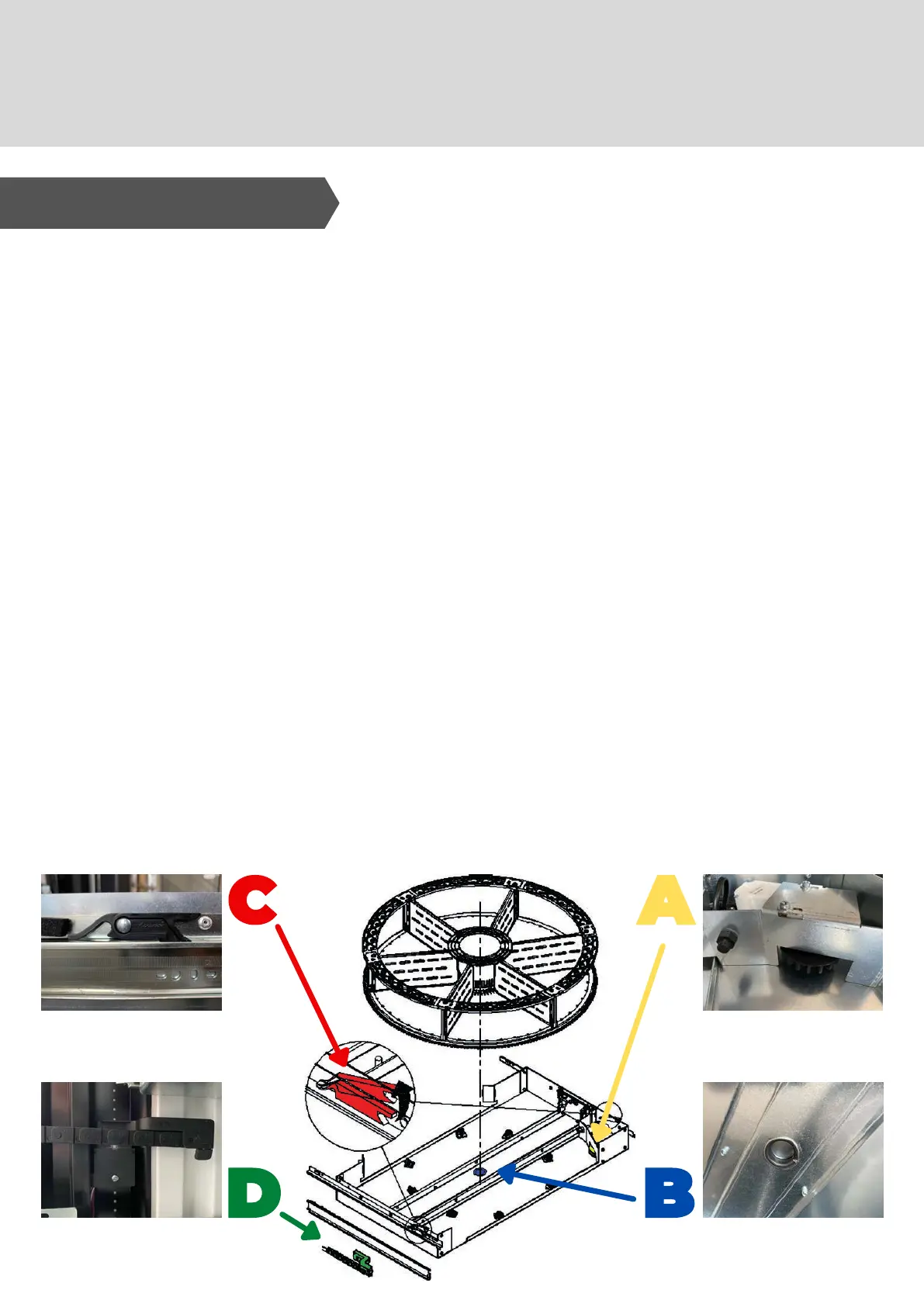

To remove the drawer as well - disconnect connector 'D'
located on the left side inside the cabinet - lift the stops 'C'
on the sides and remove the drawer.
Couple the "teeth" of the drum with the pulley sockets of
the ratio motor "A".
Insert the centre pin of the drum in the drawer "B".
To remove the drum from the drawer:
1.
2.
3.
4.
5.
6.
To reposition the drum on the drawer:
1.
2.
10. Adjustments
1 . DR U M R E MOV A L
