AC CONNECTIONS

The WF-68100-AD Series Converter-Chargers receive power from the power cord located to the

left of the rear panel fan. Due to the higher current required from the AC line to produce the high

DC current output, a 20 Amp power plug is provided.

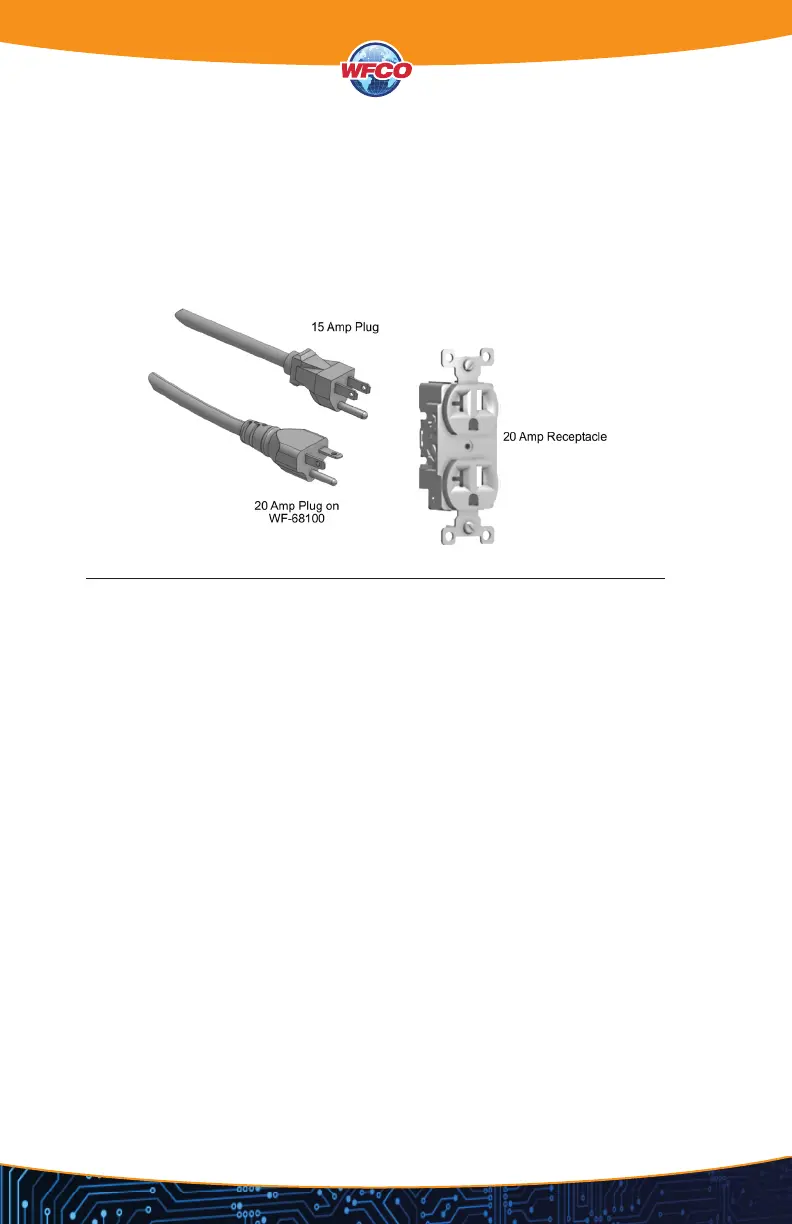

The 20 Amp plug and corresponding receptacle are shown in Figure 7 below. The 20 Amp

receptacle must be wired back to the fuse box using 12AWG wire minimum.

Figure 7
