5

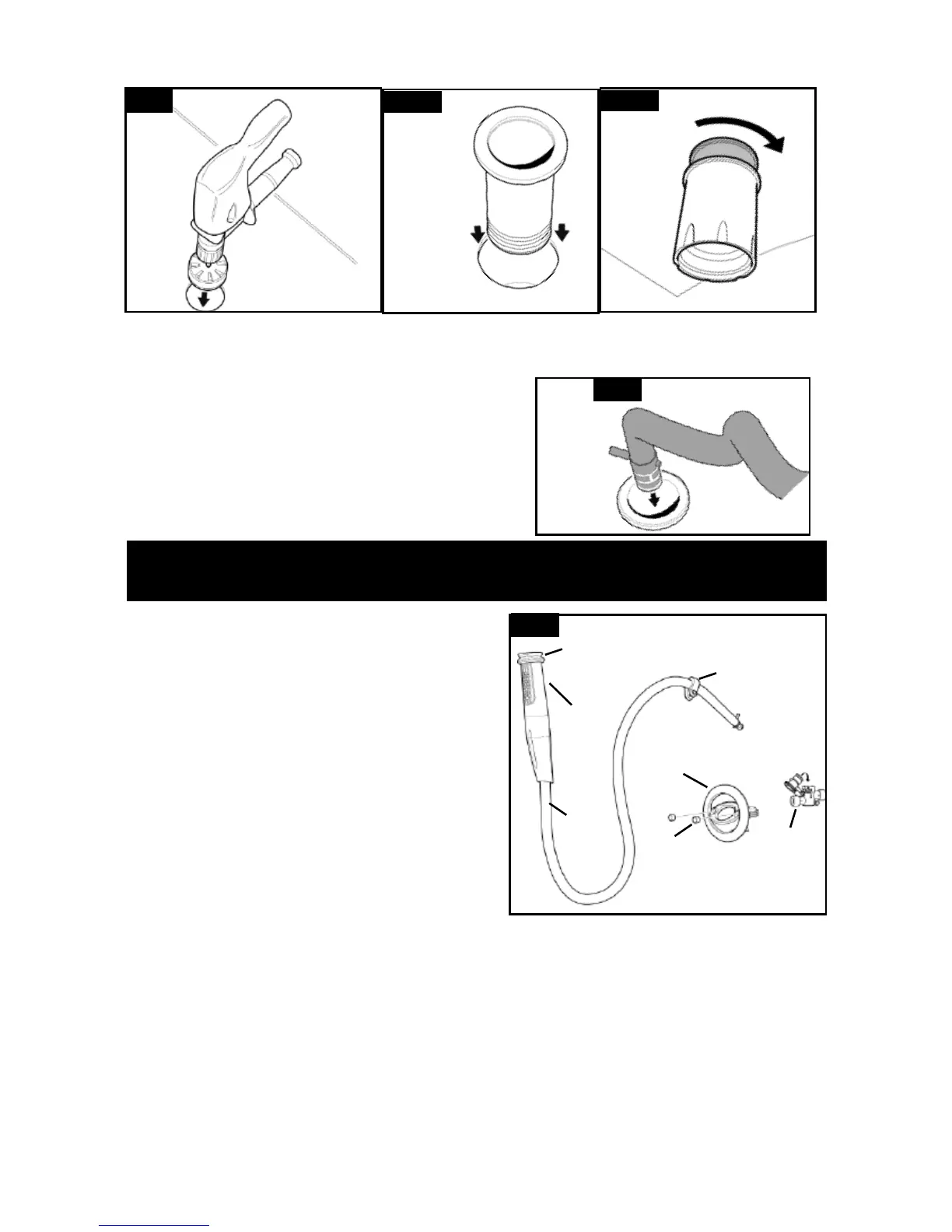

STEP 3 Place the housing through the hole. Secure by hand tightening the lock nut
onto the housing behind the bulkhead. (See Fig. 4a and 4b)
STEP 4 Feed the hose down through the housing
until the handset is in place. (See Fig. 5)
Please refer to section 8 for plumbing details.
10. PARTS LIST - ANGLED HOUSING OPTIONS
MIXER VERSION
1 Handset and hose with p clamp (screw incl.)
1 Angled housing (with 3 support rings supplied
- black, red, and blue)
2 Screw covers
1 Valve housing with temporary shut off valve
attached (includes 2 retaining screws)
2 WX1532B - adaptor 1/2” BSP female
(supplied with retail models only)
COLD ONLY VERSION
1 Handset and hose with p clamp (screw incl.)
1 Angled housing (with 3 support rings supplied
- black, red, and blue)
1 Screw covers
1 WX1532B - adaptor 1/2” BSP female
Deck Protect
TM
End cap
Handset
P Clamp
Angled
Housing
Valve
Housing
Hose
Fig. 6
Fig. 3
In Front of
the Bulkhead
In Front of
the Bulkhead
Fig. 4a
Fig. 4b
Behind
the Bulkhead
Fig. 5
In Front
of the
Bulkhead
Screw
Covers
