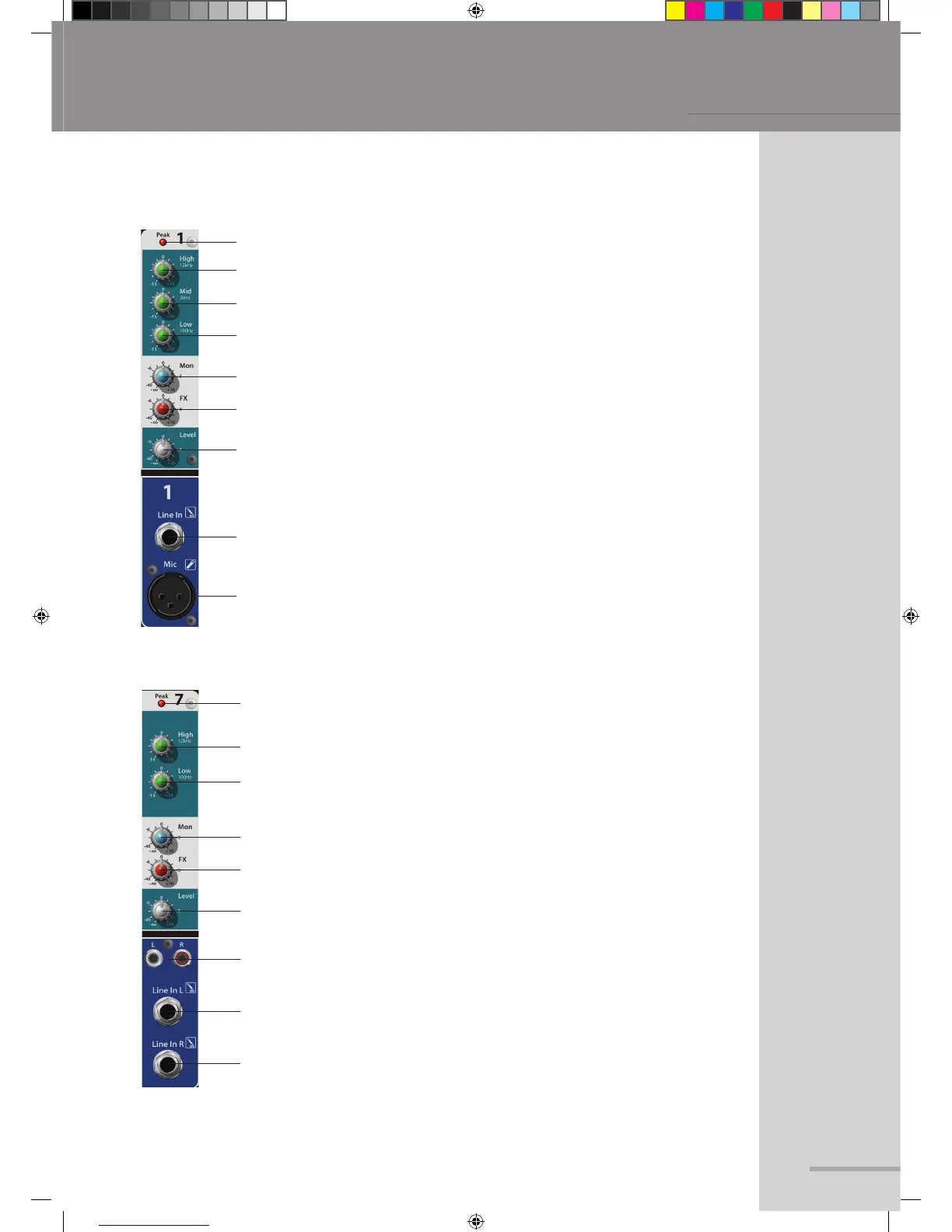

PMX 700 CHANNELS 1-6
1. Peak LED - Illuminates when the channel is clipping
2. High - High frequency shelving EQ, centered around 12kHz
3. Mid - Mid frequency shelving EQ, centered around 2kHz
4. Low - Low frequency shelving EQ, centered around 100Hz
5. Mon - Sends signal to a stage monitor
6. FX Send - Sends signal to the built-in FX processor
7. Level - Controls the overall volume of the channel
8. Line in - Balanced / unbalanced ¼” TRS input for line level sources
9. Mic - Balanced XLR microphone inputs with switchable +48v phantom
powering (Global Phantom power switch on rear of PMX unit)
PMX 700 CHANNEL 7
1. Peak LED - Illuminates when the channel is clipping
2. High - High frequency shelving EQ, centered around 12kHz
3. Low - Low frequency shelving EQ, centered around 100Hz
4. Mon - Sends signal to a stage monitor
5. FX Send - Sends signal to the built-in FX processor
6. Level - Controls the overall volume of the channel
7. CD/Tape In - Dual phono inputs for connection of consumer level stereo
sources
8. Line in L - Balanced / unbalanced ¼” TRS input for left channel of line
level sources
9. Line in R - Balanced / unbalanced ¼” TRS input for right channel of line
level sources
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
