USER INSTRUCTIONS: WH-D8 & WH-D10 SUBWOOFER
3

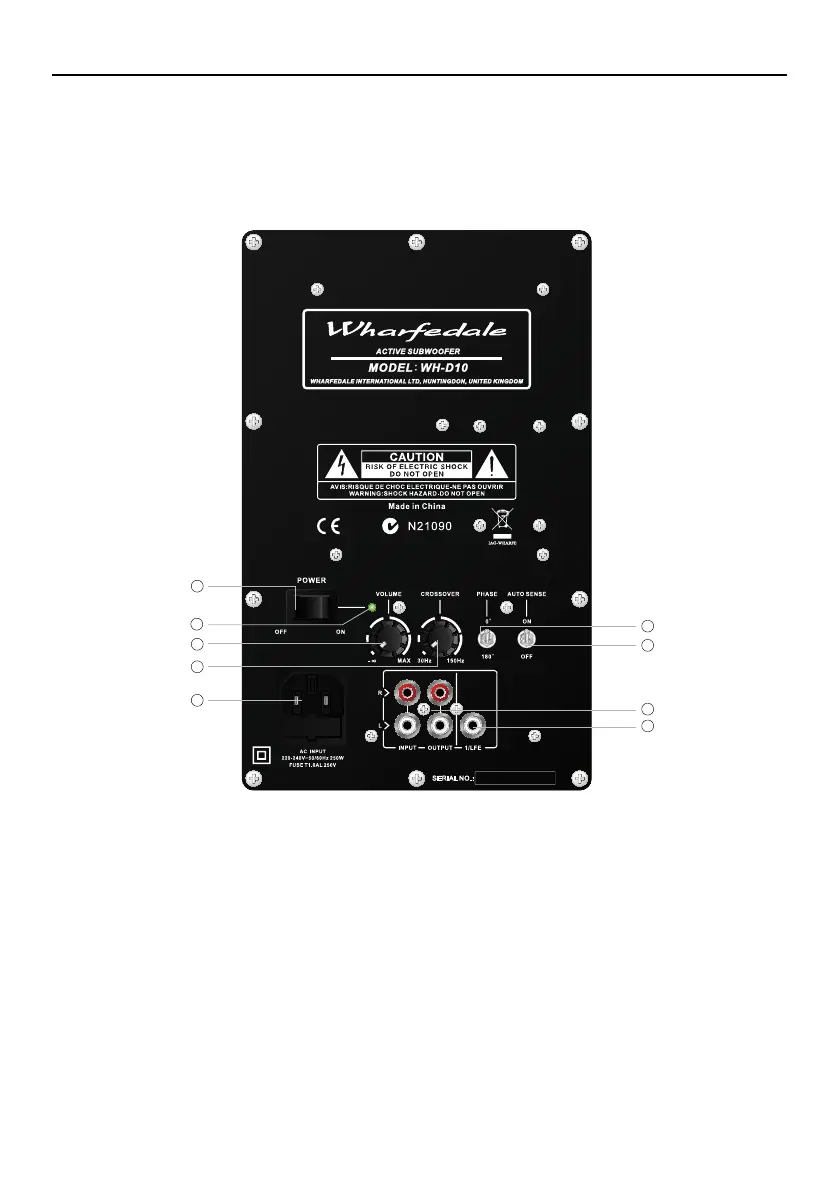

Control Panel of the WH-D10 Subwoofer
① Power Indicator
② Volume Control
③ C r o s s o v e r F r e q u e n c y
Control
④ Phase Switch
CONNECTING THE SUBWOOFER TO THE SYSTEM
⑤ Auto Sense Switch
⑥ Line Level Inputs
⑦ IEC Mains Input Socket
⑧ Mains Power Switch
⑨ LFE Input
1
2
3
4
5
6
9
7
8
