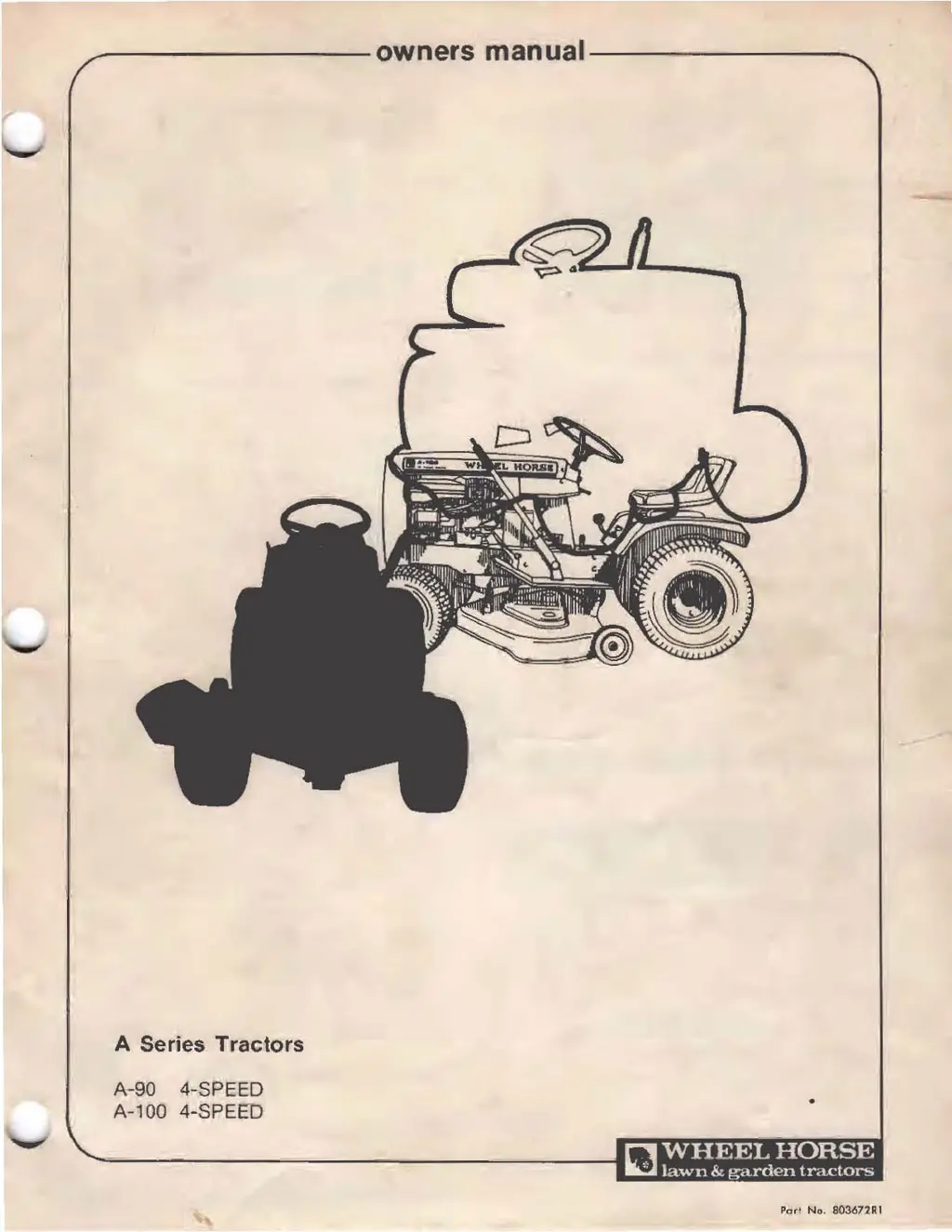

A Series Tractors

A-90 4-SPEED

A-lOa

4-SPEED

•

Part

No. 803672Rl

Table of Contents

Questions and Answers:

P
perezamyAug 14, 2025
What to do if my Wheel Horse A Series Tractor engine will not turn over?
- R
  Ronald GlassAug 14, 2025
  If your Wheel Horse Tractor engine won't turn over, there could be several reasons. It might be due to a dead battery, in which case you should charge or replace the battery. Another possibility is an open safety interlock switch, so ensure that the PTO is disengaged and the clutch pedal is depressed. If those steps don't work, the issue might be with the starter, solenoid, or ignition switch.
R
Richard HicksAug 17, 2025
What to do if my Wheel Horse Tractor engine turns over but will not start?
- A
  apriceAug 17, 2025
  If your Wheel Horse Tractor's engine turns over but doesn't start, check these items: * Make sure there's fuel in the tank; if not, refuel the tractor. * Ensure the fuel valve is open. * Check the spark plug condition and reset the gap. * Verify the carburetor adjustment.
A
Andrea ShepardAug 21, 2025
Why is my Wheel Horse A Series engine overheating?
- M
  Melissa OrtizAug 21, 2025
  If your Wheel Horse Tractor engine is overheating, it could be due to a few reasons. First, check if the air intake screen or fins are clogged and clean them if necessary. Also, ensure that the oil level is adequate and adjust it if it's too low. A fuel mixture that's too lean or an overloaded engine can also cause overheating, so readjust the carburetor and reduce the load on the tractor accordingly.
E
Eric HansenAug 25, 2025
Why is my Wheel Horse A Series Tractor engine hard to start?
- S
  Susan RiceAug 25, 2025
  If your Wheel Horse Tractor engine is hard to start, the spark plug might be faulty or improperly gapped; check its condition and reset the gap. Alternatively, the carburetor might be dirty or improperly adjusted; in this case, readjust the carburetor.
J
Joseph JonesAug 27, 2025
What to do if my Wheel Horse A Series Tractor engine operates erratically?
- H
  hsmithAug 28, 2025
  If your Wheel Horse Tractor engine is operating erratically, there are several things you can check. Start by checking the vent in the fuel gauge to ensure it's not plugged. Also, readjust the carburetor, check the fuel line for clogs, and drain the old fuel and replace it with a fresh supply in case there's water in the fuel.
J
Jordan RobinsonAug 31, 2025
Why does my Wheel Horse A Series engine knock?
- S
  Spencer JonesAug 31, 2025
  If your Wheel Horse Tractor engine is knocking, it could be due to overheating. Shut off the engine and allow it to cool. Another possible cause is fuel with too low an octane. Drain the fuel and replace it with a higher octane supply.
T
Tracey TurnerSep 2, 2025
Why does my Wheel Horse A Series engine occasionally skip at high speed?
- B
  brent72Sep 2, 2025
  If your Wheel Horse Tractor engine occasionally skips at high speed, the spark plugs might be fouled, faulty, or have a gap that's too wide. Check the spark plugs' condition and gap. Also, the carburetor adjustment might be incorrect, so readjust it.
A
Alex RamseySep 6, 2025
How to fix a Wheel Horse A Series Tractor engine that idles poorly?
- L
  Lisa CollinsSep 6, 2025
  If your Wheel Horse Tractor engine idles poorly, the carburetor adjustment might be improper, so readjust it. Also, the spark plug gap might be incorrect; check the spark plug's condition and gap.
L
Lori GloverSep 9, 2025
Why does my Wheel Horse Tractor engine backfire?
- M
  Matthew BuckSep 10, 2025
  If your Wheel Horse Tractor engine backfires, it is possibly due to improper carburetor adjustment. Readjust the carburetor.

Wheel Horse A Series Specifications

General

Horsepower	7, 8, 10, 12 hp (depending on model)
Transmission	Gear or Automatic
Fuel Capacity	1.5-3 U.S. gallons (depending on model)
Drive Type	2WD
Engine	Kohler
Cutting Width	42-48 inches

Summary

Vehicle Identification Numbers

Owner Registration and ID Card

Information on registering your tractor and obtaining an owner's identification card.

Parts Manual Acquisition

Details on how to obtain a separate parts manual for your equipment.

Instruments and Controls

Instrument and Control Identification

Identification and location of all tractor instruments and controls shown in diagrams.

Operating Your Tractor

Safety Interlock System

Explanation of the safety interlock system that prevents engine starting.

Engine Operation Procedures

Guidelines for starting, stopping, and general engine operation.

Throttle Control Operation

How to use the throttle control to regulate engine speed.

Choke Control Operation

Instructions for using the choke control for cold starts.

Fueling Specifications and Safety

Recommended fuel types and handling precautions for refueling.

Correct Transmission Operation

Forward and Reverse Driving

Procedure for moving the tractor forward and in reverse.

Changing Speed and Direction

How to change gears and direction safely.

Tractor Stopping Procedure

Correct procedure for stopping the tractor using clutch and brake pedals.

Mower Lift Lever Operation

How to operate the mower lift lever to adjust cutting height.

PTO Clutch Engagement and Disengagement

How to engage and disengage the PTO clutch for attachments.

Parking Brake Operation

Instructions on how to engage and release the parking brake.

Correct Tractor Usage

Rotary Mower Usage

Tips for best operation and cutting results with the rotary mower.

Mowing Speed and Height Guidance

Guidance on selecting appropriate mowing speed and cutting height.

Snow Blade Operation

Precautions and speed recommendations for using the snow blade.

Drawbar Attachment Usage

General advice for using various drawbar attachments safely.

Maintaining Your Tractor

Tractor Maintenance Checklist

A comprehensive checklist of maintenance tasks and their recommended intervals.

Engine Oil and Lubrication

Details on oil types, viscosity, checking levels, and oil changes.

Mower Maintenance Checklist Items

Specific maintenance tasks for the mower, like debris removal and lubrication.

Maintaining Your Tractor

Air Cleaner Servicing

Instructions for cleaning and servicing the air cleaner element.

Spark Plug Inspection and Replacement

Guidance on checking, gapping, and replacing the spark plug.

Carburetor Adjustment Procedures

Procedures and troubleshooting for carburetor adjustment.

Maintaining Your Tractor

Battery and Charging System Maintenance

Information on battery maintenance, electrolyte levels, and the charging system.

Brake System Adjustment

Steps for adjusting the tractor's brake caliper for proper function.

Maintaining Your Tractor

Lubrication Points and Intervals

Details on points to lubricate, types of grease, and intervals.

PTO Clutch Linkage Adjustment

How to adjust the PTO clutch linkage for proper mower belt tension.

Maintaining Your Tractor

Transmission Oil Level Check

Procedure for checking and maintaining the transmission oil level.

Tire Pressure Specifications

Recommended tire inflation pressures for front and rear tires.

Drive Belt Replacement Procedure

Step-by-step instructions for replacing the drive belt.

Maintaining Your Tractor

Mower Deck Installation

Detailed steps for installing the mower deck onto the tractor.

Maintaining Your Tractor

Mower Deck Level Adjustment

How to adjust mower deck level for optimal cutting performance.

Mower Deck Belt Replacement

Instructions for replacing the mower drive belt.

Mower Component Lubrication

Lubrication points and intervals for mower components.

Mower Blade Maintenance

Guidance on sharpening, balancing, and installing mower blades.

Mower Spindle Belt Replacement

Steps for replacing the spindle belt on the mower deck.

Troubleshooting Checklist

Engine Troubleshooting Symptoms and Causes

Common engine symptoms, their possible causes, and recommended remedies.

Wiring Diagram

General Safety Suggestions

General Safe Operation Practices

General safety rules for operating the tractor and its attachments.

Riding Vehicle Fuel and Storage Safety

Specific safety advice related to handling gasoline and operating riding vehicles.
