Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 16 of 36
www.whipplesuperchargers.com

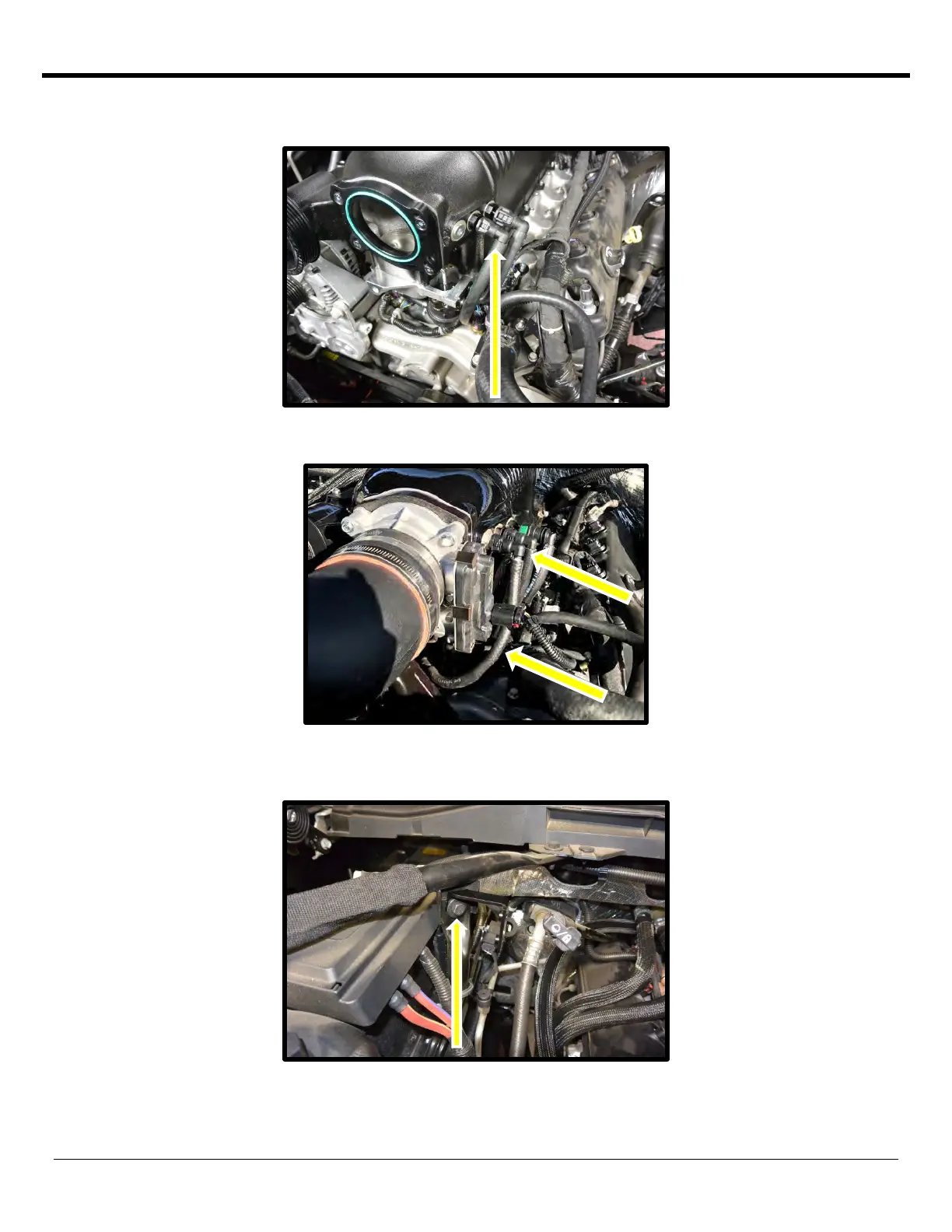

44. Route the EVAP solenoid hose and the 90deg quick connect fitting up to the forward quick connect fitting on
drivers side SC inlet. Push until it clicks and locks in place.
45. Install the supplied ¼” bypass actuator hose and 90deg fittings to the SC inlet 7.89mm quick connect fitting.
46. Remove the factory fender support brace bolt using a 13mm socket. Install the supplied filler tube bracket and
secure using the factory fastener.
