Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 17 of 36
www.whipplesuperchargers.com

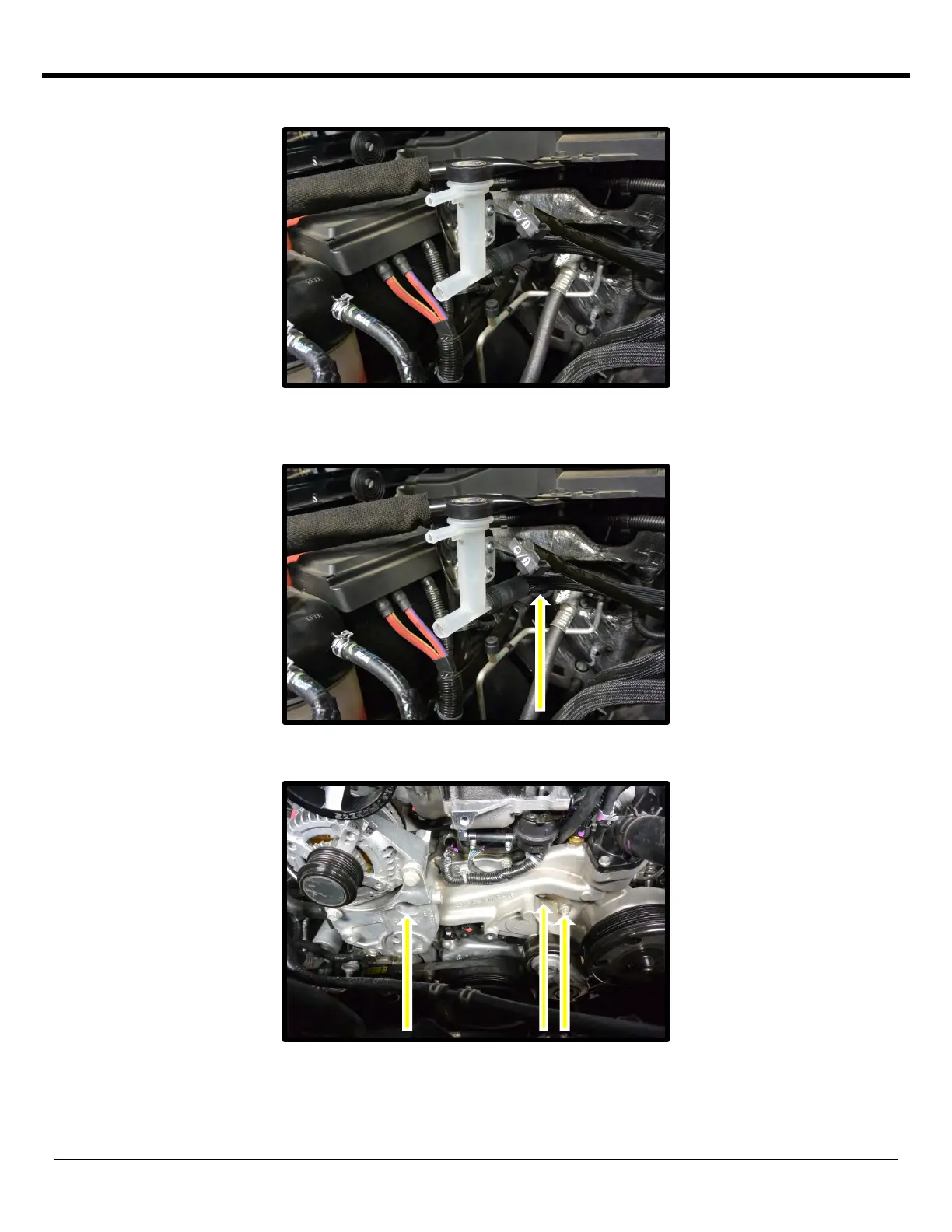

47. Install the IC filler tube to the bracket using the supplied (2) 6mm x 12mm BHCS (4mm allen socket).
48. Connect the previously installed IC hose (5/8” to ¾” 24” L) to the rear 3/4” boss on filler neck. Secure with
supplied pinch clamp.
49. Remove the (3) factory fasteners using a 13mm socket on driver side and 15mm socket on passenger side.
50. Using a 15mm socket, loosen the spring-loaded tensioner so it can rotate out of the way for the idler plate
installation.
