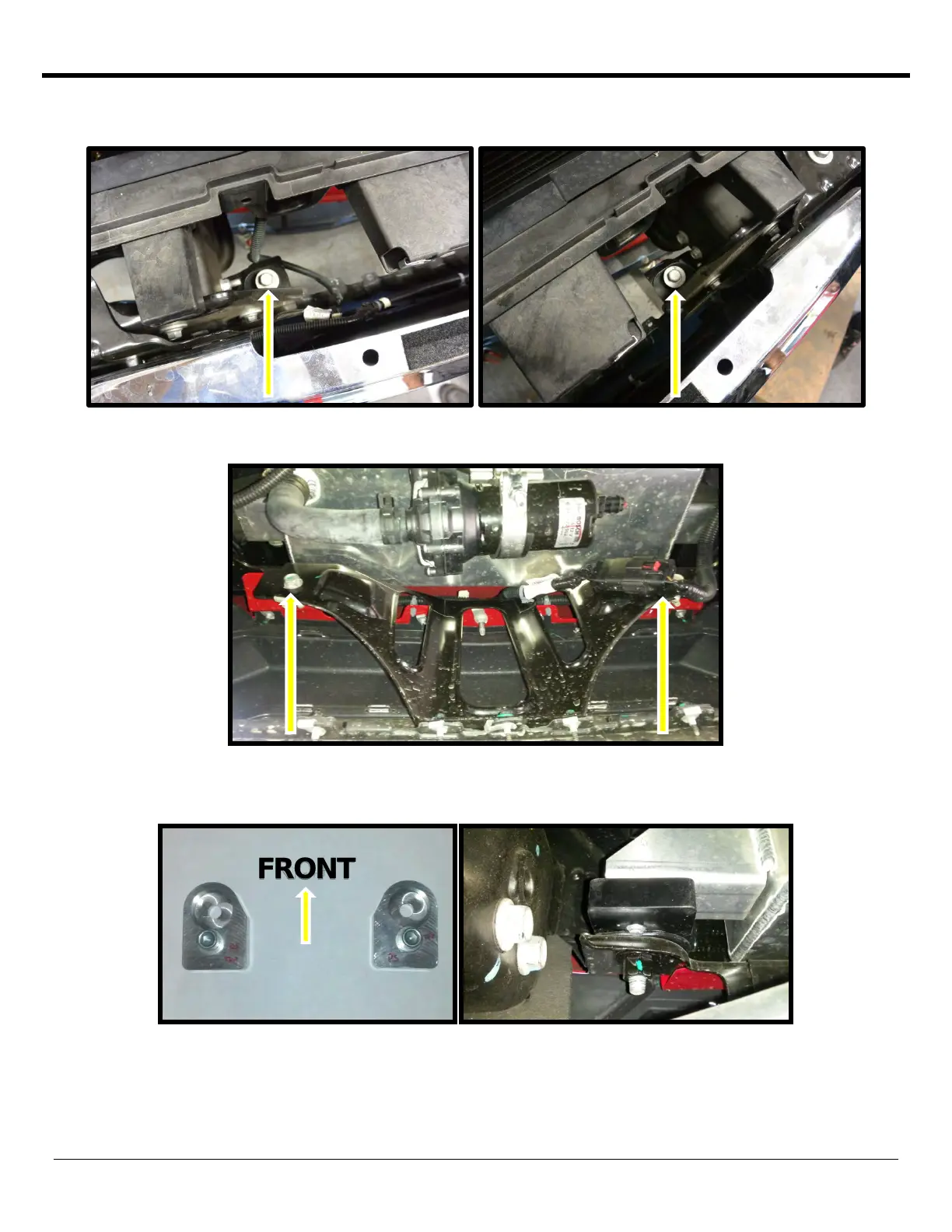

76. (Trucks only) Remove the (2) factory fasteners that secure the frame to the bumper (18mm socket) for the IC
reservoir installation.
77. (MY2016 and up truck) Unbolt bumper support bracket.
78. (MY2016 and up truck) Install I/C tank offset brackets on top of frame to bumper mounts reinstall factory bolts
using an 18mm socket, torque to 74 ft/lbs.
