Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 26 of 36
www.whipplesuperchargers.com

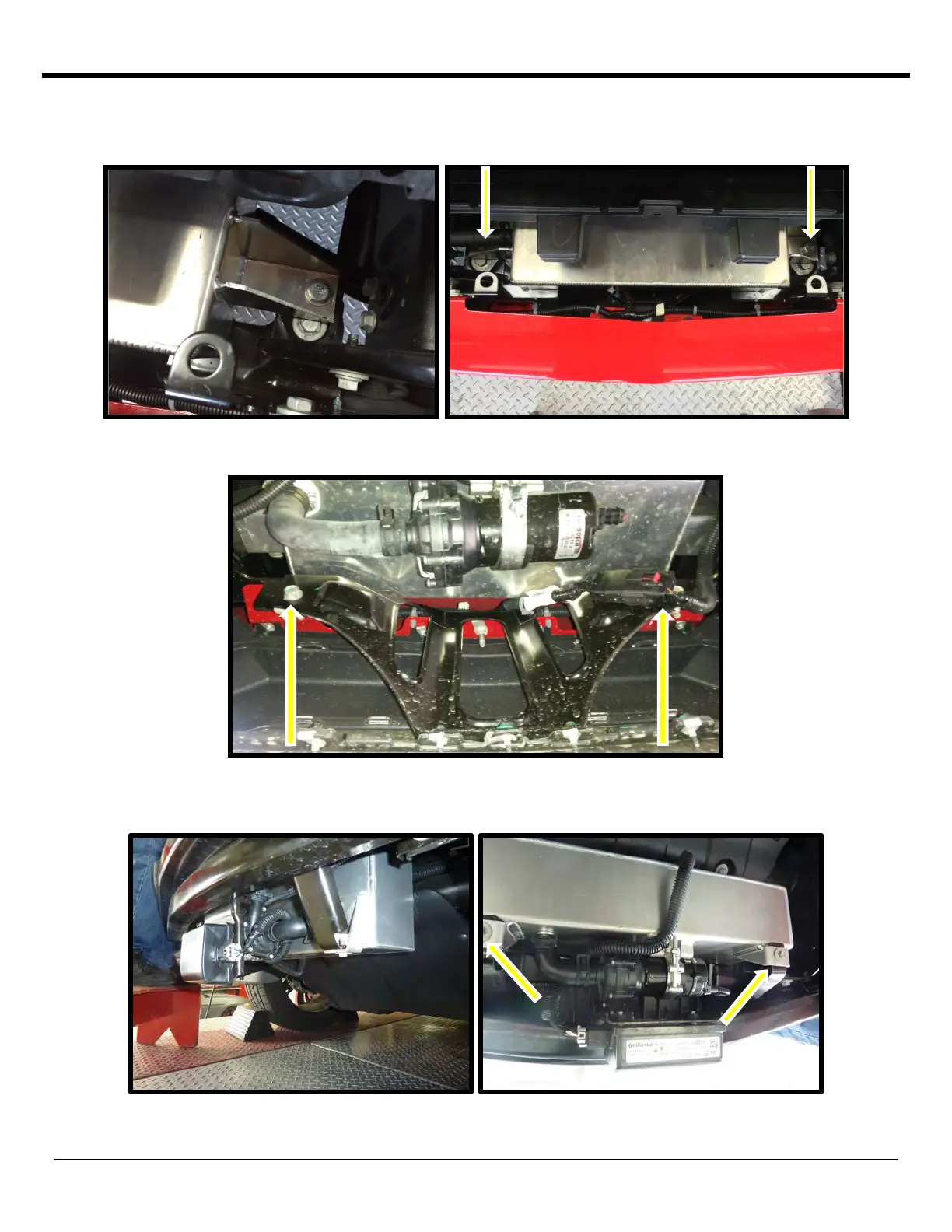

79. (MY2016 and up truck) Install the IC reservoir by sliding up from the bottom of the bumper and resting on the
I/C tank offset mounts. Secure reservoir to mounts with the (2) 10mm x 20mm SHCS and (2) 10mm flat washers,
use a 10mm allen socket, torque to 74 ft/lbs.
80. (MY2016 and up truck) Reinstall spoiler support bracket.
81. (SUV applications) Install the IC reservoir to the factory bumper brackets. Use the factory fastener to secure
reservoir to brackets from the bottom side.
