Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 31 of 36
www.whipplesuperchargers.com

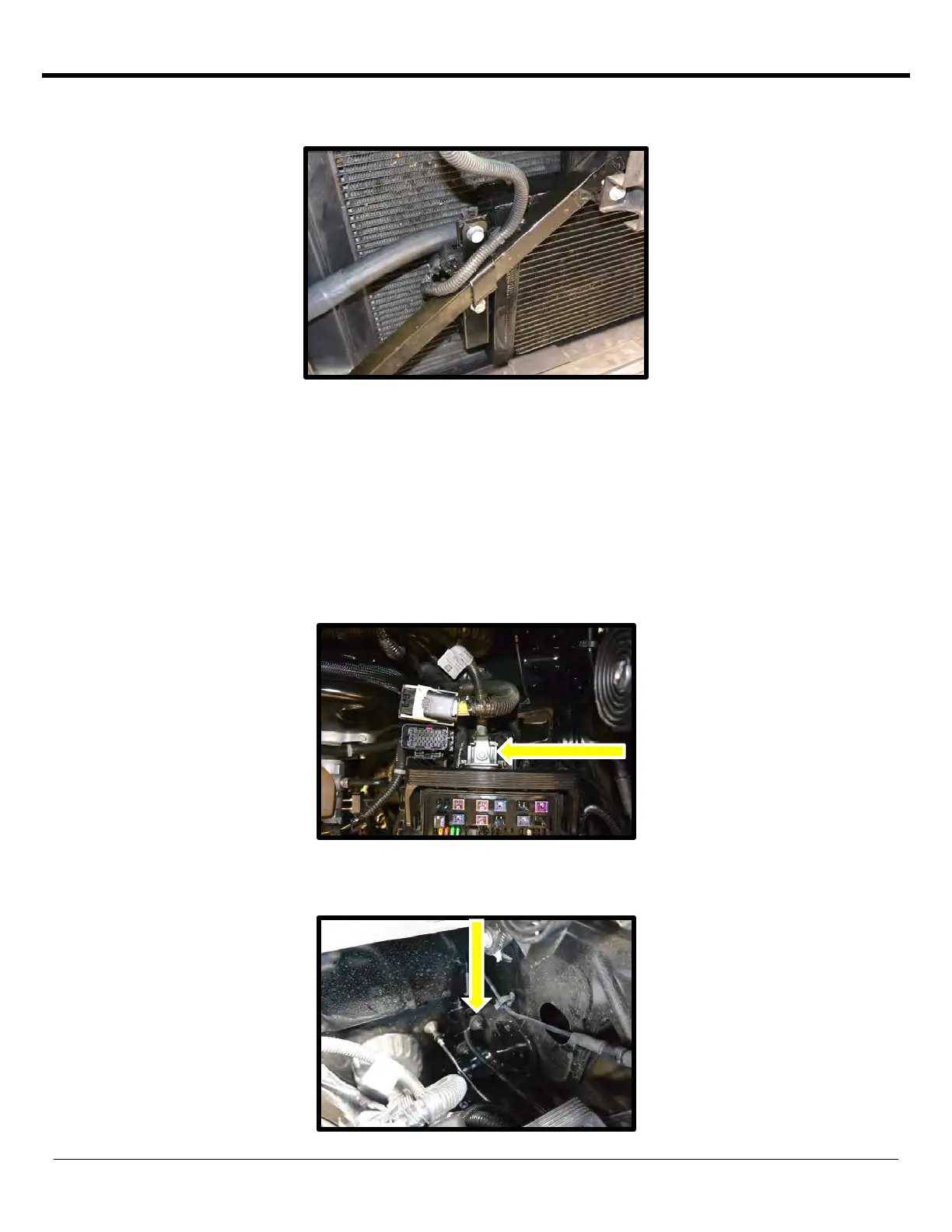

97. Reinstall the factory ambient air temp sensor into factory location. Reconnect plastic harness tab into factory
location but from the front side.
98. (2016 and up with air shutters) Reinstall the air shutters into factory location. Make sure the shutters have
adequate clearance from the LTR and hoses.
99. Using the supplied MAF to IAT pigtail to the MAF sensor factory connector. Connect the pigtail end to the MAF.
Route the other end down the passenger side valve cover to the rear of the manifold. Connect the 2-way connector
the supplied IAT sensor at the back of the manifold.
100. Remove the factory fuse box cover on driver side of engine compartment.
101. Install the IC pump power eyelet to the factory post located at the rear of the fuse box. Remove factory nut, install
IC pump eyelet and secure with factory nut.
102. Install the IC pump ground to the factory stud and nut located on the driver side firewall. Remove factory nut,
install the IC pump ground eyelet and secure with factory nut.
