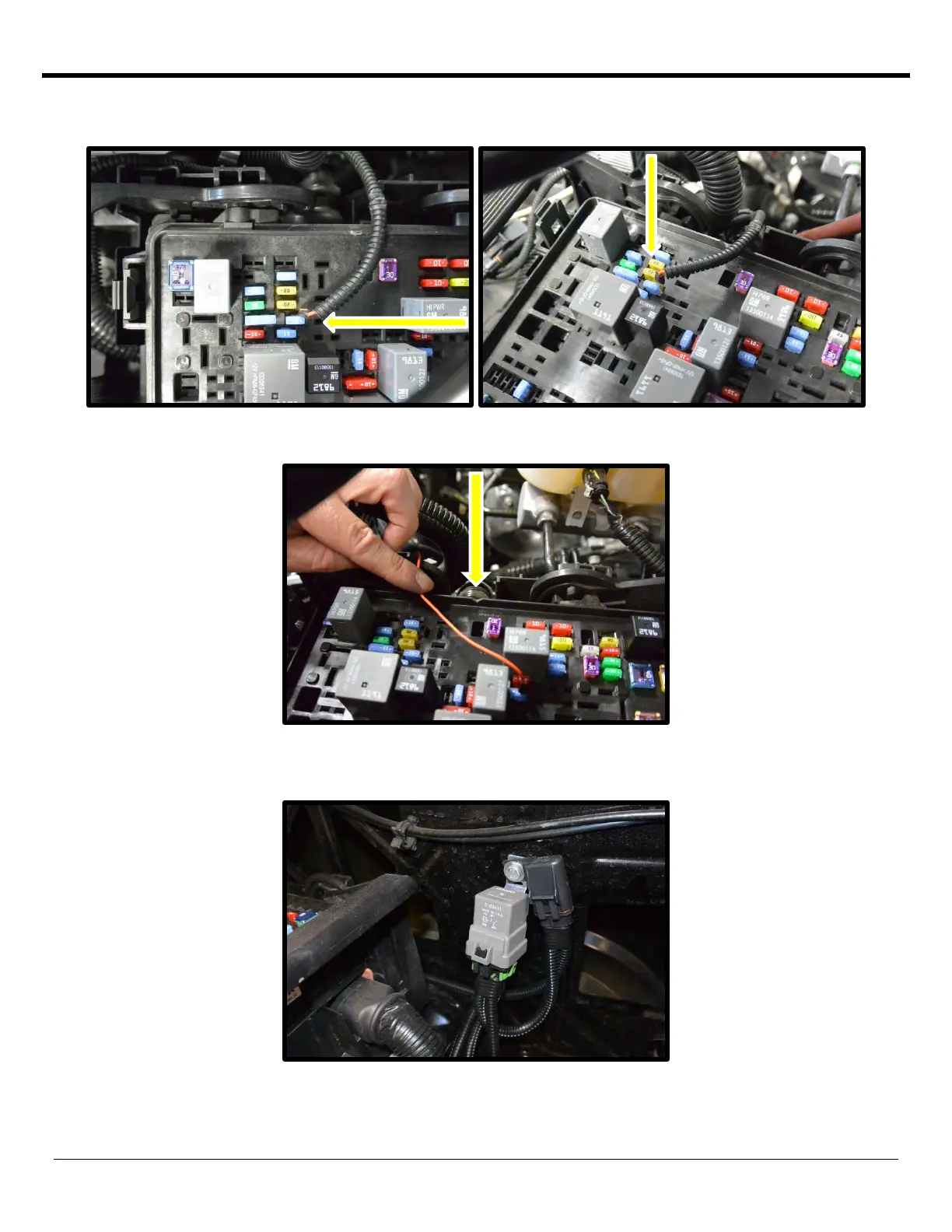

103. Install the fuse tap to the leg of the 15amp fuse located in location #46 (O2 Sensor B). Make sure the fuse tap is
on the back most leg of the fuse (closest to the firewall).
104. Use a pair of wire cutters to make a small V notch on the factory fuse box base (so wire does not get cut).
105. Install the intercooler relay and fuse holder to the factory driver side fender using the supplied 6mm x 20mm
bolt/flat washer and the 6mm nut, washer and lock washer to secure.
