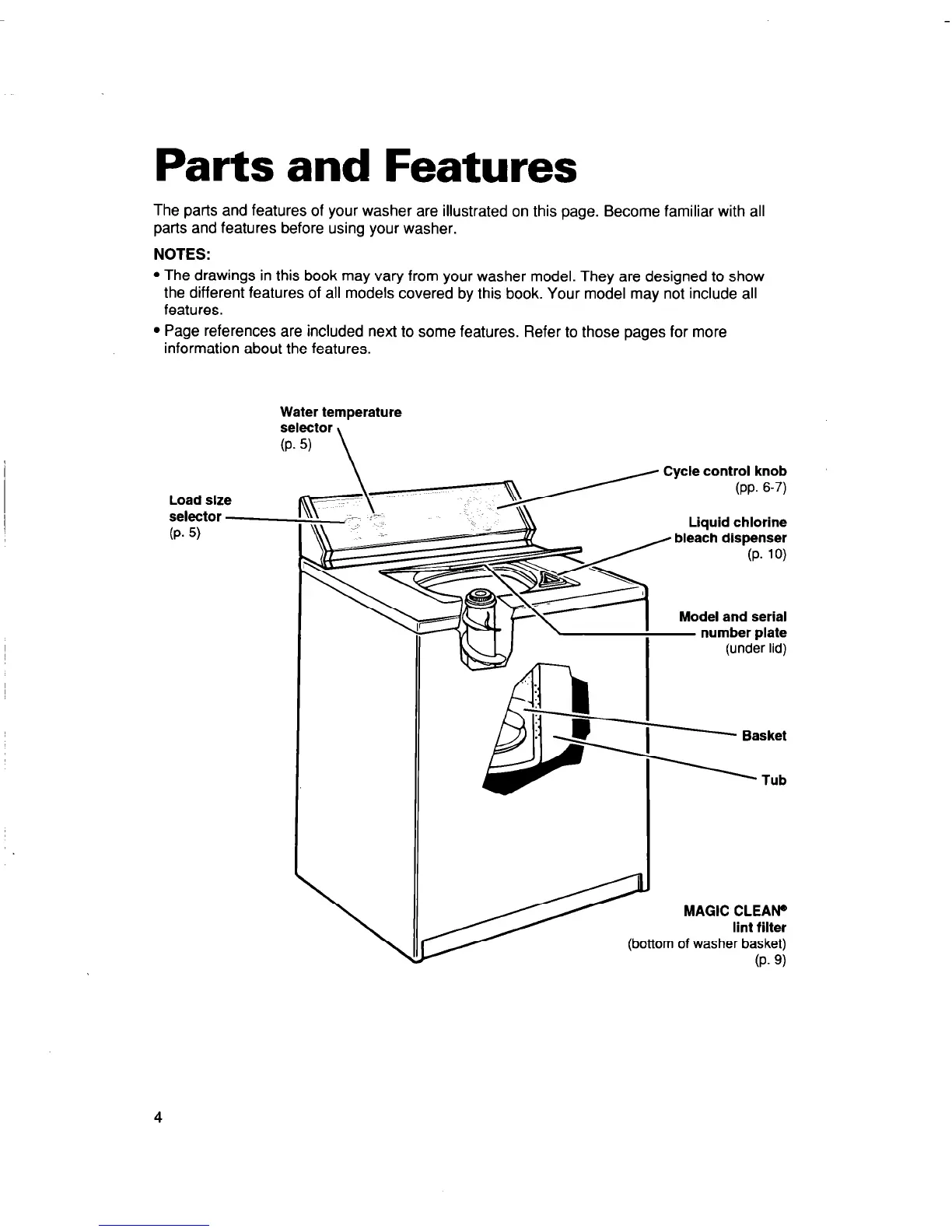

Parts and Features
The parts and features of your washer are illustrated on this page. Become familiar with all
parts and features before using your washer.
NOTES:
l The drawings in this book may vary from your washer model. They are designed to show
the different features of all models covered by this book. Your model may not include all
features.
l Page references are included next to some features. Refer to those pages for more
information about the features.
Water temperature
selector
(P. 5)
\
Load size
selector -
(P. 5)
Liquid chlorine
bleach dispenser
Model and serial
number plate
(under lid)
(bottom of washer
basket)
(P. 9)
- Basket
ITub
MAGIC CLEAFP
lint filter
4
