5-2

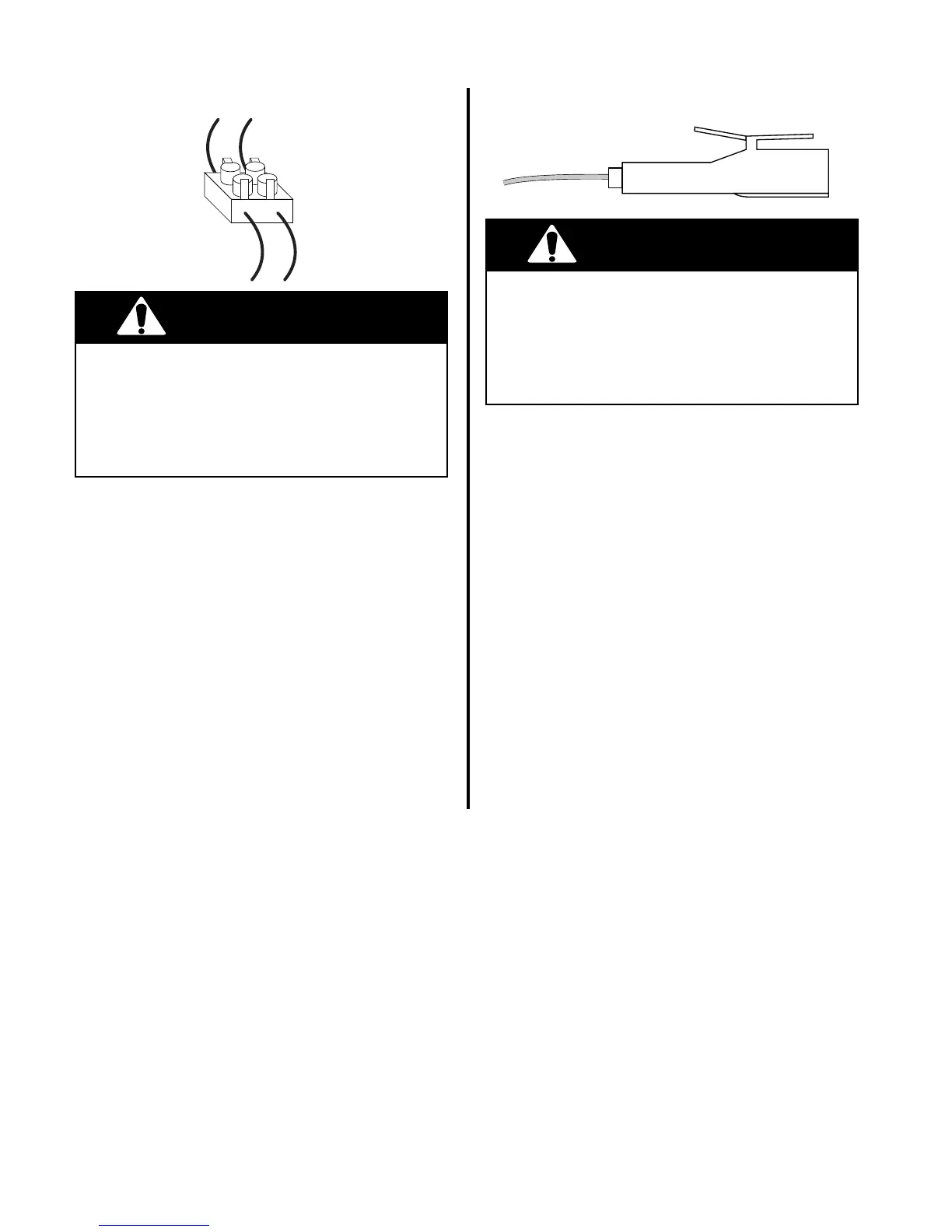

HOT SURFACE INDICATOR LIGHTS
SURFACE INDICATOR LIGHT
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in electrical
shock or other personal injury.
WARNING
Test Procedure
Refer to page 4-4 for the location of the sur-
face indicator lights and the procedure for
servicing them.
To test a surface indicator light, perform the
following steps:
1. Use a voltmeter and set it to read 120-volts
AC.
2. With power applied, measure across the
light terminals. If the reading is 0-volts, check
the wiring. If the meter reads 120-volts AC,
replace the indicator light.
Electrical Shock Hazard
Disconnect from electrical supply before ser-
vicing unit.
Failure to do so could result in electrical
shock or other personal injury.
WARNING
Test Procedure
Refer to page 4-8 for the location of the hot
surface indicator lights and the procedure for
servicing them.
To test the hot surface indicator lights, per-
form the following steps:
1. Use a voltmeter and set it to read 120-volts
AC.
2. With power applied, measure across the
light terminals. If the reading is 0-volts,
check the wiring. If the meter reads 120-
volts AC, replace the hot surface indicator
light assembly.
