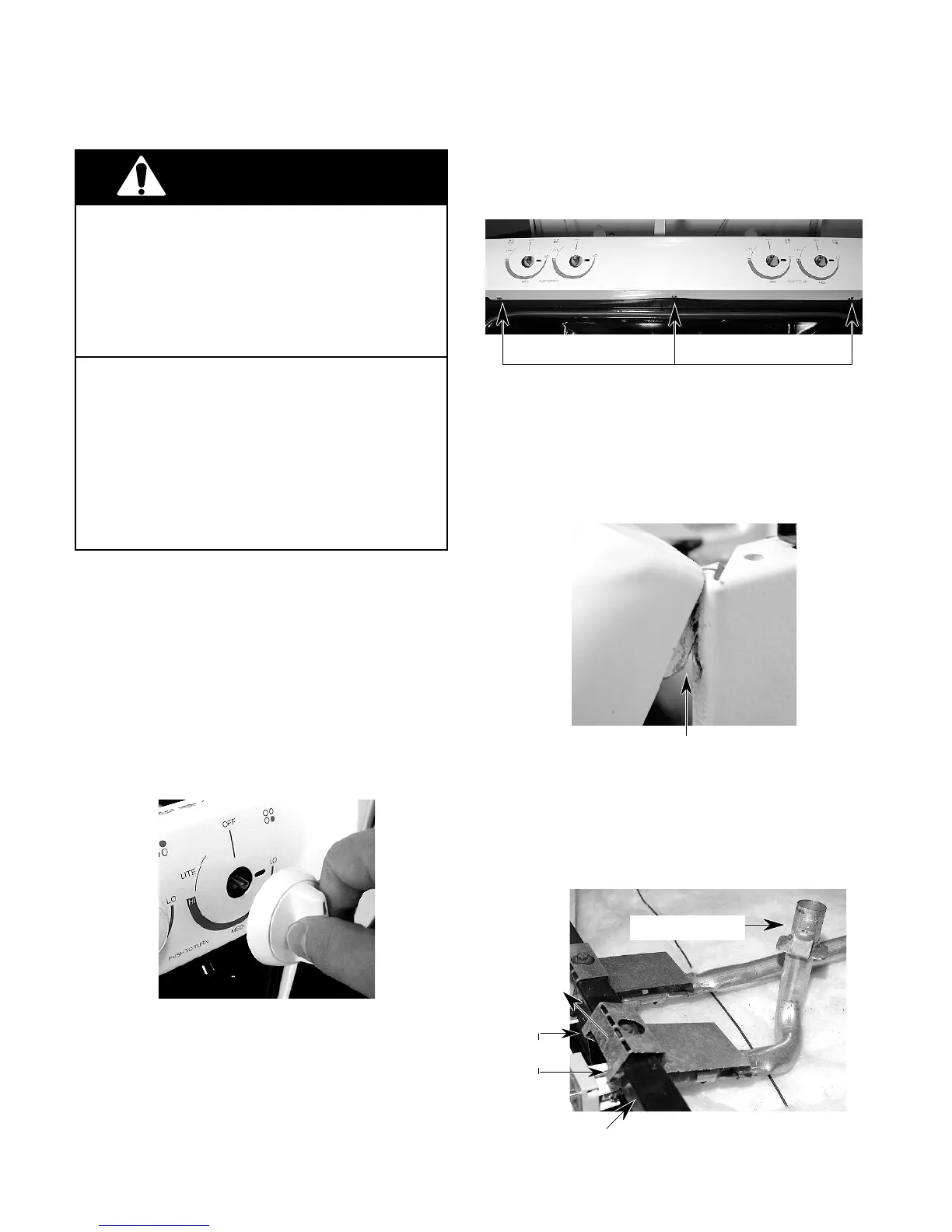

REMOVING A BURNER VENTURI, IGNITOR SWITCHES,
GAS VALVE, & GAS DISTRIBUTION VALVE
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
1. Turn off the gas and electrical power going
to the range.
2. Raise the cooktop and prop it up (see
page 3-2).
3. Remove the four front panel knobs.
CAUTION: When you work on the gas range,
be careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.
WARNING
FIRE HAZARD
Shut off gas supply line valve before servic-
ing the range.
Check all gas line connections and replace
all panels before operating the range.
Failure to do so could result in explosion, fire,
or other injury.
6. To remove a burner venturi, pull the
bottom two clips forward until they are free
of the gas manifold, then raise the burner
venturi, and pull it off the outlet of the gas
valve.
5. Pull the bottom of the front panel forward
and then pull down to unhook the two clips
from the slots in the side panels. Remove
the front panel and the three bottom spac-
ers that are between the panel and chas-
sis.
Front Panel Clip
3 Front Panel Screws
4. Open the oven door and remove the three
mounting screws from the bottom of the
front panel.
Burner Venturi
Gas Manifold
Clips
Pull
Forward
