3-5
NOTE: The ignitor switches must be replaced
as an assembly. They are not individually re-
placeable.

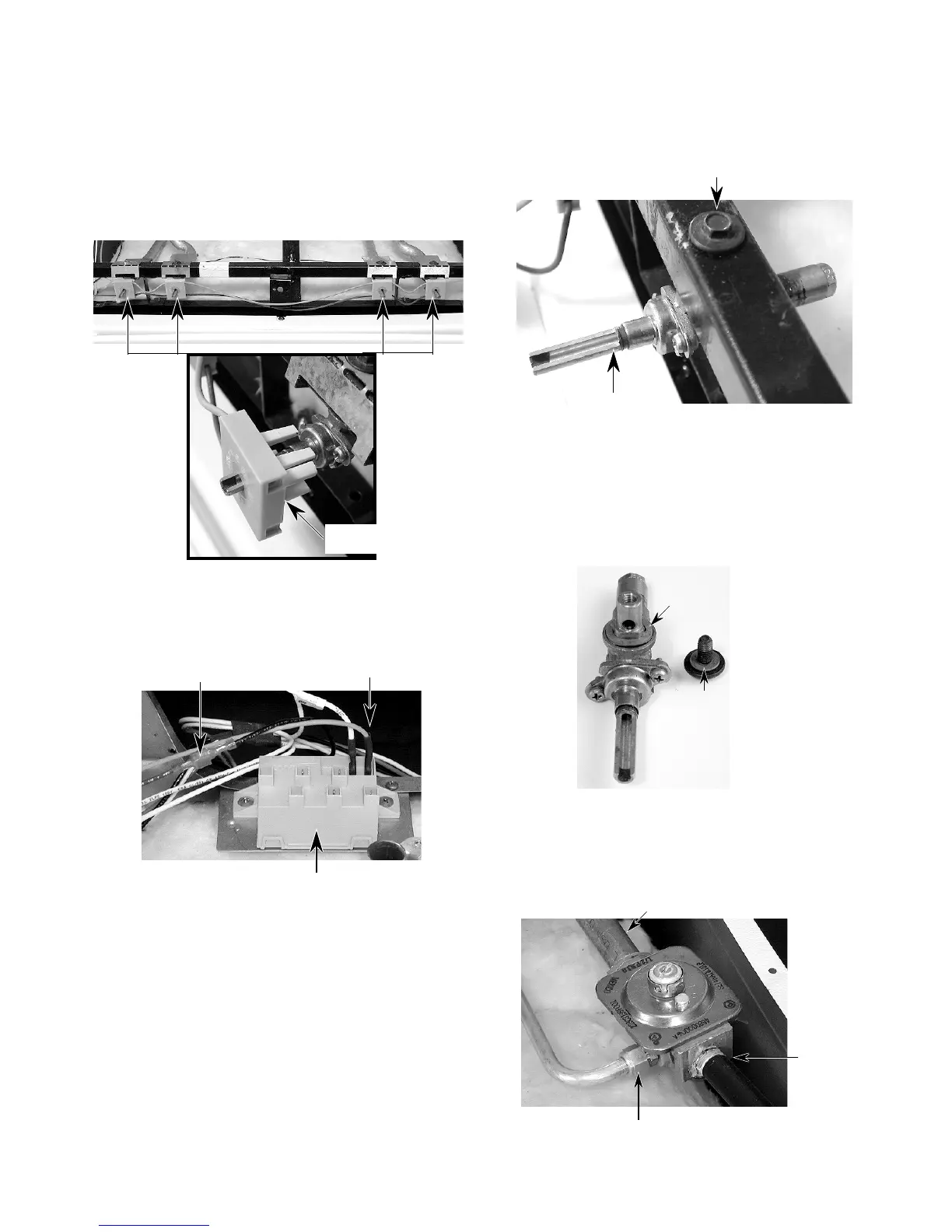

7. To remove the ignitor switches:
a)Pull the switches off the gas valve
stems.
b)Disconnect the red wire from the spark
module terminal and the black wire con-
nector from the wiring harness.
Ignitor Switch
c) Remove the two switch wires from the
side panel clip.
8. To remove a gas valve:
a) Remove the burner venturi from the gas
valve you are servicing (see step 6).
Red Wire
Black Wire
Spark Module
REASSEMBLY NOTE: Make sure that the
rubber gas valve washer and the mounting
screw washer are both in good condition. If
they are ripped, cracked, or have a broken
surface, replace them before reinstalling the
gas valve on the manifold.
b) Remove the screw and flat washer from
the gas valve and remove the valve from
the gas manifold.
9. To remove the gas distribution valve:
a)Remove the gas inlet and outlet lines.
b)Unscrew the valve from the manifold.
Gas Inlet
Gas Outlet
Gas
Manifold
Gas Valve Washer
Mounting Screw
Washer
Gas Valve
Gas Valve Screw & Flat Washer
To Next Page
