3-8

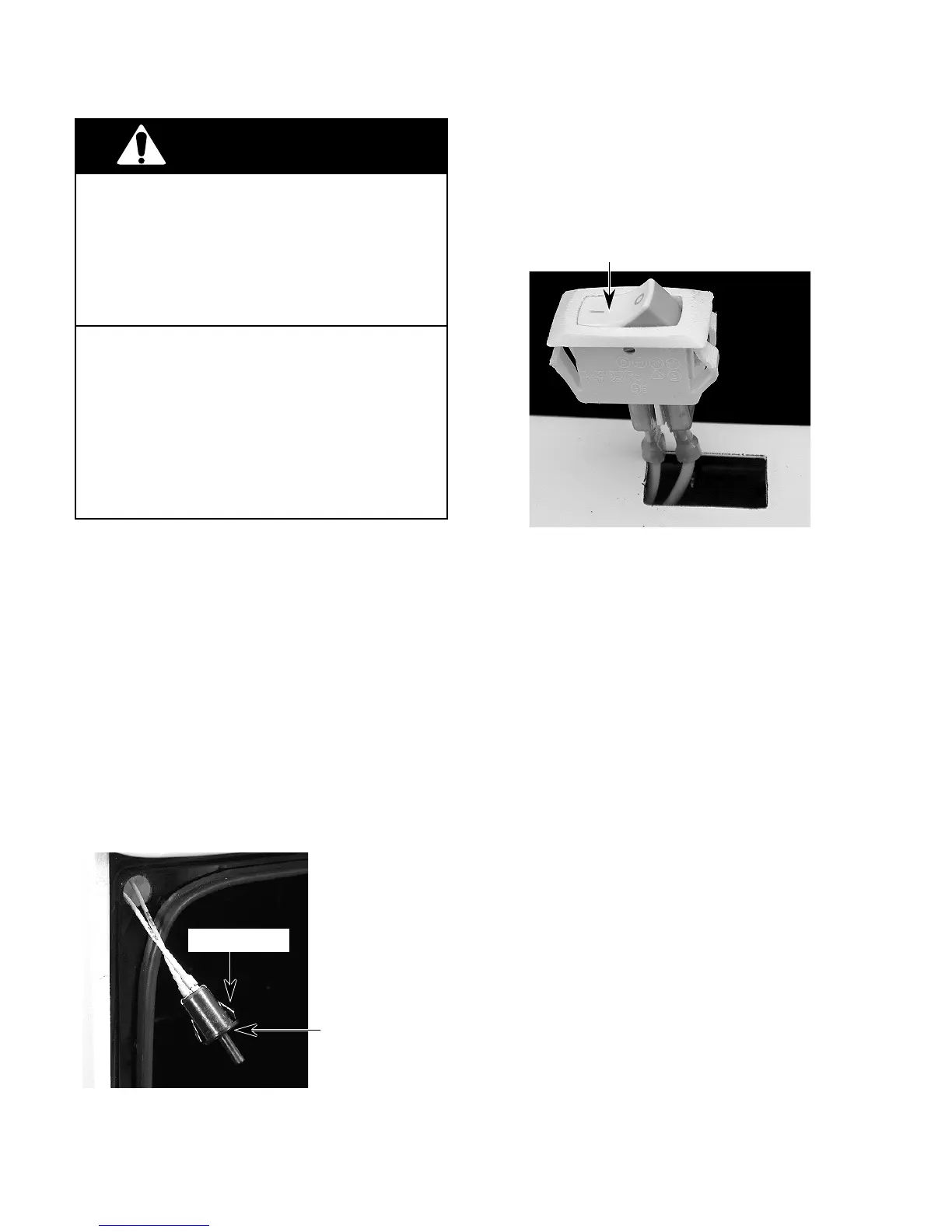

REMOVING THE DOOR SWITCH & OVEN LIGHT SWITCH
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
CAUTION: When you work on the gas range,
be careful when handling the sheet metal parts.
Sharp edges may be present, and you can cut
yourself if you are not careful.
WARNING
FIRE HAZARD
Shut off gas supply line valve before servic-
ing the range.
Check all gas line connections and replace
all panels before operating the range.
Failure to do so could result in explosion, fire,
or other injury.
3. To remove the oven light switch:
a)Pry the oven light switch out of the con-
trol panel cutout. CAUTION: Be care-
ful not to chip the paint around the
cutout.
1. Turn off the gas and electrical power going
to the range.
2. To remove the door switch:
a)Raise the cooktop and prop it up (see
page 3-2).
b)Open the oven door.
c) Squeeze the locking arms on the door
switch and push the switch out of the
oven liner hole.
d)Disconnect the wires from the door
switch terminals.
b)Disconnect the wires from the switch
terminals.
Oven Light Switch
Locking Arm
Door Switch
To Next Page
