3-4

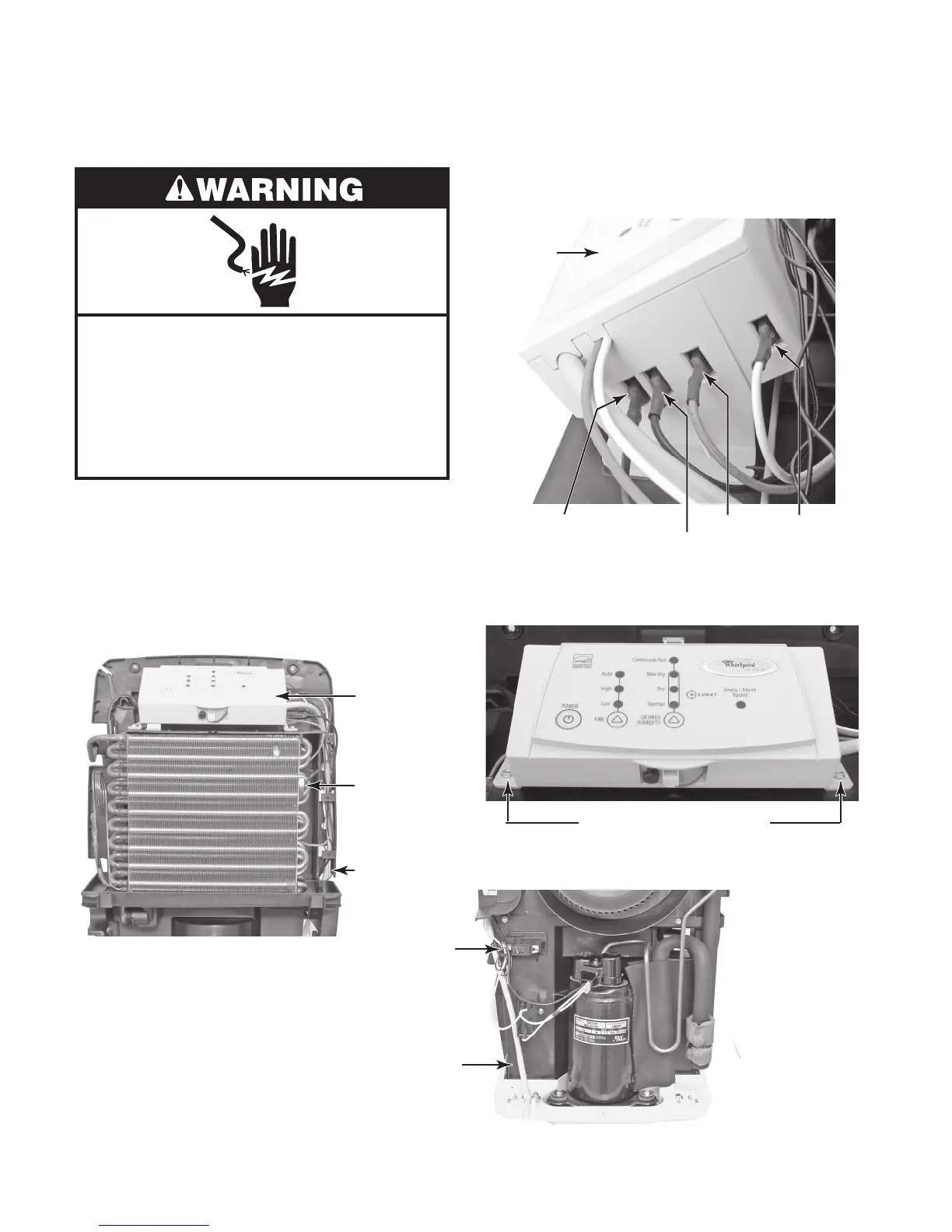

REMOVING THE ELECTRONIC CONTROL,
THERMISTOR, AND POWER SUPPLY CORD
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dehumidifier or disconnect power.
2. Remove the cabinet from the dehumidi-
fier (see page 3-2 for the procedure).
NOTE: The electronic control, thermistor, and
power supply cord are hard-wired together
and are serviced as an assembly.
Electronic
Control
Thermistor
3. Disconnect the four wire connectors from
the electronic control.
Power
Supply
Cord
Black (Compressor)
Black (Fan Motor)
Orange
White
Electronic
Control
4. Remove the two hex-head screws from
the electronic control.
Bucket Switch
Power Supply Cord
Rear View
Front View
Electronic Control Screws
To Next Page
