Whirlpool AD50USS - Power Supply Cord Removal Procedure; Power Cord Wire Disconnection; Power Cord Ground Wire Removal

3-7

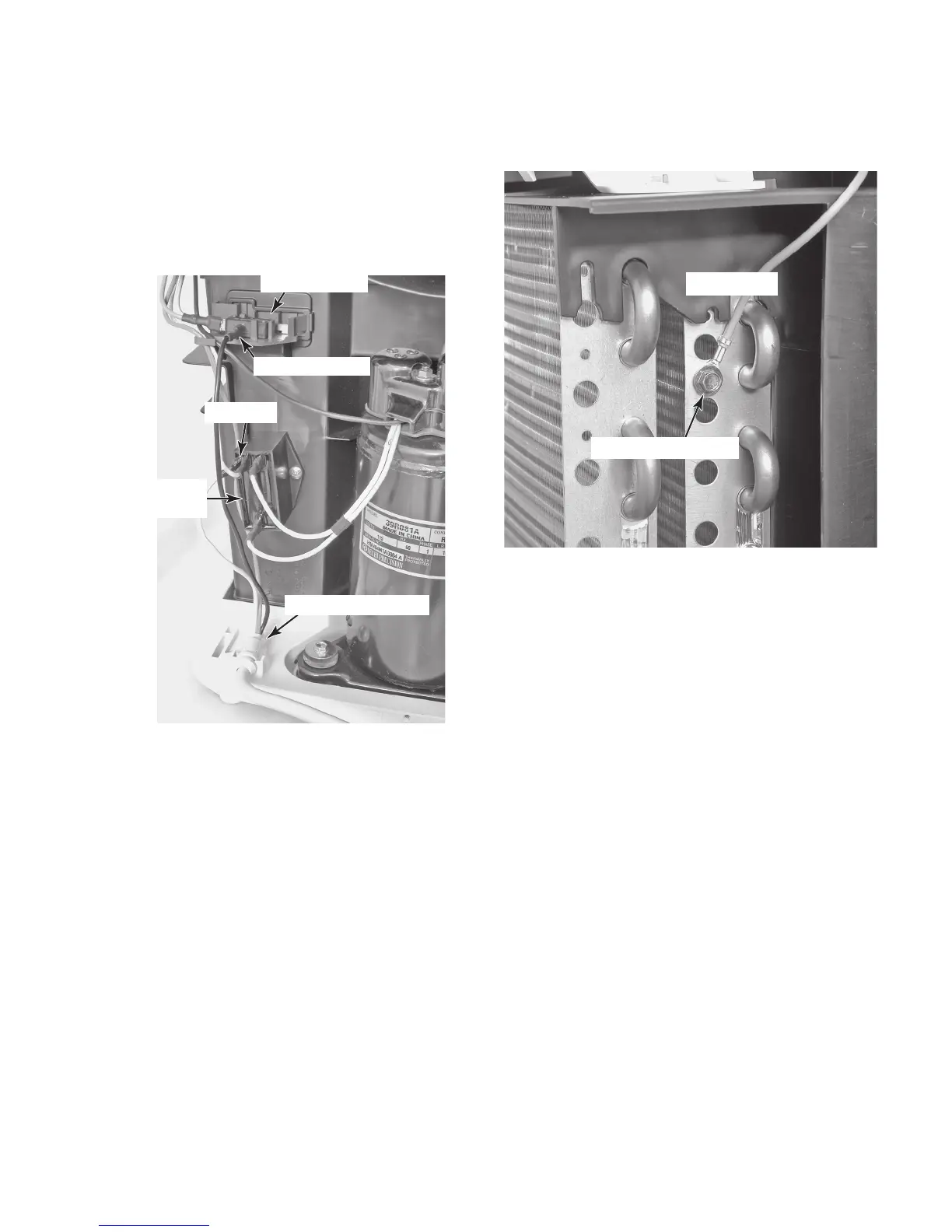

8. To remove the power supply cord:
a) Disconnect the white power supply
cord wire from the compressor capaci
-
tor terminal.
b) Disconnect the black power supply
cord wire from the COM terminal of
the bucket switch.
Bucket Switch
BK (COM) Wire
WH Wire
Power Supply Cord
c) Remove the hex-head screw from the
green ground wire at the top of the
condenser.
Condenser
Ground Wire Screw
d) Remove the power supply cord from
the dehumidifier.
Compressor
Capacitor
