SERVICE
Whirlpool Europe ADG 751 14.05.2001 / Page 3
Customer Service 8511 751 10610 Doc. No: 4812 718 16537
Technical data
Drain pump motor
Voltage 230/ 240 V
Frequency 50 Hz
Resistance 110 - 260 Ω
Pump height max. 0.9 m
Power 10 l/m
Heating - Flow Heater
Voltage 220/ 240 V
Frequency 50 Hz
Power consumption 2.15 kW
Resistance ~ 22 Ω

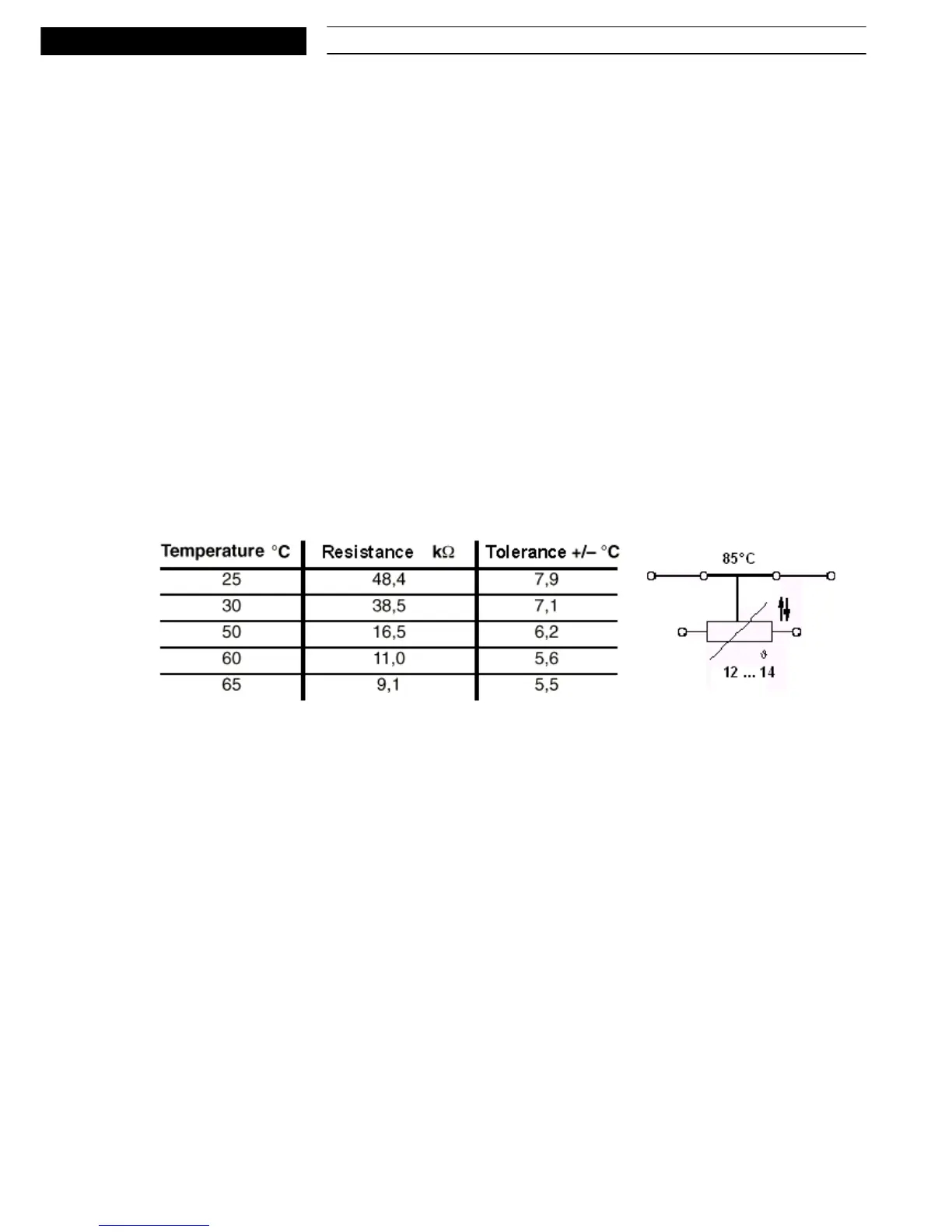

Thermostats
NTC 85 ˚C
Double electric inlet valve at water stop hose/ Aqua-Stop-Valve
Voltage 220/ 240 V
Frequency 50 Hz
Resistance 2.0 kΩ
The water pressure should be between: 0,5 - 10 bar
Flowrate 2.75 l/min
Regenerating valve
Voltage 230 - 240 V
Frequency 50 Hz
Resistance 2.45 kΩ
Reed contact
salt control
rinse aid control
Floater switch
Water leakage
