SERVICE
Whirlpool Europe 10.10.1995 / Page 3
Customer Service Doc. No: 4812 712 11084
Technical data
Control unit
Type A1 D22 (4819 214 78443)

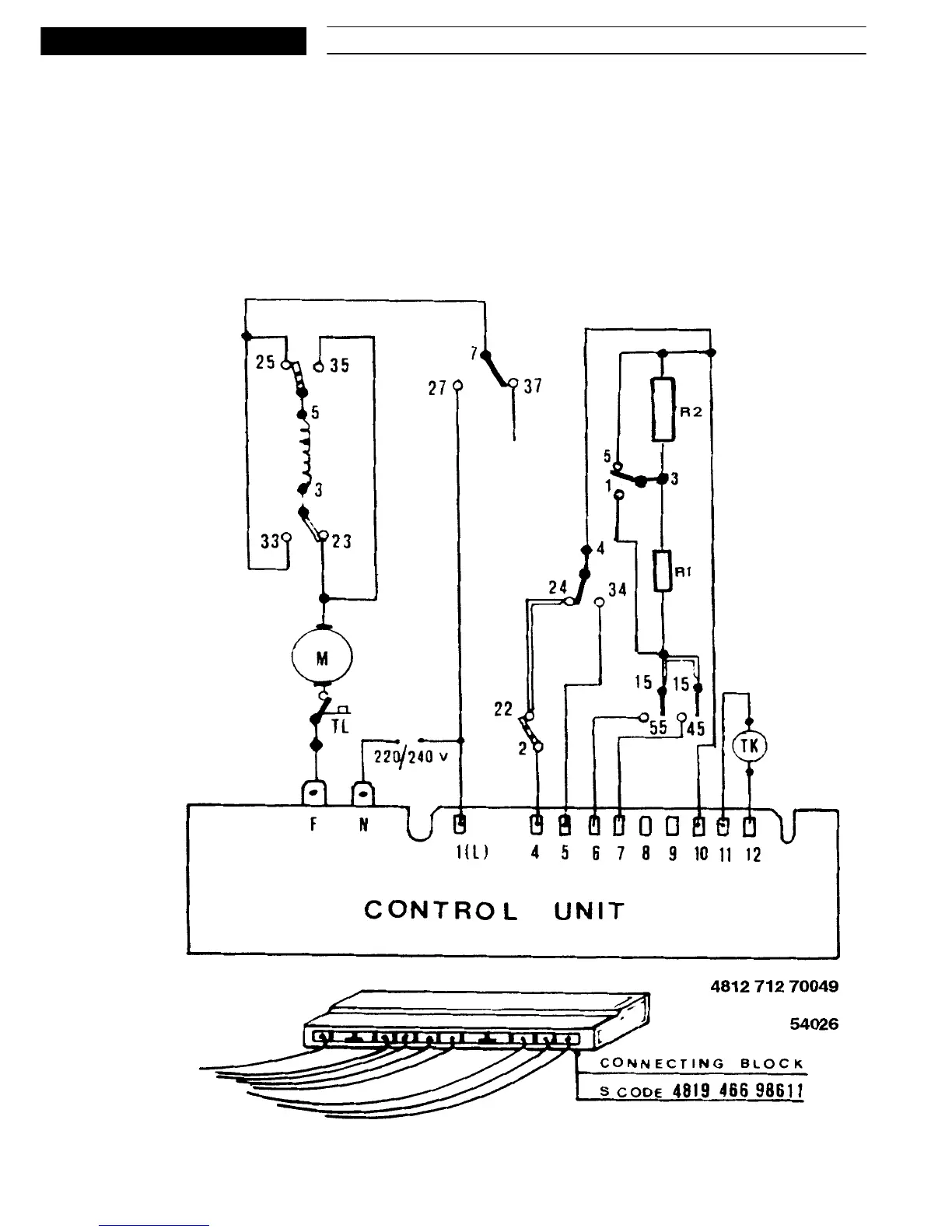

Connection of the control unit
W - Main wash contacts 7-27 and alternative 3-23 / 5-25 /
3-33 / 5-25
D - Pre-spinning contacts 3-23 / 4-34 /5-25
S - Spinning contacts 3-23 / 5-25 / 7-37
