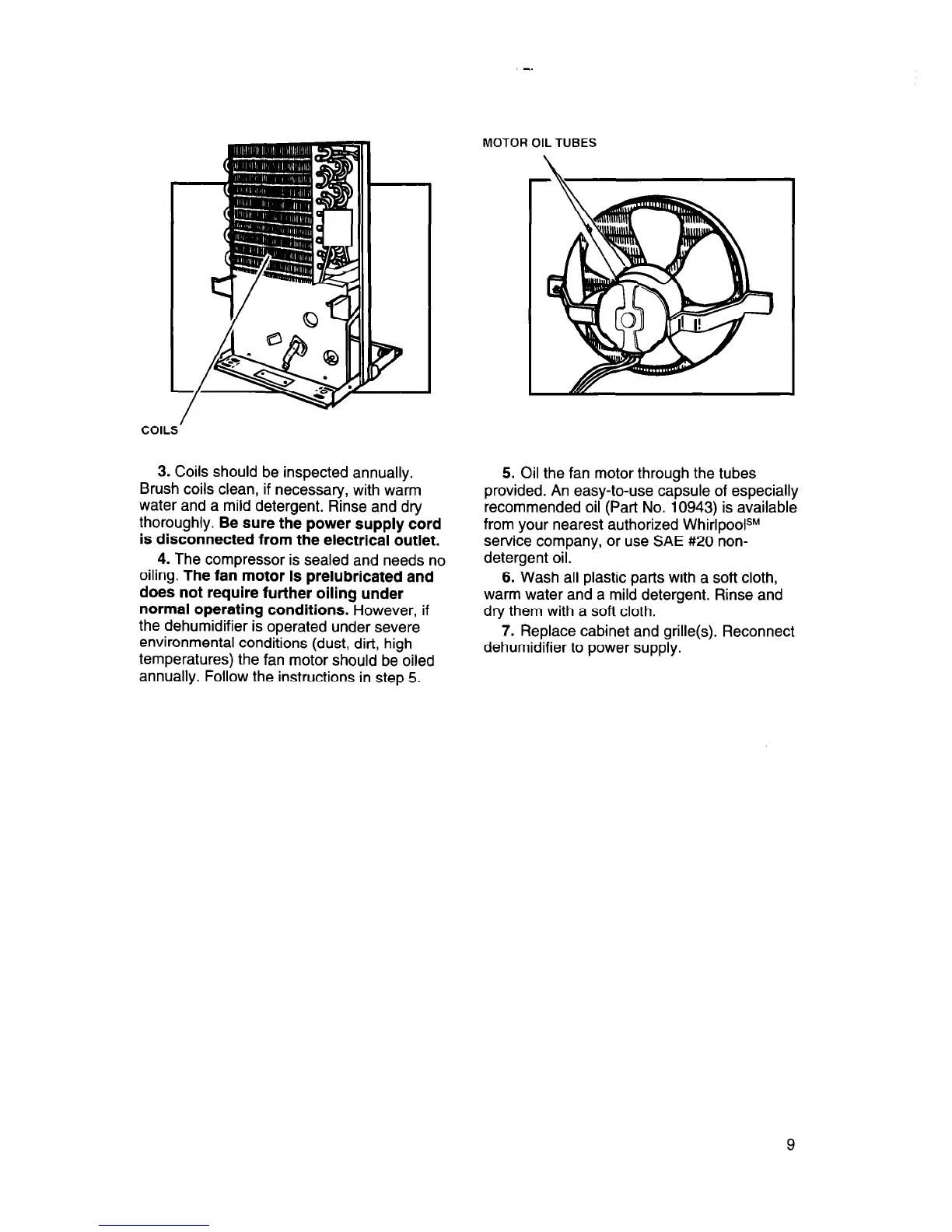

3. Coils should be inspected annually.
Brush coils clean, if necessary, with warm
water and a mild detergent. Rinse and dry
thoroughly. Be sure the power supply cord
is disconnected from the electrical outlet.
4. The compressor is sealed and needs no
oiling. The fan motor is prelubricated and
does not require further oiling under
normal operating conditions. However, if
the dehumidifier is operated under severe
environmental conditions (dust, dirt, high
temperatures) the fan motor should be oiled
annually. Follow the instructions in step 5.
MOTOR OIL TUBES
5. Oil the fan motor through the tubes
provided. An easy-to-use capsule of especially
recommended oil (Part No. 10943) is available
from your nearest authorized WhirlpoolSM
service company, or use SAE #20 non-
detergent oil.
6. Wash all plastic parts with a soft cloth,
warm water and a mild detergent. Rinse and
dry them with a soft cloth.
7. Replace cabinet and grille(s). Reconnect
dehumidifier to power supply.
