Whirlpool DU910PFG - Replacing the Spring Loaded Locking Tab

32
Replacing the Spring Loaded Locking Tab

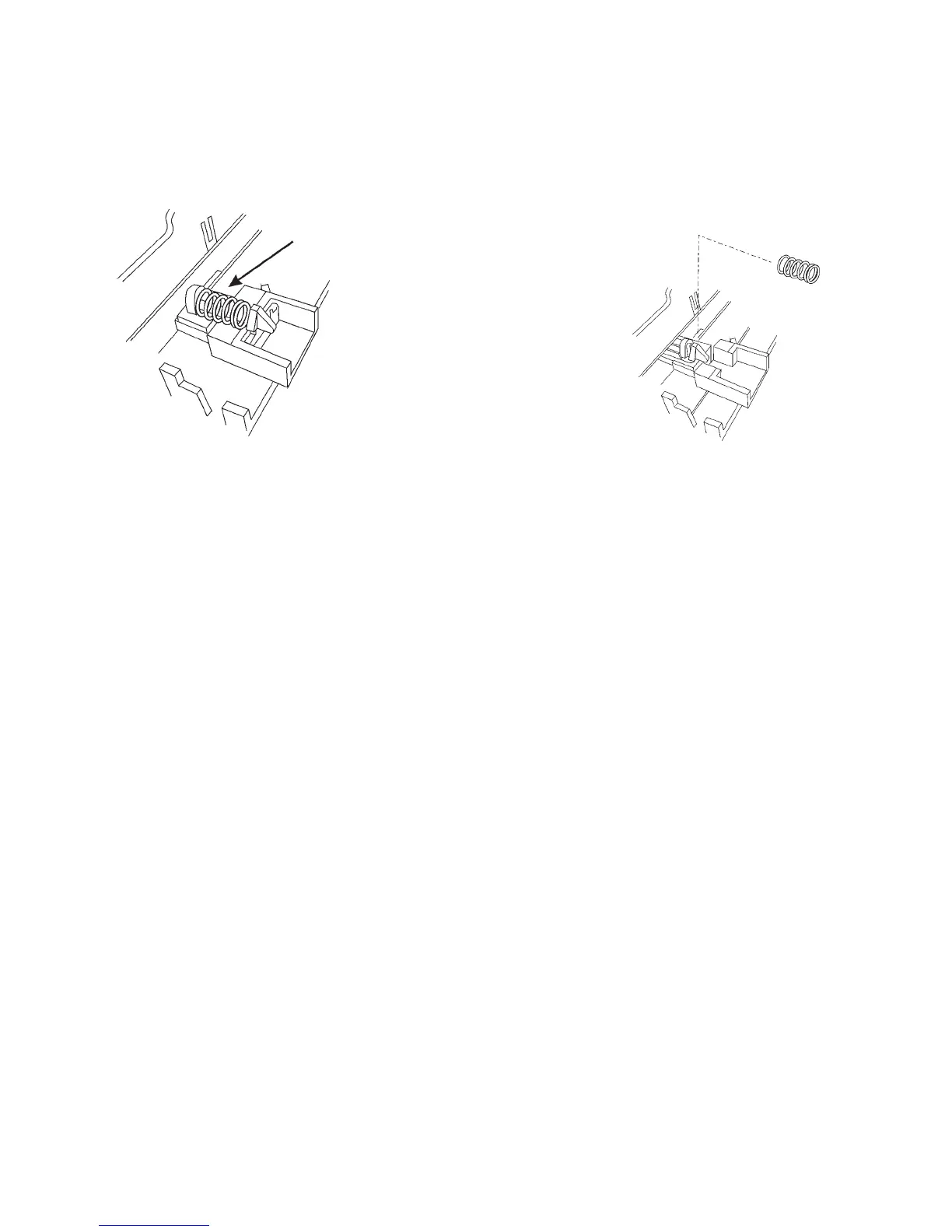

The inner door panel is held in place by a spring loaded locking tab located on the door frame rail, just
below the console.
(Fig. 2-14)
To remove this assembly, remove the spring and slide the locking tab back until the locating tab is in
the key hole.
(Fig. 2-15) Then lift the locking tab up. To replace the assembly, reverse this procedure.
Locking Tab
Assembly
Fig. 2-14
Fig. 2-15
