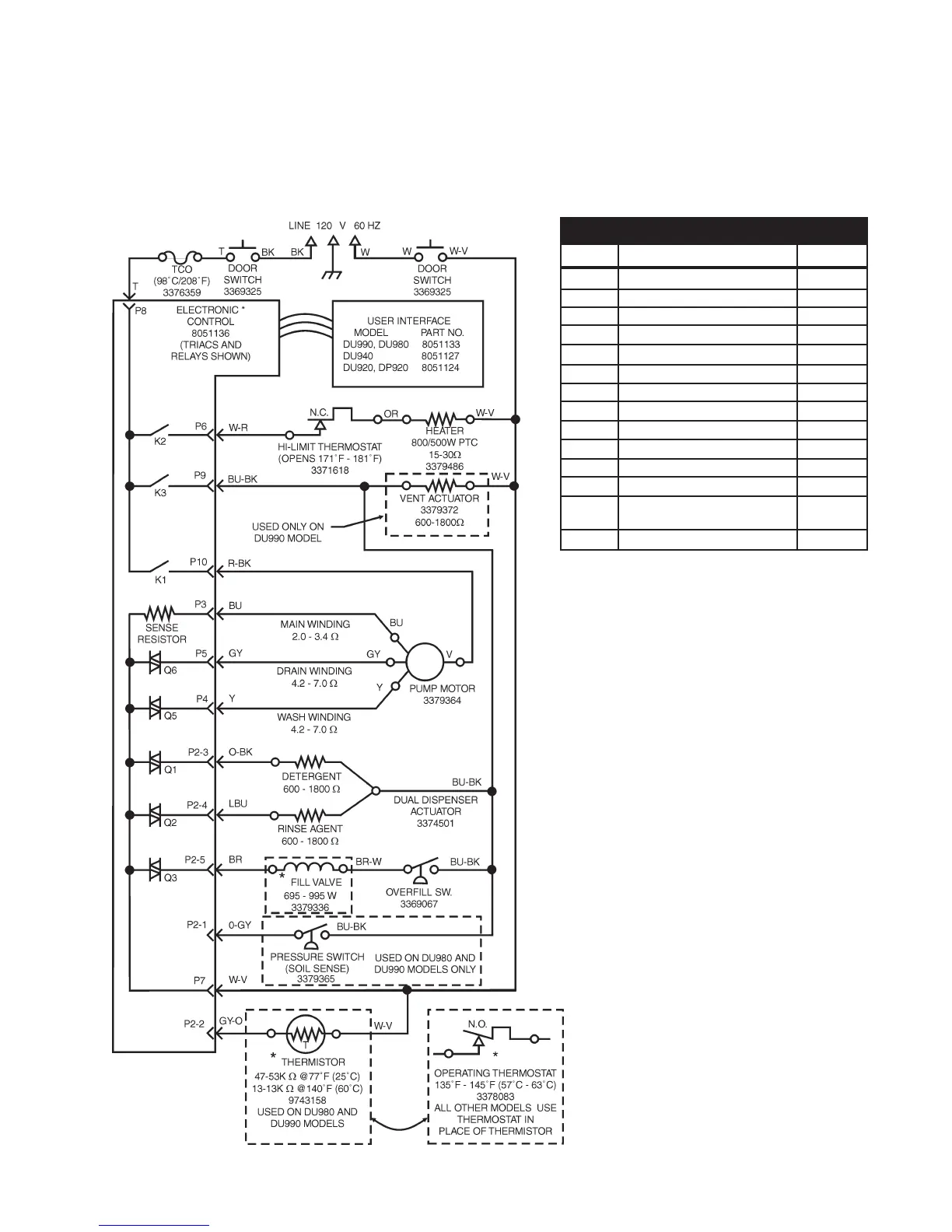

WIRING DIAGRAM
TECHNICAL INFORMATION
Model DU940SCG, DU960SCG, DU980SCG
CONNECTOR PIN OUT
Pin No. DESCRIPTION
P1
P2-1
P2-2
P2-3
P2-4
P2-5
P3
P4
P5
P6
P7
P8
P10
Ribbon Cable to User Interface
Pressure Switch (Soil Sense)
Thermistor/Thermostat
Detergent Dispenser
Rinse Agent Dispenser
Fill Valve
Motor Main Winding
Motor Auxiliary Winding - Wash
Motor Auxiliary Winding - Drain
Switch L1 to Heater
AC Neutral
L1
Switched L1 to Vent, Fill Valve,
Dual Dispenser & Pressure Sw.
Switched L1 to Motor Common
Wire Color
O - GY
GY - O
O - BK
LBU
BR
BU
Y
GY
W - R
W - V
T
R - BK
P9
BU - BK
To Next Page
