48
Dishwasher Dispenser Assembly
1. Assembly the slide and slide spring to the
detergent door actuator.
(Fig. 3-15)
2. Pass the detergent door latch lever
through the panel, making sure to turn the
hook of the latch toward the detergent
door. Snap the detergent door latch snap
onto the door latch lever.
(Fig. 3-14)
3. The door latch lever must pass through
the opening in the lower slide. Press the
actuator assembly into position until the
upper and lower tabs engage.
4. Insert the diaphragm and diaphragm
spring into the wet agent dispenser. Seat
the diaphragm flush with the surface of
the dispenser.
(Fig. 3-13)
5. Press the wet agent dispenser actuator
into position on the dispenser so the lock-
ing tabs engage.
6. Install the actuator slide into the wet agent
dispenser actuator.
7. Press the wet agent dispenser assembly
into position so the locking tabs engage
the wet agent cap opening. No tool is
needed for assembly.
(Fig. 3-12)
8. Install the seal on the wet agent cap.
9. Insert the wet agent cap. Turn it clock-
wise and close it.
10. Install the drawbar by referring to the de-
tails in Figure 3-11. Be sure the actuator
slide is positioned against the wet agent
dispenser. Align the drawbar holes over
the locking tabs. Look behind the draw
bar and make sure to engage the locking
tabs with their respective locating holes.
Press the drawbar into position and slide
it upward behind the locking tab ears.
11. Install the drawbar spring and snap the
drip cover into place.
(Fig. 3-10)

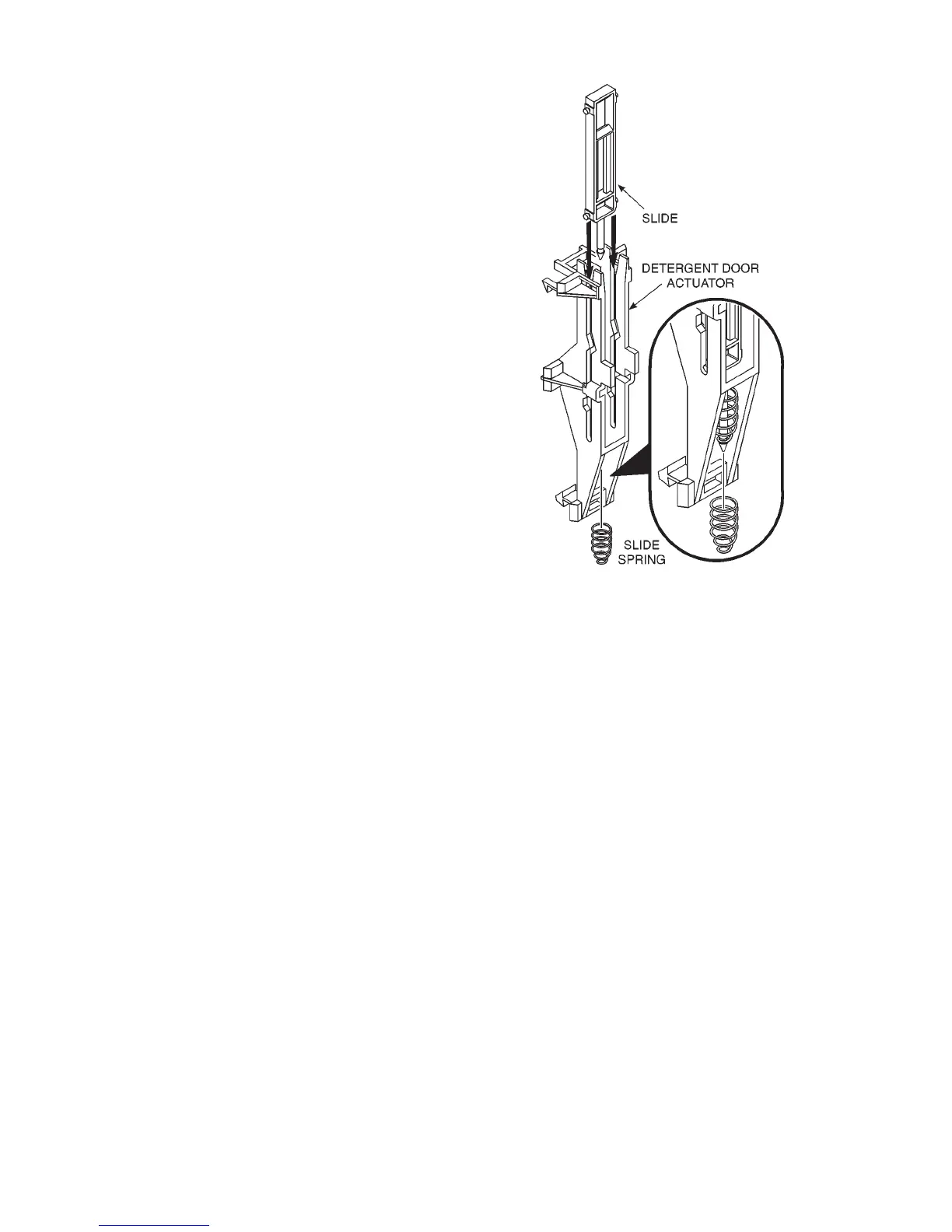

Fig. 3-15
